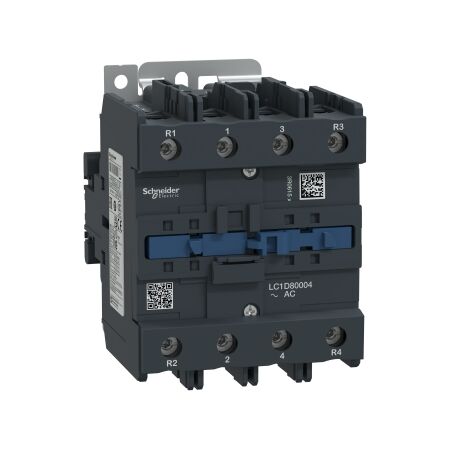

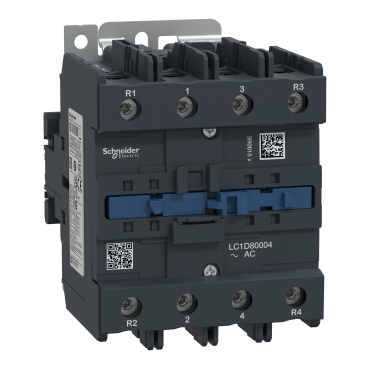

4P Contactor 125A AC-1 | 240VAC Coil | Robust Design for Heavy-Duty Use | by Clipsal
The 4P Contactor 125A AC-1 is designed for versatile switching applications, featuring a 240VAC coil voltage and a robust design for heavy-duty use. Ideal for industrial motor control and lighting in commercial buildings, this contactor ensures reliable performance for both resistive and inductive loads, making it a perfect choice for automation panels and HVAC systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 4P Contactor 125A AC-1 | 240VAC Coil | Robust Design for Heavy-Duty Use | by Clipsal
Brand: Clipsal
SKU: SCHLC1D80004U5
Alternatively Known As: 4 Pole Contactor, 125A Contactor, 240V Coil Contactor, Industrial Contactor, Clipsal LC1D80004U5
Technical Specifications
- Number of Poles: 4
- Rated Operational Current (AC-1): 125A
- Coil Voltage: 240VAC 50/60Hz
- Utilization Category: AC-1 (resistive loads)
- Conforms to IEC 60947-4-1
- Mechanical endurance: 10 million operations
- Electrical endurance: 1 million operations (AC-1)
- Mounting: DIN rail or screw mounting
- Auxiliary contacts: Optional
- Dimensions (H x L x W): 160mm x 140mm x 105mm
- Weight: 1.5 kg
Key Features
- 4 pole contactor for versatile switching applications
- Rated operational current: 125A (AC-1)
- 240VAC coil voltage for standard control circuits
- Robust and reliable design for heavy-duty use
- Suitable for both resistive and inductive loads
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with local electrical regulations and standards.
Applications
- Industrial motor control
- Lighting control in commercial buildings
- HVAC systems
- Switching of resistive and inductive loads
- Automation panels
Standards & Compliance
- Complies with AS/NZS 60947 for low-voltage switchgear and controlgear
Environmental Benefits
- Enables efficient energy management in industrial and commercial installations
- Supports automation for reduced manual intervention and energy waste
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal 4P Contactor 125A AC-1 240VAC Coil (SCHLC1D80004U5) is available for immediate purchase. Ideal for industrial and commercial electrical control applications.
