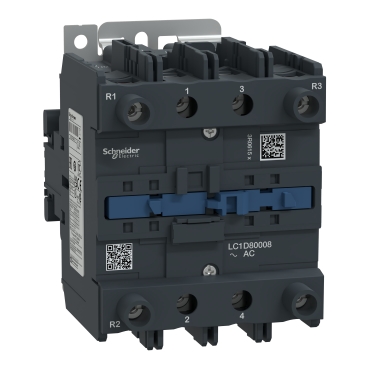

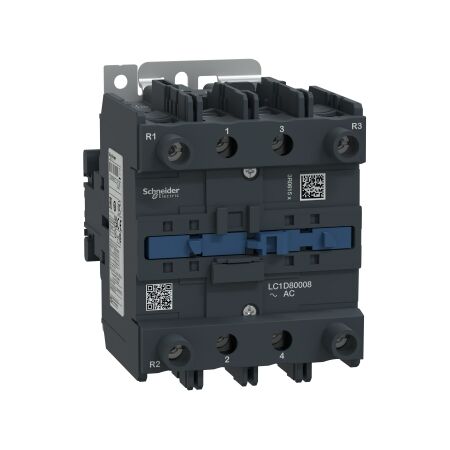

4P Contactor 125A AC-1 | 2NO 2NC Auxiliary Contacts | 48V Coil | by Clipsal
The 4P Contactor 125A AC-1 is designed for reliable switching in industrial applications, featuring 2 normally open and 2 normally closed auxiliary contacts. With a robust design and a coil voltage of 48V AC, it's perfect for motor control, lighting, and HVAC systems, ensuring efficient energy management and compliance with safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 4P Contactor 125A AC-1 | 2NO 2NC Auxiliary Contacts | 48V Coil | by Clipsal
Brand: Clipsal
SKU: SCHLC1D80008E7
Alternatively Known As: 4 pole contactor, 125A contactor, Clipsal contactor 4P, industrial contactor, SCHLC1D80008E7
Technical Specifications
- Number of Poles: 4
- Rated Operational Current (AC-1): 125A
- Auxiliary Contacts: 2NO + 2NC
- Coil Voltage: 48V AC
- Frequency: 50/60Hz
- Utilization Category: AC-1
- Conforms to IEC 60947-4-1
- Mounting: DIN rail or panel mount
- Operating Temperature: -5°C to +60°C
- Dimensions (H x L x W): 160mm x 140mm x 105mm
- Weight: 1.5 kg
Key Features
- 4 pole contactor for reliable switching
- Rated operational current: 125A (AC-1)
- 2 Normally Open (NO) and 2 Normally Closed (NC) auxiliary contacts
- Coil voltage: 48V AC
- Robust design for heavy-duty applications
- Suitable for both resistive and inductive loads
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with local electrical regulations and standards.
Applications
- Industrial motor control
- Lighting control in commercial buildings
- Switching of resistive and inductive loads
- HVAC systems
- Power distribution panels
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enables efficient energy management in industrial and commercial installations
- Durable construction reduces replacement frequency and waste
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
Available for immediate purchase. Ideal for industrial and commercial electrical control applications.
