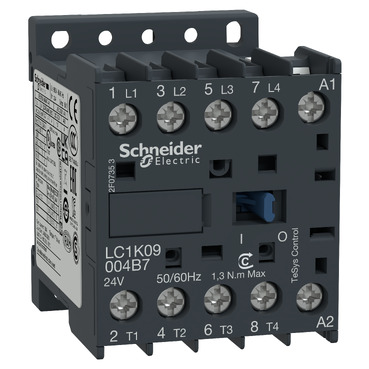

4P Contactor 20A AC1 24VAC | Compact Design | Long Electrical Life | by Clipsal
The 4P Contactor 20A AC1 24VAC is designed for versatile switching applications, featuring a compact design and a long electrical life of up to 1,000,000 operations. Ideal for lighting control in commercial and industrial settings, this reliable contactor ensures efficient power handling and compatibility with control circuits, making it perfect for HVAC systems and automation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 4P Contactor 20A AC1 24VAC | Compact Design | Long Electrical Life | by Clipsal
Brand: Clipsal
SKU: SCHLC1K09004B7
Alternatively Known As: 4 pole contactor, 20A contactor, 24VAC contactor, Clipsal contactor, SCHLC1K09004B7, lighting contactor, AC contactor
Technical Specifications
- Number of Poles: 4
- Rated Operational Current (AC1): 20A
- Coil Voltage: 24VAC
- Frequency: 50/60Hz
- Utilization Category: AC1
- Electrical Life: 1,000,000 operations
- Mechanical Life: 10,000,000 operations
- Mounting: DIN rail
- Ambient Temperature: -5°C to +60°C
- Standards: IEC 60947-4-1
- Dimensions (H x L x W): 80mm x 85mm x 45mm
- Weight: 0.35 kg
Key Features
- 4-pole contactor for versatile switching applications
- 20A AC1 rated current for reliable power handling
- 24VAC coil voltage for control circuit compatibility
- Compact design for easy panel integration
- Long electrical and mechanical life
- Low power consumption coil
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with local wiring rules and standards.
Applications
- Lighting control in commercial and industrial buildings
- HVAC systems
- Motor control circuits
- Power distribution panels
- Automation systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient coil reduces power consumption
- Durable design minimizes replacement frequency and waste
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal 4P Contactor 20A AC1 24VAC (SCHLC1K09004B7) is available for immediate purchase. Ideal for commercial and industrial power switching applications.
