Trade Discount 33%

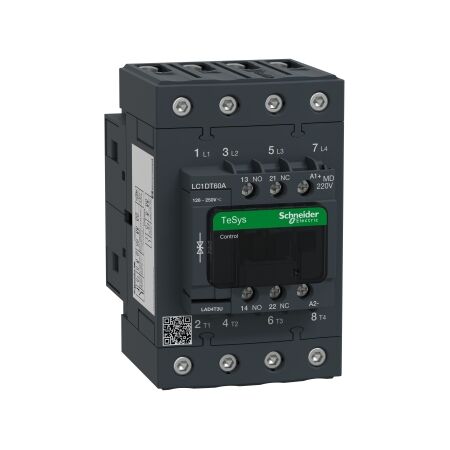

4P Contactor 60A | 0-440V AC | 220V DC Coil | IP20 by Clipsal
4P contactor with 60A operational current and 0-440V AC range—ideal for industrial motor control and commercial HVAC systems. Built for durability with 10 million mechanical cycles and IP20 protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: TeSys D, Contactor, TeSys Deca, 4P(4 NO), AC-1, 0 to 440V, 60A, 220VDC standard coil
Brand: Clipsal
SKU: LC1DT60AMD
Alternatively Known As: TeSys Deca Contactor, 4P Contactor, AC-1 Contactor
Technical Specifications
- Rated operational voltage: <= 690V AC, <= 300V DC
- Mechanical durability: 10 million cycles
- Electrical durability: 0.7 million cycles at 60A AC-1
- Insulation resistance: > 10 MOhm for signalling circuit
- IP degree of protection: IP20
- Rated breaking capacity: 800A at 440V
- Control circuit voltage: 220V DC
- Dimensions (H x L x W): 122mm x 120mm x 70mm
- Weight: 1.165 kg
Key Features
- 4 poles with 4 normally open contacts.
- Rated operational current of 60A at 440V AC.
- Built-in bidirectional peak limiting diode suppressor.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Motor control, automation systems
- Commercial: HVAC systems, machinery control
Standards & Compliance
- Complies with AS/NZS standards for electrical equipment.
Environmental Benefits
- Complies with environmental regulations and standards.
Warranty Information
18 months warranty against manufacturing defects.
Available Now
The Clipsal TeSys D Contactor is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable motor control.
