4P Electrical Receptacle 300A | IP55 Rated | Quick Release & Flameproof Design | Ausproof
The 4P electrical receptacle with a 300A current rating and IP55 ingress protection is ideal for mining and tunnelling applications. Built for hazardous environments, it features quick release and flameproof design for enhanced safety and reliability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

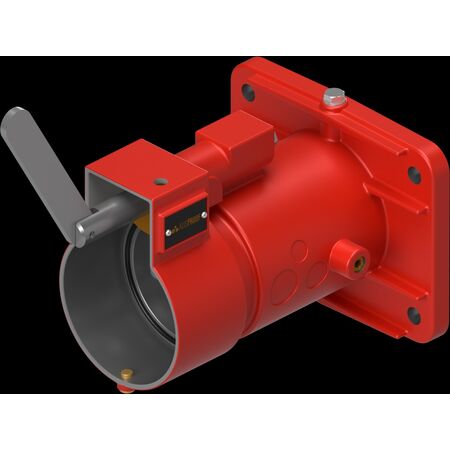

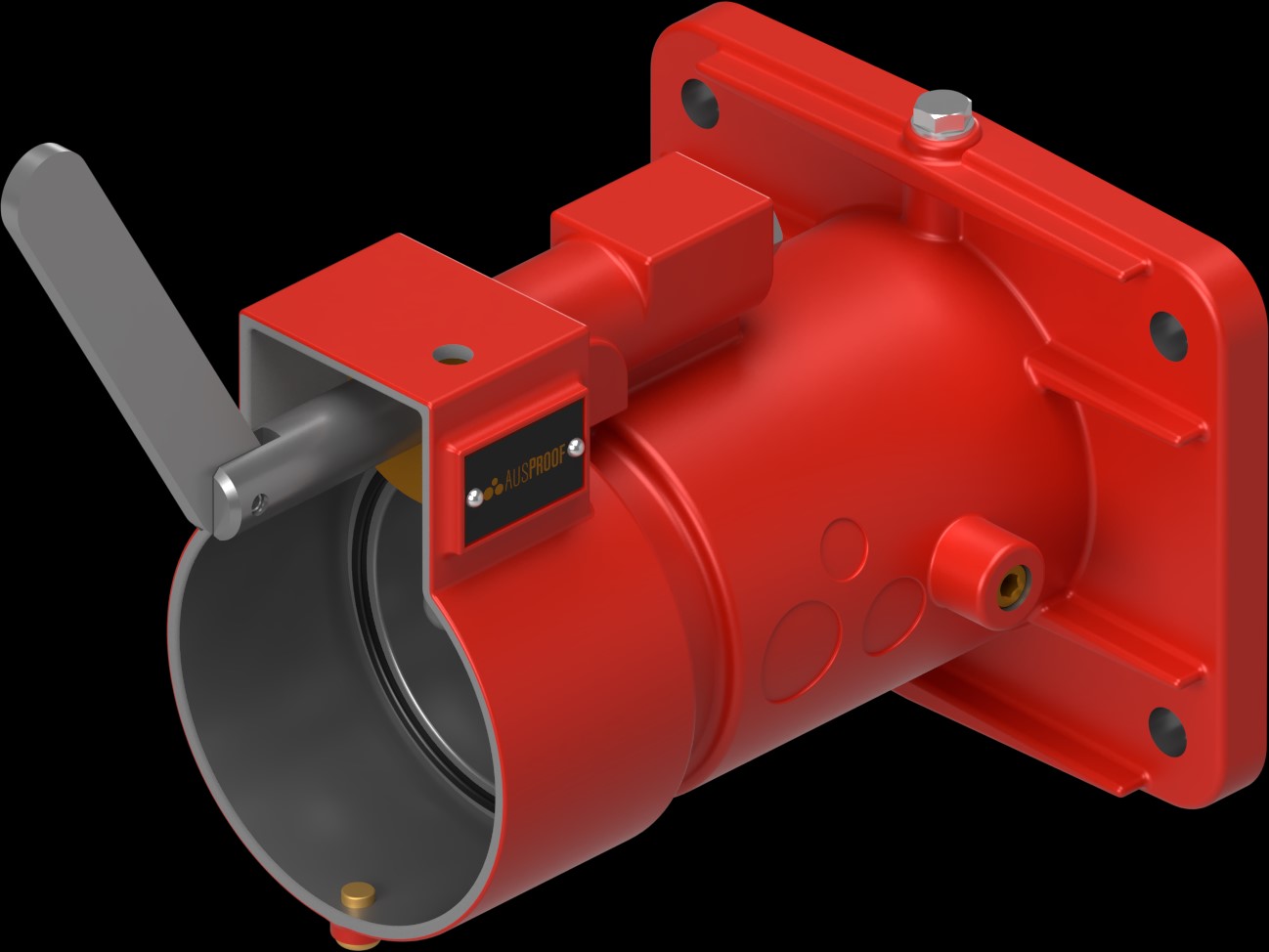

Product Name/Title: PL 3300V 300A 4P RECEP Red Body Kit
Brand: Ausproof
SKU: RS1910
Alternatively Known As: PL Range 300A 4 Pin Receptacle, Ex Certified Industrial Receptacle, Flameproof Electrical Receptacle
Technical Specifications
- Voltage Range: 660V to 3300V
- Current Rating: 300A to 425A
- Material: Stainless Steel
- Ingress Protection: IP55
- Through Fault Current (Phase): 2 tests of 25.0kA for 0.2 seconds
- Through Fault Current (Earth): 2 tests of 8.0kA for 0.2 seconds
- AC High Voltage Withstand (Phase): 8.6kV for one minute
- AC High Voltage Withstand (Pilot): 1.0kV for one minute
- Temperature Rise: Rated for 300A and 425A
- Compliance: AS/NZS 1299, IEC 60079-0, IEC 60079-1
- Dimensions (H x L x W): 300mm x 150mm x 200mm
- Weight: 10.7 kg
Key Features
- Quick Release
- Single piece contacts to prevent hot joints
- Easy termination
- Easy flameproof repair
- Full solid earth connectivity throughout product
- Full phase to phase segregation with earth
- Lightest Ex product on the market
- Silicone Protection Cover
- Stainless steel Hanging Plate for Back-to-Back (B2B) receptacles
Professional Installation Requirements
- Professional installation by qualified electricians trained in hazardous area electrical equipment is required to ensure safety and compliance.
Applications
- Mining
- Tunnelling
- Commercial applications
- Group 1 hazardous environments
Standards & Compliance
- Complies with AS/NZS 1299 – Electrical Equipment for Explosive Atmospheres
Environmental Benefits
- Durable stainless steel construction reduces need for frequent replacements.
- Flameproof design enhances safety, reducing risk of environmental hazards.
Warranty Information
Warranty details available upon request from Ausproof, typically covering manufacturing defects.
Available Now
The Ausproof PL 3300V 300A 4P Receptacle Red Body Kit is available now for immediate purchase. Ideal for mining, tunnelling, and hazardous commercial environments.
