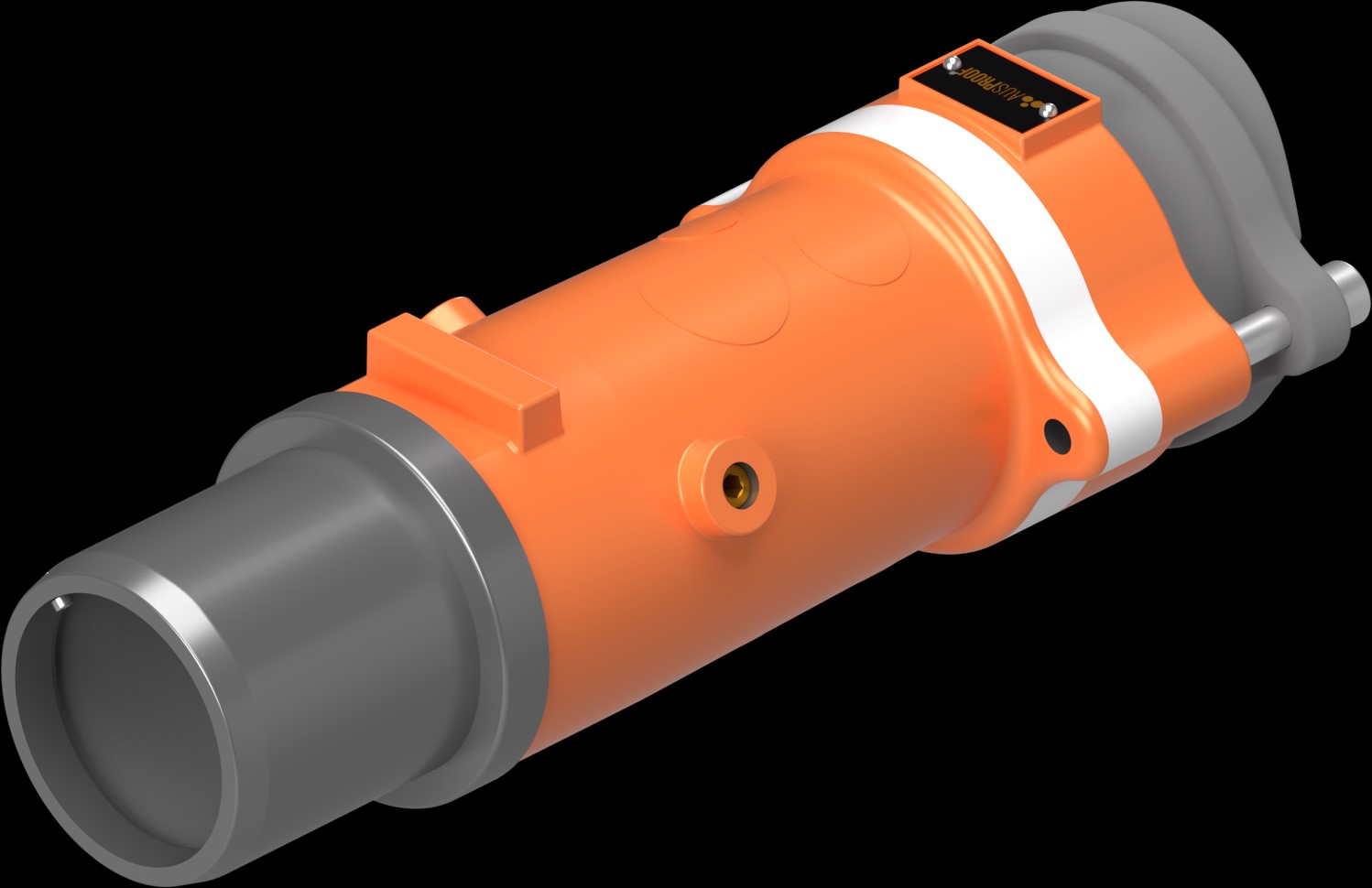

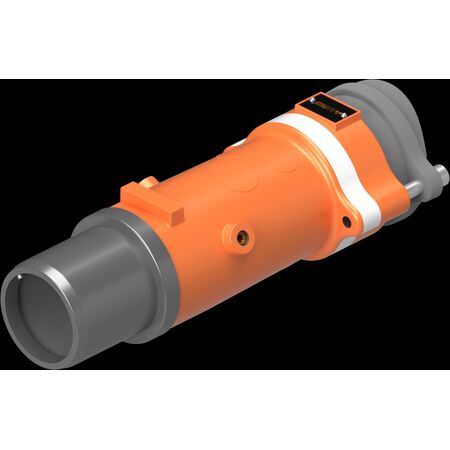

4P Flameproof Electrical Plug | 660V to 3300V | 425A Current Rating | IP55 Ingress Protection by Ausproof

BRAND: Ausproof

SKU: RS1760

$451.00 List price: $560.10

+ −

30 Days Return Delivery Options

This 4P flameproof electrical plug is rated for 660V to 3300V and 425A, making it ideal for mining and hazardous commercial applications. Built for safety and compliance, it features quick release and durable stainless steel construction for long-lasting performance.

Description

Product Name/Title: PL 660V 425A 4P Plug Orange wW Body Kit

Brand: Ausproof

SKU: RS1760

Alternatively Known As: PL Range Plug, Ex-certified 4 Pin Plug, Flameproof Electrical Plug, Mining Plug 425A, Hazardous Area Plug

Technical Specifications

Voltage: 660 to 3300V
Current Rating: 425A
Material: Stainless Steel
Ingress Protection: IP55
Through Fault Current (Phase): 2 Tests of 25.0kA for 0.2 seconds
Through Fault Current (Earth): 2 Tests of 8.0kA for 0.2 seconds
AC HV Withstand (Phase): 8.6kV for one minute
AC HV Withstand (Pilot): 1.0kV for one minute
Temperature Rise: Rated for 300A and 425A
Compliance: AS/NZS 1299, IEC 60079-0, IEC 60079-1
Dimensions (H x L x W): 150mm x 300mm x 200mm
Weight: 9.0 kg

Key Features

Quick Release
Single piece contacts to prevent hot joints
Easy termination
Easy flameproof repair
Full solid earth connectivity throughout product
Full phase to phase segregation with earth
Lightest Ex product on the market
Silicone Protection Cover
Stainless steel Hanging Plate for Back-to-Back (B2B) receptacles

Professional Installation Requirements

Professional installation by qualified personnel trained in hazardous area electrical equipment is required to ensure safety and compliance.

Applications

Mining
Tunnelling
Commercial applications
Group 1 hazardous environments

Standards & Compliance

Complies with AS/NZS 1299 – Electrical Equipment for Explosive Atmospheres

Environmental Benefits

Durable stainless steel construction reduces waste by extending product life
Easy flameproof repair reduces need for full replacements, minimizing material waste

Warranty Information

Warranty details available upon request from Ausproof; typically includes coverage against manufacturing defects.

Available Now

The Ausproof PL 660V 425A 4P Plug Orange wW Body Kit is available now for immediate purchase. Ideal for mining, tunnelling, and hazardous commercial applications.
