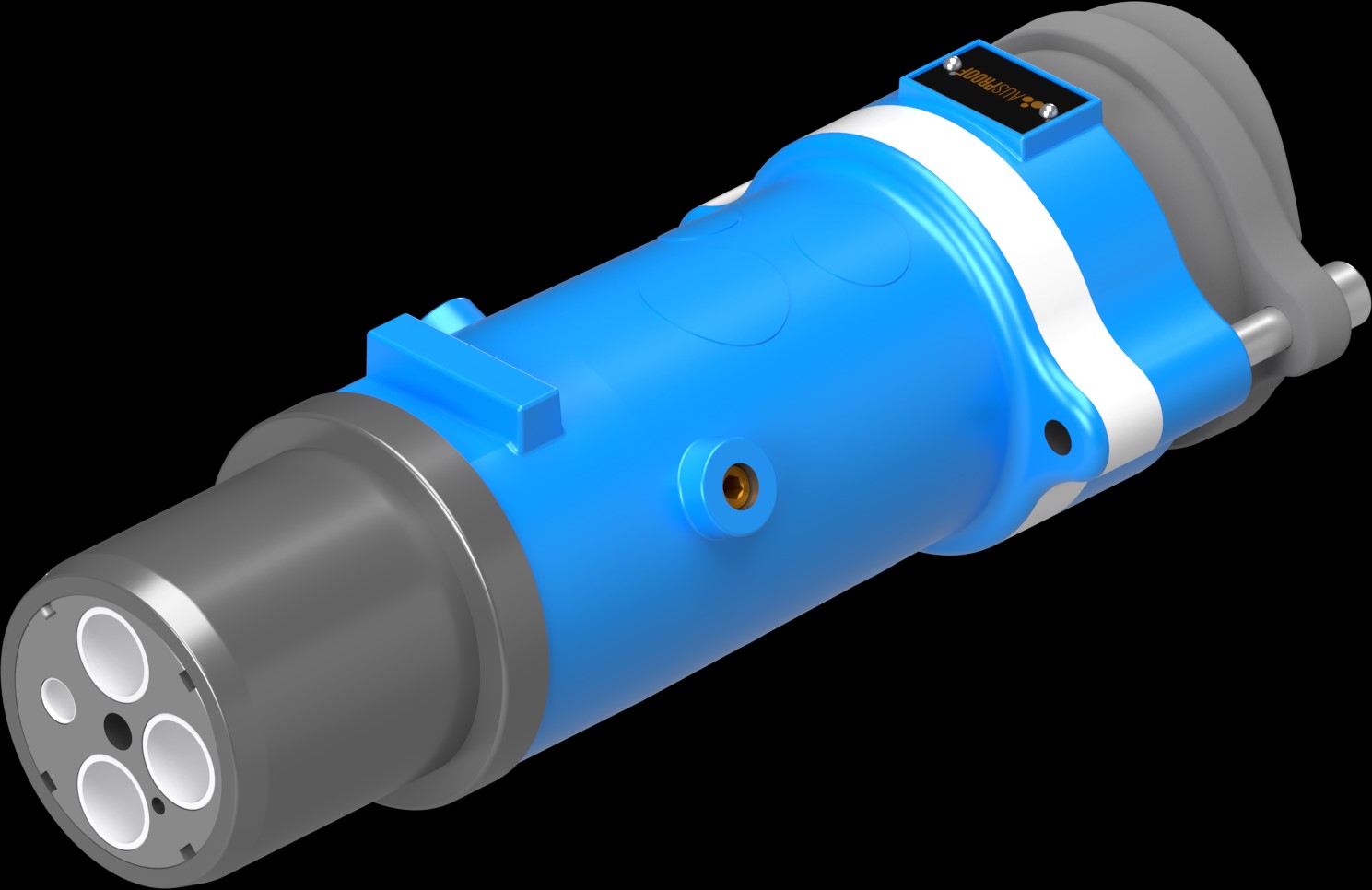

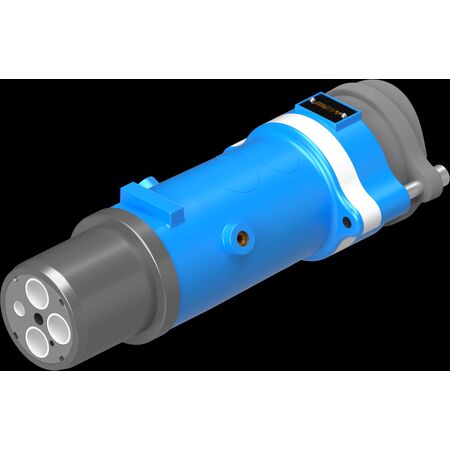

4P Flameproof Industrial Plug | 425A Current Rating | IP55 Ingress Protection | Stainless Steel by Ausproof
The 4P flameproof industrial plug with a 425A current rating and IP55 ingress protection is ideal for mining and tunnelling applications. Built for hazardous environments, it features quick release and easy termination for safe and efficient electrical connections.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: PL 1100V 425A 4P Plug (180) 25-C 30-35-G (275.1)
Brand: Ausproof
SKU: RS2179
Alternatively Known As: PL Range Plug, Ex-certified 4 Pin Plug, Flameproof Industrial Plug, Mining Electrical Plug
Technical Specifications
- Operating Voltage: 660V to 3300V
- Current Rating: 300A to 425A
- Material: Stainless Steel
- Ingress Protection: IP55
- Through Fault Current (Phase): 2 tests of 25.0kA for 0.2 seconds
- Through Fault Current (Earth): 2 tests of 8.0kA for 0.2 seconds
- AC HV Withstand (Phase): 8.6kV for one minute
- AC HV Withstand (Pilot): 1.0kV for one minute
- Temperature Rise: Rated for 300A and 425A
- Weight: 9.0 kg
- Compliance: AS/NZS 1299, IEC 60079-0, IEC 60079-1
- Dimensions (H x L x W): 275mm x 350mm x 180mm
- Weight: 9.0 kg
Key Features
- Quick Release
- Single piece contacts to prevent hot joints
- Easy termination
- Easy flameproof repair
- Full solid earth connectivity throughout product
- Full phase to phase segregation with earth
- Lightest Ex product on the market
- Silicone Protection Cover
- Stainless steel Hanging Plate for Back-to-Back (B2B) receptacles
Professional Installation Requirements
- Professional installation by qualified personnel trained in hazardous area electrical equipment is required to ensure safety and compliance.
Applications
- Mining
- Tunnelling
- Commercial applications
- Group 1 hazardous environments
Standards & Compliance
- Complies with AS/NZS 1299 - Electrical Equipment for Explosive Atmospheres
Environmental Benefits
- Durable stainless steel construction reduces waste and replacement frequency
- Flameproof repairable design minimizes full product replacement
- Lightweight design reduces material usage
Warranty Information
Warranty details available upon request from Ausproof.
Available Now
The Ausproof PL 1100V 425A 4P Plug is available now for immediate purchase. Ideal for mining, tunnelling, and hazardous commercial applications requiring robust, flameproof electrical connections.
