PL 660V 425A 4P Plug (270) 16-C 30-35-G (275.1)

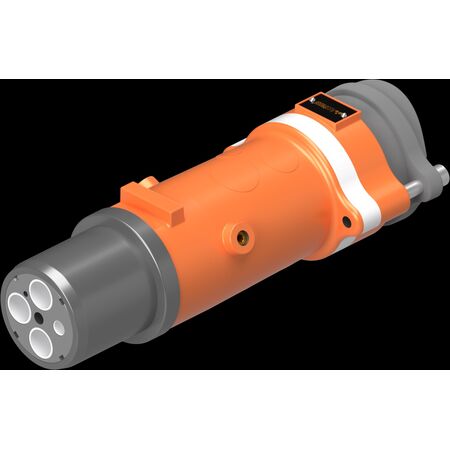

4P Flameproof Industrial Plug | 660V to 3300V | 425A Current Rating | IP55 Ingress Protection by Ausproof

BRAND: Ausproof

SKU: RS2170

$1,482.30 List price: $1,841.00

+ −

30 Days Return Delivery Options

The 4P flameproof industrial plug operates at 660V to 3300V with a robust 425A current rating—ideal for mining and hazardous environments. Built for durability with stainless steel construction, it features quick release and easy termination for efficient installation.

Description

Product Name/Title: PL 660V 425A 4P Plug (270) 16-C 30-35-G (275.1)

Brand: Ausproof

SKU: RS2170

Alternatively Known As: PL Range Plug, Ex-certified 4 Pin Plug, Flameproof Industrial Plug, Mining Plug 425A, Stainless Steel Industrial Plug

Technical Specifications

Operating Voltage: 660V to 3300V
Current Rating: 425A
Material: Stainless Steel
Ingress Protection: IP55
Through Fault Current (Phase): 2 tests of 25.0kA for 0.2 seconds
Through Fault Current (Earth): 2 tests of 8.0kA for 0.2 seconds
AC High Voltage Withstand (Phase): 8.6kV for one minute
AC High Voltage Withstand (Pilot): 1.0kV for one minute
Temperature Rise: Rated for 300A and 425A
Compliance: AS/NZS 1299, IEC 60079-0, IEC 60079-1
Dimensions (H x L x W): 150mm x 250mm x 200mm
Weight: 9.0 kg

Key Features

Quick Release
Single piece contacts to prevent hot joints
Easy termination
Easy flameproof repair
Full solid earth connectivity throughout product
Full phase to phase segregation with earth
Lightest Ex product on the market
Silicone Protection Cover
Stainless steel Hanging Plate for Back-to-Back (B2B) receptacles

Professional Installation Requirements

Installation must be performed by a qualified electrician experienced with Ex-certified equipment and hazardous area installations.

Applications

Mining
Tunnelling
Commercial applications
Group 1 hazardous environments

Standards & Compliance

Complies with AS/NZS 1299 for flameproof enclosures and electrical equipment in hazardous areas

Environmental Benefits

Durable stainless steel construction reduces need for frequent replacements.
Flameproof repairable design minimizes waste by allowing on-site body casting replacement.

Warranty Information

Warranty details available upon request from Ausproof; typically includes coverage against manufacturing defects.

Available Now

The Ausproof PL 660V 425A 4P Plug is available now for immediate purchase. Ideal for mining, tunnelling, and hazardous commercial applications requiring robust and flameproof electrical connections.
