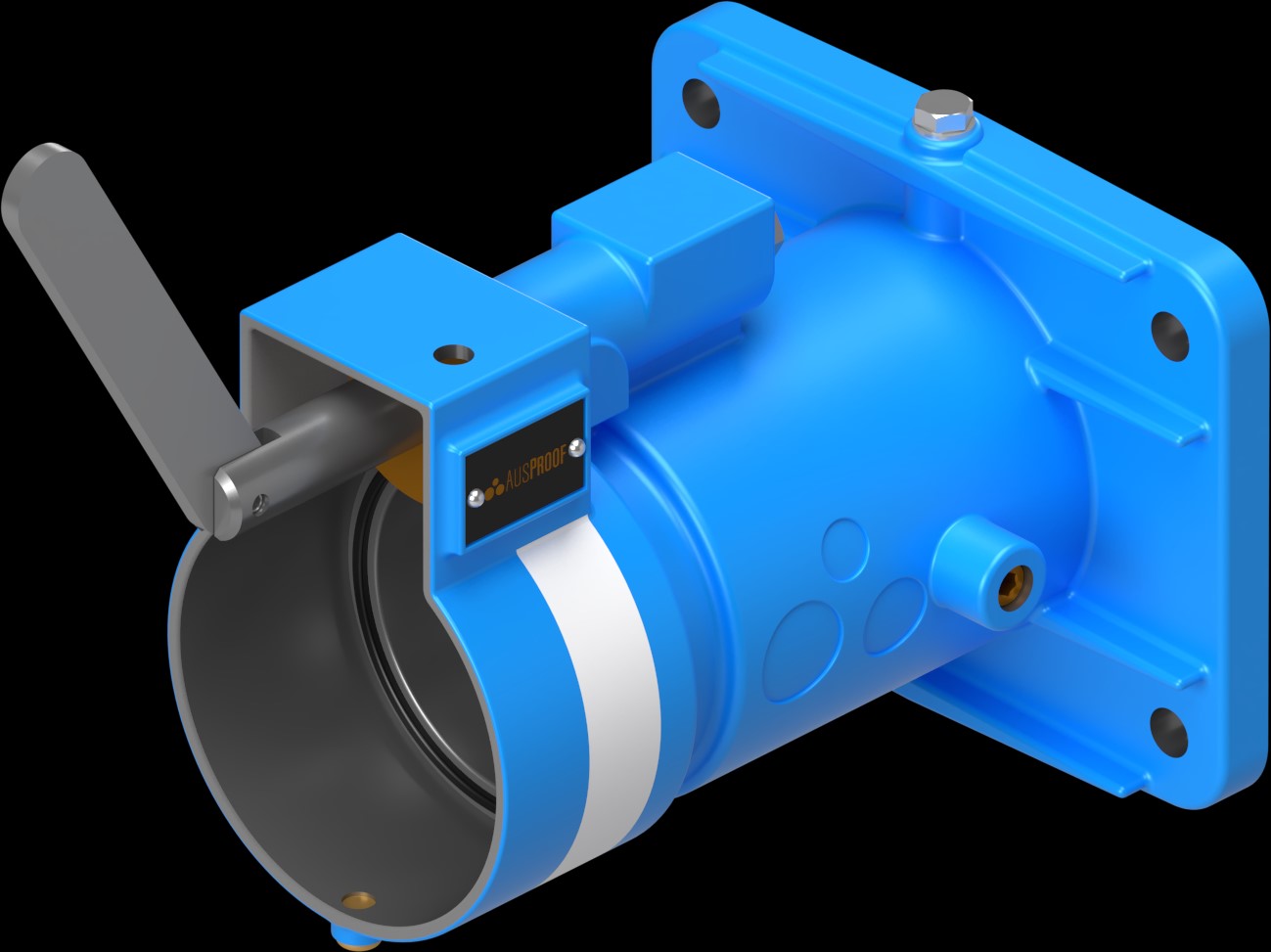

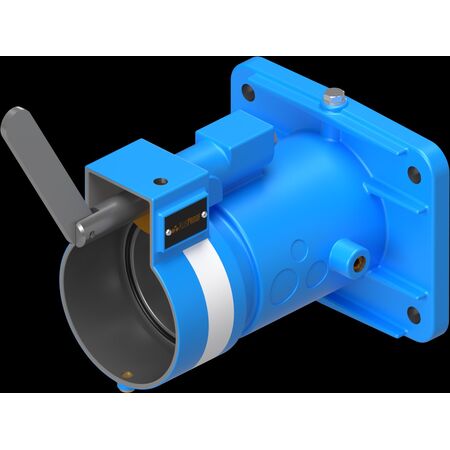

4P Flameproof Receptacle 425A | IP55 Ingress Protection | Quick Release & Stainless Steel | Ausproof

BRAND: Ausproof

SKU: RS1907

$863.50 List price: $1,072.50

+ −

30 Days Return Delivery Options

4P flameproof receptacle with 425A current rating and IP55 ingress protection—ideal for mining and hazardous environments. Built for commercial applications, featuring quick release and durable stainless steel construction for reliable performance.

Description

Product Name/Title: PL 1100V 425A 4P RECEP Blue wW Body Kit

Brand: Ausproof

SKU: RS1907

Alternatively Known As: PL Range Receptacle, Ex-certified 4 Pin Receptacle, Flameproof Industrial Receptacle, Mining Grade Electrical Receptacle

Technical Specifications

Voltage Range: 660V to 3300V
Current Rating: 300A to 425A
Material: Stainless Steel
Ingress Protection: IP55
Through Fault Current (Phase): 2 tests of 25.0kA for 0.2 seconds
Through Fault Current (Earth): 2 tests of 8.0kA for 0.2 seconds
AC HV Withstand (Phase): 8.6kV for one minute
AC HV Withstand (Pilot): 1.0kV for one minute
Temperature Rise: Rated for 300A and 425A
Weight: 10.7 kg for receptacle
Dimensions (H x L x W): 300mm x 150mm x 200mm
Weight: 10.7 kg

Key Features

Quick Release
Single piece contacts to prevent hot joints
Easy termination
Easy flameproof repair
Full solid earth connectivity throughout product
Full phase to phase segregation with earth
Lightest Ex product on the market
Silicone Protection Cover
Stainless steel Hanging Plate for Back-to-Back (B2B) receptacles

Professional Installation Requirements

Professional installation by qualified electricians trained in hazardous area electrical equipment is required to ensure safety and compliance.

Applications

Mining
Tunnelling
Commercial applications
Group 1 hazardous environments

Standards & Compliance

Complies with AS/NZS 1299 – Electrical Equipment for Explosive Atmospheres

Environmental Benefits

Durable stainless steel construction reduces need for frequent replacements.
Flameproof repairable design minimizes waste by allowing on-site body casting replacement.

Warranty Information

Warranty details available upon request from Ausproof; typically includes coverage against manufacturing defects.

Available Now

The Ausproof PL 1100V 425A 4P Receptacle Blue wW Body Kit is available now for immediate purchase. Ideal for mining, tunnelling, and hazardous commercial applications requiring robust and flameproof electrical connections.
