4P Gland Bracket 300A | IP55 Rated | Quick Release & Stainless Steel | Ausproof
4P gland bracket rated for 300A with IP55 protection and quick release feature—ideal for mining and hazardous environments. Built for commercial applications, with durable stainless steel construction ensuring longevity and easy flameproof repairs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

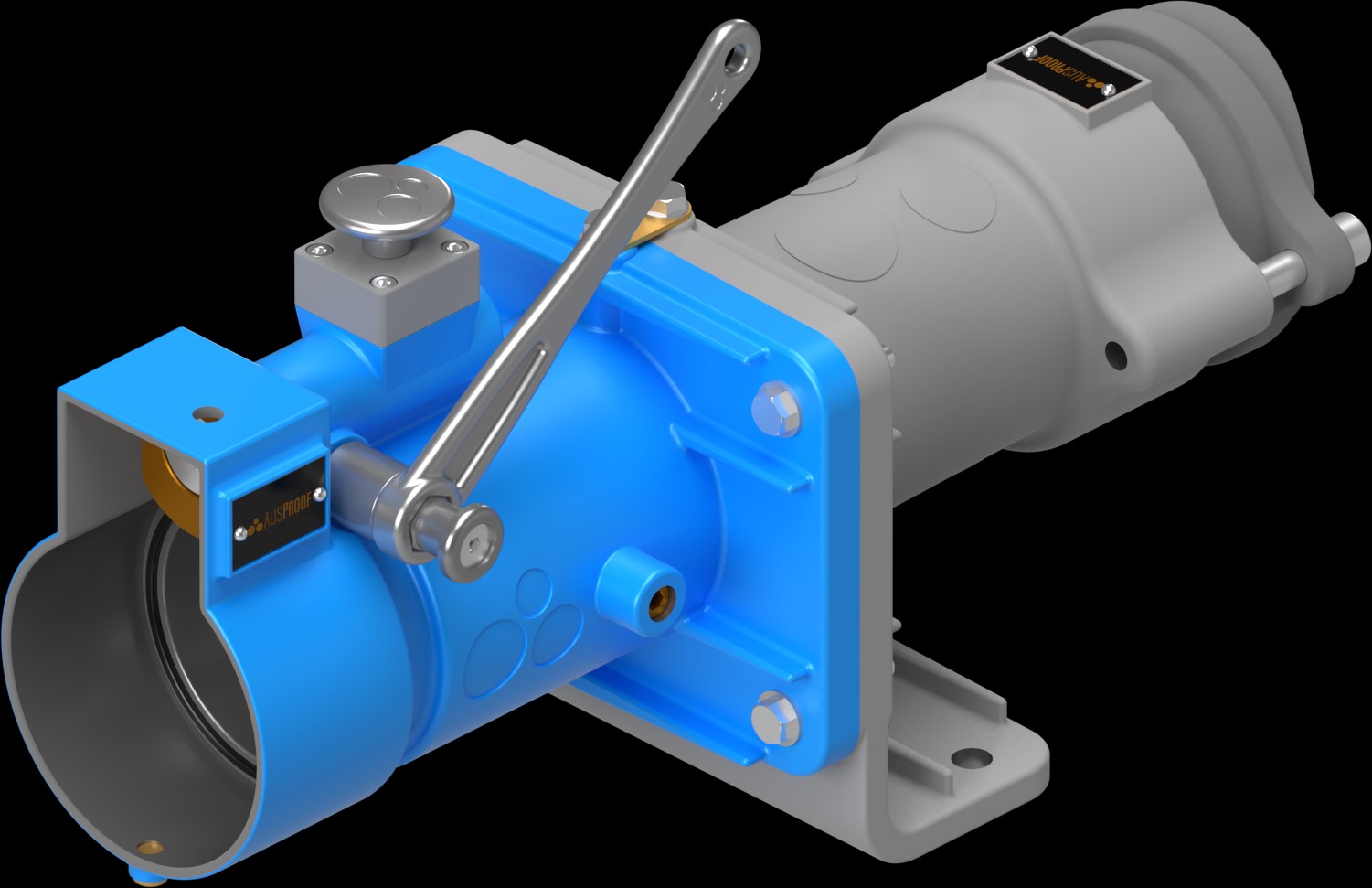

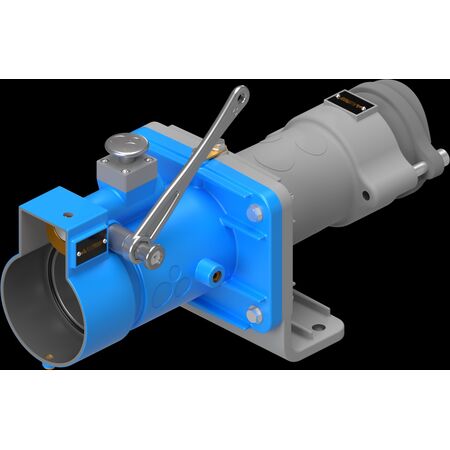

Product Name/Title: PL 1100V 300A 4P Gland Bracket (90) 70-C 50-55-G (241.1)
Brand: Ausproof
SKU: RS2542
Alternatively Known As: PL Range Gland Bracket, Ex-rated Gland Bracket, 4 Pin Gland Bracket, 300A Gland Bracket
Technical Specifications
- Voltage Range: 660V to 3300V
- Current Rating: 300A to 425A
- Material: Stainless Steel
- Ingress Protection: IP55
- Through Fault Current (Phase): 2 tests of 25.0kA for 0.2 seconds
- Through Fault Current (Earth): 2 tests of 8.0kA for 0.2 seconds
- AC HV Withstand (Phase): 8.6kV for one minute
- AC HV Withstand (Pilot): 1.0kV for one minute
- Temperature Rise: Rated for 300A and 425A
- Weight: 10.7 kg (Receptacle)
- Dimensions (H x L x W): 150mm x 250mm x 200mm
- Weight: 10.7 kg
Key Features
- Quick Release
- Single piece contacts to prevent hot joints
- Easy termination
- Easy flameproof repair
- Full solid earth connectivity throughout product
- Full phase to phase segregation with earth
- Lightest Ex product on the market
- Silicone Protection Cover
- Stainless steel Hanging Plate for Back-to-Back (B2B) receptacles
Professional Installation Requirements
- Installation must be performed by a qualified electrician experienced with Ex-rated equipment and hazardous area installations.
Applications
- Mining
- Tunnelling
- Commercial applications
- Group 1 hazardous environments
Standards & Compliance
- Complies with AS/NZS 1299 – Electrical Equipment for Explosive Atmospheres
Environmental Benefits
- Durable stainless steel construction reduces need for frequent replacements.
- Flameproof repairable design minimizes waste by allowing on-site repairs.
Warranty Information
Standard manufacturer warranty applies. Please contact Ausproof for detailed warranty terms.
Available Now
The Ausproof PL 1100V 300A 4P Gland Bracket is available now for immediate purchase. Ideal for mining, tunnelling, and hazardous commercial applications.
