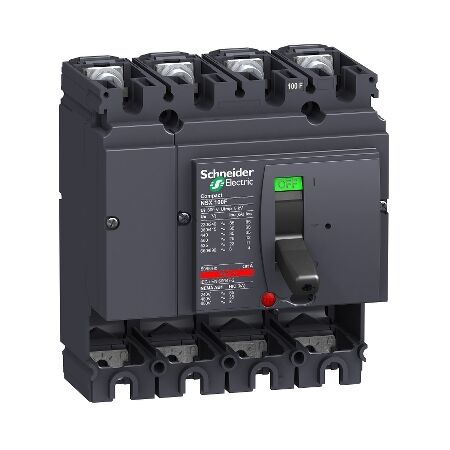

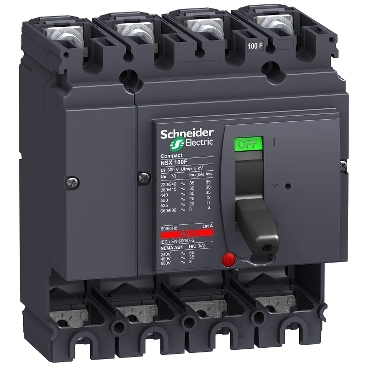

4P NSX100F Circuit Breaker Frame | 100A Rated Current | 36kA Breaking Capacity | by Clipsal
The 4P NSX100F Circuit Breaker Frame is designed for robust electrical distribution, featuring a rated current of 100A and a breaking capacity of 36kA at 415VAC. Ideal for commercial and industrial applications, this frame supports custom protection configurations by allowing the trip unit to be ordered separately, ensuring reliability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 4P NSX100F Circuit Breaker Frame | 100A Rated Current | 36kA Breaking Capacity | by Clipsal
Brand: Clipsal
SKU: SCHLV429008
Alternatively Known As: NSX100F 4 Pole Frame, 4P NSX100F Circuit Breaker, SCHLV429008, Schneider NSX100F Frame, 100A 4P MCCB Frame
Technical Specifications
- Product type: Circuit breaker basic frame
- Series: ComPact NSX100F
- Number of poles: 4
- Rated current: 100A
- Breaking capacity: 36kA at 415VAC 50/60 Hz
- Trip unit: Not included (to be ordered separately)
- Mounting: Fixed
- Standards: IEC 60947-2
- Dimensions (H x L x W): 161mm x 86mm x 140mm
- Weight: 2.5 kg
Key Features
- 4 pole (4P) circuit breaker basic frame
- ComPact NSX100F series
- Rated current: 100A
- Breaking capacity: 36kA at 415VAC 50/60 Hz
- Supplied without trip unit for custom protection configuration
- Robust and reliable design for demanding environments
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 and local regulations.
Applications
- Commercial and industrial electrical distribution panels
- Switchboards in factories, warehouses, and large buildings
- Main and sub-main circuit protection for power distribution
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Supports safe and efficient power distribution, reducing risk of electrical faults and downtime.
- Modular design allows for easy upgrades and maintenance, minimizing waste.
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal 4P NSX100F Without TRIP Unit C (SCHLV429008) is available for immediate purchase. Ideal for commercial and industrial switchboards requiring reliable circuit protection.
