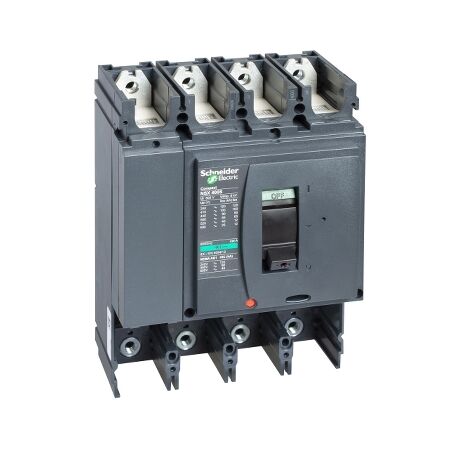

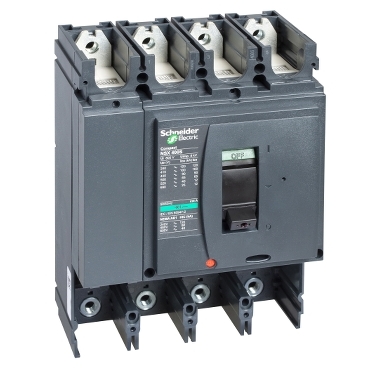

4P NSX400F Circuit Breaker Frame | Rated for 400A | Compatible with NSX Trip Units | by Clipsal
The 4P NSX400F Circuit Breaker Frame is designed for robust electrical distribution, rated for up to 400A and compatible with NSX trip units. Ideal for commercial and industrial applications, this frame ensures reliable circuit protection in demanding environments, making it perfect for switchboards and electrical panels.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 4P NSX400F Circuit Breaker Frame | Rated for 400A | Compatible with NSX Trip Units | by Clipsal
Brand: Clipsal
SKU: SCHLV432415
Alternatively Known As: NSX400F MCCB Frame, 4 Pole NSX400F, Schneider NSX400F Without Trip Unit, MCCB 400A Frame Only, NSX400F Circuit Breaker Shell
Technical Specifications
- Number of Poles: 4
- Frame Size: NSX400F
- Rated Current: Up to 400A (trip unit dependent)
- Breaking Capacity: Up to 50kA at 415V AC (with appropriate trip unit)
- Mounting: Fixed
- Trip Unit: Not included (compatible with NSX trip units)
- Standards: IEC 60947-2, AS/NZS 60947.2
- Terminal Type: Front connection
- Operating Voltage: 690V AC max
- Dimensions (H x L x W): 255mm x 110mm x 210mm
- Weight: 8.5 kg
Key Features
- 4-pole molded case circuit breaker frame
- Rated for up to 400A
- Compatible with NSX trip units (not included)
- Robust and reliable construction for demanding environments
- Easy integration into Schneider Electric/Clipsal panel systems
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 and local regulations.
Applications
- Commercial and industrial electrical distribution panels
- Main and sub-main circuit protection
- Switchboards in large buildings and infrastructure projects
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 60947.2 – Low-voltage switchgear and controlgear
Environmental Benefits
- Supports safe and efficient electrical distribution, reducing risk of electrical fires and system failures.
- Long service life reduces replacement frequency and associated waste.
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal 4P NSX400F Without TRIP Unit (SCHLV432415) is available for immediate purchase. Ideal for commercial and industrial switchboards requiring reliable circuit protection.
