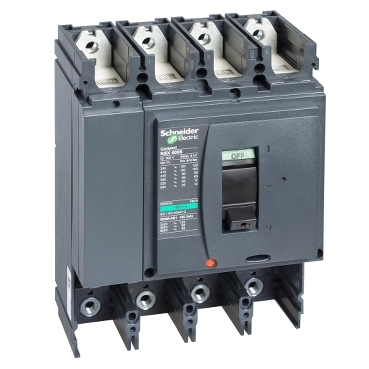

4P NSX400N MCCB | 400A Rated | High Breaking Capacity | Fixed Mounting | @Pack of 1 | by Clipsal
The 4P NSX400N MCCB is a robust molded case circuit breaker rated for up to 400A, designed for commercial and industrial electrical distribution. With a high breaking capacity of up to 50kA at 415V AC, it ensures enhanced safety and reliability. Ideal for main and sub-main switchboards, this unit is perfect for both retrofit and new installations, providing efficient energy management and circuit protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 4P NSX400N MCCB | 400A Rated | High Breaking Capacity | Fixed Mounting | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHLV432408
Alternatively Known As: NSX400N MCCB, 4 Pole NSX400N, Clipsal NSX400N 400A, Schneider NSX400N Circuit Breaker, SCHLV432408
Technical Specifications
- Type: Molded Case Circuit Breaker (MCCB)
- Number of Poles: 4
- Rated Current: Up to 400A (trip unit not included)
- Breaking Capacity: Up to 50kA at 415V AC
- Mounting: Fixed
- Standards: IEC 60947-2 compliant
- Trip Unit: Not included (to be ordered separately)
- Terminal Type: Front connection
- Operating Voltage: 690V AC max
- Dimensions (H x L x W): 325mm x 140mm x 210mm
- Weight: 8.5 kg
Key Features
- 4 pole (4P) molded case circuit breaker (MCCB)
- Rated for up to 400A
- Supplied without trip unit for custom protection configuration
- High breaking capacity for enhanced safety
- Robust and reliable Clipsal/Schneider Electric design
- Suitable for retrofit and new installations
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with local regulations and standards.
Applications
- Commercial and industrial electrical distribution panels
- Main and sub-main switchboards
- Protection of electrical circuits in large buildings
- Infrastructure and utility projects
Standards & Compliance
- Complies with AS/NZS 60947.2 for low-voltage switchgear and controlgear circuit breakers
Environmental Benefits
- Enables efficient energy management and circuit protection, reducing downtime and electrical waste.
- Designed for long service life, minimizing replacement frequency and associated environmental impact.
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal 4P NSX400N Without TRIP Unit C (SCHLV432408) is available for immediate purchase. Ideal for commercial and industrial electrical distribution applications.
