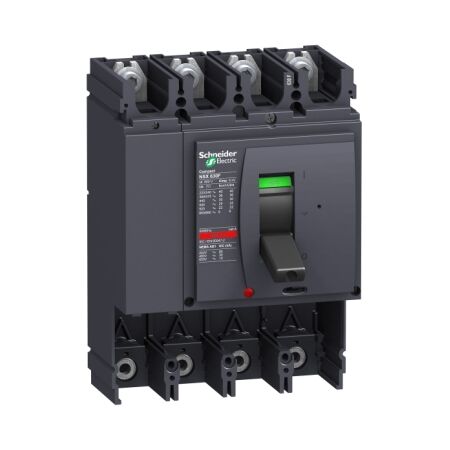

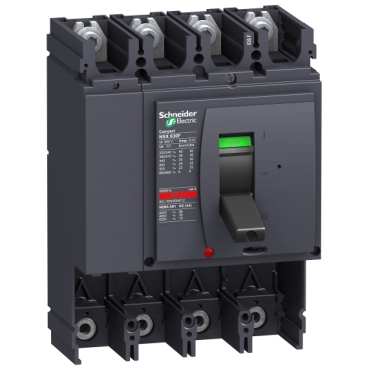

4P NSX630H Circuit Breaker Frame | 630A Rated Current | 70kA Breaking Capacity | by Clipsal
The 4P NSX630H Circuit Breaker Frame is designed for high-capacity electrical distribution, featuring a rated current of 630A and a breaking capacity of 70kA at 415VAC. Ideal for commercial and industrial applications, this robust frame allows for customizable protection configurations, ensuring reliability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 4P NSX630H Circuit Breaker Frame | 630A Rated Current | 70kA Breaking Capacity | by Clipsal
Brand: Clipsal
SKU: SCHLV432809
Alternatively Known As: NSX630H 4 Pole Circuit Breaker Frame, LV432809, Schneider NSX630H, 630A MCCB Frame, ComPact NSX630H Without Trip Unit
Technical Specifications
- Type: Circuit breaker basic frame (without trip unit)
- Series: ComPact NSX630H
- Number of Poles: 4
- Rated Current: 630A
- Breaking Capacity: 70kA at 415VAC 50/60 Hz
- Mounting: Fixed
- Standards: IEC 60947-2 compliant
- Trip Unit: Not included (to be ordered separately)
- Dimensions (H x L x W): 325mm x 140mm x 210mm
- Weight: 12 kg
Key Features
- 4 pole circuit breaker basic frame
- ComPact NSX630H series
- Rated current: 630A
- High breaking capacity: 70kA at 415VAC 50/60 Hz
- Supplied without trip unit for custom protection configuration
- Robust and reliable design for demanding environments
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 and local regulations.
Applications
- Commercial and industrial electrical distribution systems
- Main and sub-main switchboards
- Protection of electrical circuits in large buildings
- Infrastructure and utility installations
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Supports safe and efficient electrical distribution, reducing risk of electrical fires and system failures.
- Enables modular upgrades and maintenance, extending product lifecycle and reducing waste.
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal 4P NSX630H Without TRIP Unit C (SCHLV432809) is available for immediate purchase. Ideal for commercial and industrial switchboards requiring high-capacity, customizable circuit protection.
