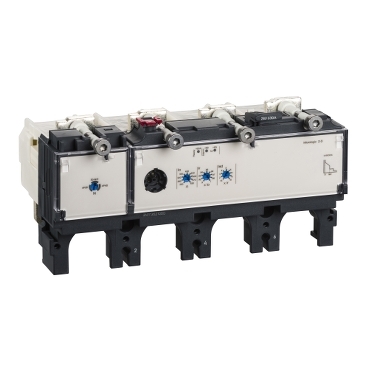

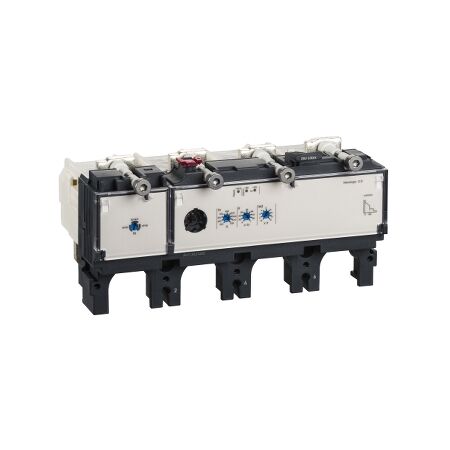

4P4T Micrologic 2.3 630A Trip Circuit Breaker | 50kA Breaking Capacity | IEC Compliant | @Pack of 1 | by Clipsal
The 4P4T Micrologic 2.3 630A Trip Circuit Breaker is designed for robust electrical protection in commercial and industrial settings. With a high breaking capacity of up to 50kA at 415V AC and an advanced Micrologic 2.3 electronic trip unit, it ensures reliable performance and safety. Ideal for main switchboards and large electrical installations, this circuit breaker meets IEC standards for enhanced compliance and safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 4P4T Micrologic 2.3 630A Trip Circuit Breaker | 50kA Breaking Capacity | IEC Compliant | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHLV432084
Alternatively Known As: 630A Micrologic Circuit Breaker, 4 Pole 4 Throw MCCB, LV432084, Schneider Micrologic 2.3 630A, 4P4T MCCB
Technical Specifications
- Rated current: 630A
- Number of poles: 4
- Trip unit: Micrologic 2.3 electronic
- Breaking capacity: Up to 50kA at 415V AC
- Voltage rating: 415V AC
- Mounting: Fixed
- Standards: IEC 60947-2 compliant
- Dimensions (H x L x W): 325mm x 160mm x 210mm
- Weight: 12 kg
Key Features
- 4 pole, 4 throw (4P4T) configuration for comprehensive circuit protection
- Micrologic 2.3 electronic trip unit for advanced protection and monitoring
- Rated current: 630A for high-capacity applications
- Robust design suitable for demanding environments
- High breaking capacity for enhanced safety
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 and local regulations.
Applications
- Commercial and industrial electrical distribution systems
- Main switchboards and sub-distribution boards
- Protection of large electrical installations and equipment
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Improves energy efficiency by reducing electrical faults and downtime
- Supports safe and reliable power distribution, minimizing waste and hazards
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal 4P4T Micrologic 2.3 630A Trip Circuit Breaker (SCHLV432084) is available for immediate purchase. Ideal for commercial and industrial electrical distribution systems.
