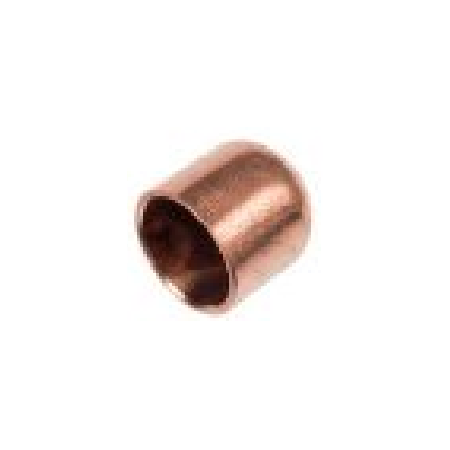

5/8 Cap XHP High Pressure Copper End Cap | CuFe2p Alloy | 130 Bar Rating | by Aspen Pumps
The 5/8 Cap XHP is a high pressure copper end cap made from CuFe2p alloy, designed for refrigeration systems using R744 refrigerant. With a pressure rating of 130 bar and a temperature tolerance of up to 150°C, this fitting ensures durability and reliability in industrial and commercial HVAC applications. Its traditional brazed joining method and magnetic identification feature make it a top choice for professionals.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 5/8 Cap XHP High Pressure Copper End Cap | CuFe2p Alloy | 130 Bar Rating | by Aspen Pumps
Brand: Aspen Pumps
SKU: 127-129301-58
Alternatively Known As: High Pressure Copper End Cap, Refrigeration Copper Cap, CuFe2p End Cap, R744 Copper Fitting
Technical Specifications
- Material: CuFe2p Copper Iron Alloy
- Pressure Rating: 130 bar
- Temperature Rating: Up to 150°C
- Compliance: ASTM B 280, AS5149.2
- Joining Method: Traditional Brazed Joining
- Magnetic Identification: Yes
- Dimensions (H x L x W): 20mm x 20mm x 20mm
- Weight: 0.1 kg
Key Features
- Made from CuFe2p copper iron alloy for high corrosion resistance
- Certified to TüV for quality assurance
- Suitable for use with R744 refrigerant at 130 bar and 150°C
- Traditional brazed joining method
- Magnetic identification for easy verification
Professional Installation Requirements
- Installation by a qualified HVAC technician or plumber experienced with high pressure refrigeration systems is required to ensure safety and compliance.
Applications
- High pressure refrigeration systems using R744 (CO2)
- Industrial and commercial HVAC systems
- Systems requiring high corrosion resistance copper fittings
Standards & Compliance
- Complies with AS/NZS 5149.2 for refrigeration systems safety and performance
Environmental Benefits
- Durable copper alloy reduces need for frequent replacements, minimizing waste
- Supports environmentally friendly R744 refrigerant systems
Warranty Information
Warranty as per Aspen Pumps standard terms and conditions.
Available Now
The Aspen Pumps 5/8 Cap XHP high pressure copper end cap is available for immediate purchase, ideal for high pressure refrigeration and HVAC applications.
