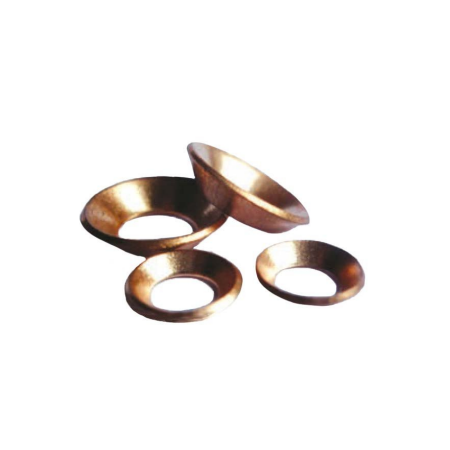

5/8 SAE Copper Flare Washer | High Pressure Rated for CO2 | ISO9001 Certified | by Aspen Pumps
The 5/8 SAE Copper Flare Washer is designed for high-pressure HVAC and refrigeration systems, rated for CO2 at 60 Bar and compatible with R-410A refrigerants. Manufactured in an ISO9001 accredited facility, it exceeds ISO/AS 5149.2 standards, ensuring safety and reliability in industrial and commercial applications. Ideal for qualified tradespeople, this washer minimizes refrigerant leakage risk and enhances system performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 5/8 SAE Copper Flare Washer | High Pressure Rated for CO2 | ISO9001 Certified | by Aspen Pumps
Brand: Aspen Pumps
SKU: 109-10
Alternatively Known As: Copper Flare Washer 5/8 SAE, SKY Copper Fitting, Refrigeration Copper Washer, High Pressure Copper Flare Washer
Technical Specifications
- Rated for CO2 at 60 Bar pressure
- Compatible with R-410A refrigerant
- Exceeds ISO/AS 5149.2 standards
- Manufactured in ISO9001 accredited facility
- Passed batch verification and burst testing
- Marked for R-410A and HP-60 safety ratings
- Recommended use of 15% silver solder for brazing
- Dimensions (H x L x W): 5mm x 20mm x 20mm
- Weight: 0.1 kg
Key Features
- Designed, manufactured, and tested to exceed ISO/AS 5149.2 standards
- Suitable for CO2 at 60 Bar and R-410A refrigerants
- Manufactured in an ISO9001 accredited facility with rigorous QA including batch verification and burst testing
- Marked for safety with R-410A and HP-60 ratings
- Designed to remove stress and fatigue focus points
- Recommended installation with 15% silver solder for high-pressure applications
- Installation should follow AS HB40 methodology by qualified tradespeople
Professional Installation Requirements
- Installation must be performed by qualified tradespeople following AS HB40 guidelines, using recommended brazing techniques to ensure safety and performance.
Applications
- HVAC and refrigeration systems requiring high-pressure copper fittings
- Systems using refrigerants such as CO2 and R-410A
- Industrial and commercial refrigeration installations
- Applications requiring compliance with ISO/AS 5149.2 standards
Standards & Compliance
- Complies with AS/NZS 5149.2 Refrigeration systems and heat pumps - Safety and environmental requirements
Environmental Benefits
- Reduces refrigerant leakage risk, minimizing environmental impact
- Manufactured to high standards ensuring long service life and reduced waste
Warranty Information
Warranty details available upon request; product manufactured under strict quality assurance standards.
Available Now
The Aspen Pumps 5/8 SAE SKY Copper Flare Washer is available for immediate purchase, ideal for HVAC and refrigeration system installations requiring high-pressure copper fittings.
