5/8 Swage Union | Flameless Copper Joining System | No Special Tools Required | by Aspen Pumps

BRAND: Aspen Pumps
SKU: 253-SWUN5800
$58.20 List price: $70.50
+ −
30 Days Return Delivery Options

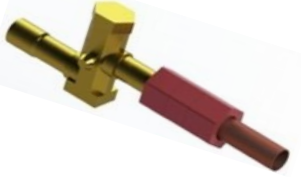

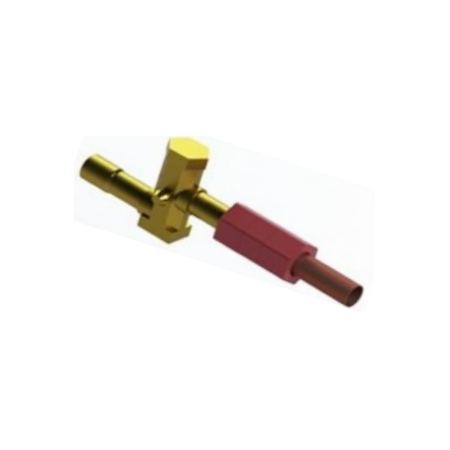

The 5/8 Swage Union is designed for seamless copper tube joining in HVAC and refrigeration systems. Featuring a flameless metal-on-metal connection, it eliminates the need for brazing or flaring, making installation quick and easy. Ideal for professional technicians, this fitting ensures a leak-free seal and complies with relevant standards for safety and reliability.

Product Name/Title: 5/8 Swage Union | Flameless Copper Joining System | No Special Tools Required | by Aspen Pumps

Brand: Aspen Pumps

SKU: 253-SWUN5800

Alternatively Known As: 5/8 inch Swage Union, Copper Tube Swage Union, Smartlock Copper Fitting, Copper Pipe Union

Technical Specifications
  • Fitting Type: Swage Union
  • Size: 5/8 inch
  • Material: Metal (Copper compatible)
  • Joining Method: Metal on metal flameless connection
  • Installation: No brazing, no flaring, no special tools required
  • Dimensions (H x L x W): 30mm x 50mm x 30mm
  • Weight: 0.1 kg
Key Features
  • Metal on metal flameless copper tube joining system
  • No brazing required
  • No flaring required
  • No leaking
  • No special tools needed
  • Smartlock fittings technology
Professional Installation Requirements
  • Installation should be performed by a qualified technician familiar with Smartlock fittings to ensure proper sealing and system integrity.
Applications
  • HVAC systems
  • Refrigeration piping
  • Copper tube joining in plumbing and mechanical systems
Standards & Compliance
  • Complies with AS/NZS 5601 for gas installations and AS/NZS 3500 for plumbing and drainage where applicable
Environmental Benefits
  • Flameless joining reduces fire risk and environmental hazards associated with brazing.
  • No need for additional chemicals or flux, reducing environmental contamination.
Warranty Information

Standard manufacturer warranty applies. Please refer to Aspen Pumps warranty policy for details.

Available Now

The Aspen Pumps 5/8 Swage Union is available for immediate purchase, ideal for HVAC and refrigeration system installations.
