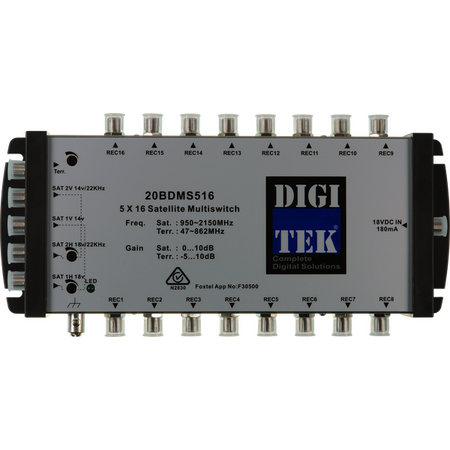

5 Input 16 Output Multiswitch | Foxtel Approved | 47-862MHz Terrestrial

SKU: 20BDMS516
$285.50 List price: $372.20
+
5 input 16 output multiswitch with Foxtel approval, supporting terrestrial frequencies of 47-862MHz and satellite frequencies of 950-2150MHz—ideal for comprehensive signal distribution. Built for efficient performance, with 155mA current consumption.

Product Name/Title: 5 Input 16 Output Multiswitch | Foxtel Approved | 47-862MHz Terrestrial

SKU: 20BDMS516

Alternatively Known As: Satellite Multiswitch, Foxtel Multiswitch, TV Signal Multiswitch, 5x16 Multiswitch

Technical Specifications
  • Inputs: 5
  • Outputs: 16
  • Terrestrial Frequency Range: 47-862MHz
  • Satellite Frequency Range: 950-2150 MHz
  • Current Consumption: 155mA
  • Foxtel Approved #F30500
  • Dimensions (H x L x W): 50mm x 150mm x 200mm
  • Weight: 1.2 kg
Key Features
  • Foxtel Approved #F30500
  • 5 Input ports
  • 16 Output ports
  • Supports Terrestrial Frequencies 47-862MHz
  • Supports Satellite Frequencies 950-2150 MHz
  • 155mA current consumption
Professional Installation Requirements
  • Professional installation by a qualified technician is recommended to ensure proper signal distribution and compliance with Foxtel standards.
Applications
  • Satellite TV distribution systems
  • Residential and commercial multiswitch installations
  • Foxtel satellite TV setups
Standards & Compliance
  • Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
  • Low current consumption reduces energy usage.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Digitek 5 Input 16 Output Multiswitch is available now for immediate purchase. Ideal for residential and commercial satellite TV distribution systems.
