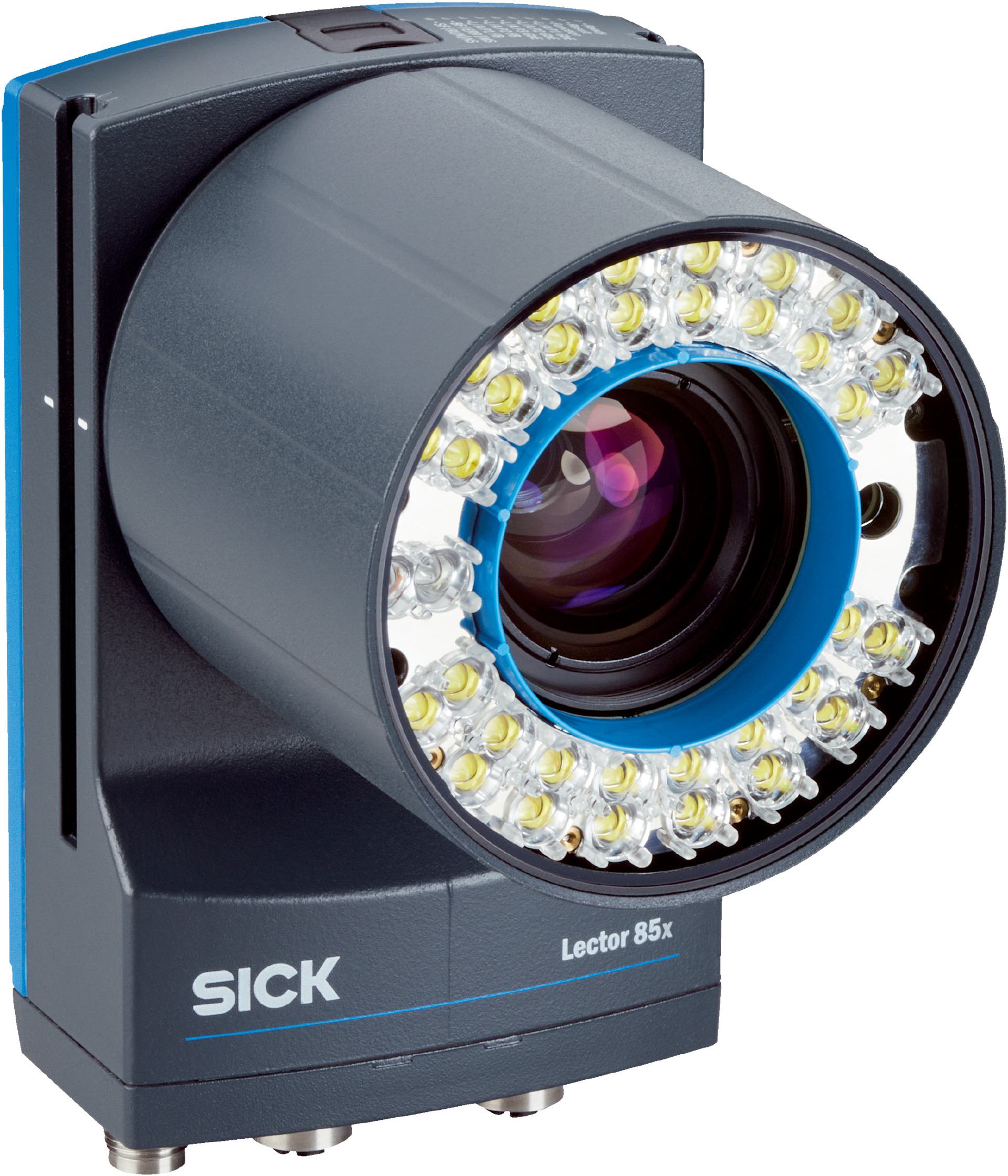

5 Megapixel CMOS Barcode Reader | Adjustable Optical Focus | Integrated LED Illumination | IP65 Rated | by SICK
The 5 Megapixel CMOS Barcode Reader is designed for high-resolution code reading in indoor applications. With an adjustable optical focus and integrated white LED illumination, it ensures precise scanning of 1D, 2D, and stacked barcodes. Built for industrial use, this robust reader features an IP65 rating and multiple connectivity options, making it ideal for various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor resolution: 2464 px x 2048 px (5 Megapixel)
- Optical focus: Adjustable manual
- Illumination: Integrated white LED, 32 LEDs, 47° aperture angle
- Lens: C-mount, 12 mm focal length, aperture 1.8 to 11
- Scanning frequency: 30 Hz at 5 megapixels
- Code resolution: ≥ 0.1 mm
- Working range: 500 mm to 3000 mm
- Connection types: 1x M12 17-pin male, 1x M12 5-pin male, 3x M12 8-pin female connectors
- Supply voltage: 24 V DC ± 20%
- Power consumption: Typical 24 W
- Current consumption: Max 2 A
- Housing material: Aluminum die cast, anthracite gray (RAL 7016)
- Window material: 2 mm thick scratch-proof glass
- Enclosure rating: IP65
- Electrical safety: EN 61010:2010 / EN 61010-1:2010/A1:2019/AC:2019-04
- MTBF: 100,000 hours
- Interfaces: Ethernet (Gigabit TCP/IP), CAN (500 kbit/s), Serial (RS-232, RS-422), USB 2.0
- Digital inputs: 2 insulated inputs, 13 configurable digital I/Os
- Operating temperature: 0°C to +50°C
- Storage temperature: -20°C to +70°C
- Relative humidity: ≤ 90%, non-condensing
- Altitude: < 5000 m
- Dimensions (H x L x W): 46mm x 143.4mm x 90mm
- Weight: 0.64 kg
Key Features
- Adjustable manual optical focus
- 5 Megapixel CMOS monochrome sensor with 2464 x 2048 px resolution
- Integrated white LED illumination with 32 LEDs
- Low risk LED class 1 and laser class 1 compliant with safety standards
- C-mount lens with 12 mm focal length and aperture range 1.8 to 11
- High scanning frequency of 30 Hz at 5 megapixels resolution
- Reads 1D, 2D, and stacked barcodes including Code 128, QR code, Data Matrix ECC200, PDF417
- Multiple interfaces: Ethernet (Gigabit), CAN, Serial (RS-232, RS-422), USB 2.0
- Robust aluminum die cast housing with IP65 rating and scratch-proof glass window
- Wide ambient operating temperature range 0°C to +50°C
- Electromagnetic compatibility and vibration/shock resistance certified
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and compliance with safety standards.
Applications
- Indoor area applications requiring high-resolution code reading and imaging
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED illumination reduces power consumption
- Durable aluminum housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK V2D8505R-1MCICXAL2SXXXX sensor is available for immediate purchase, ideal for indoor industrial barcode and code reading applications.
