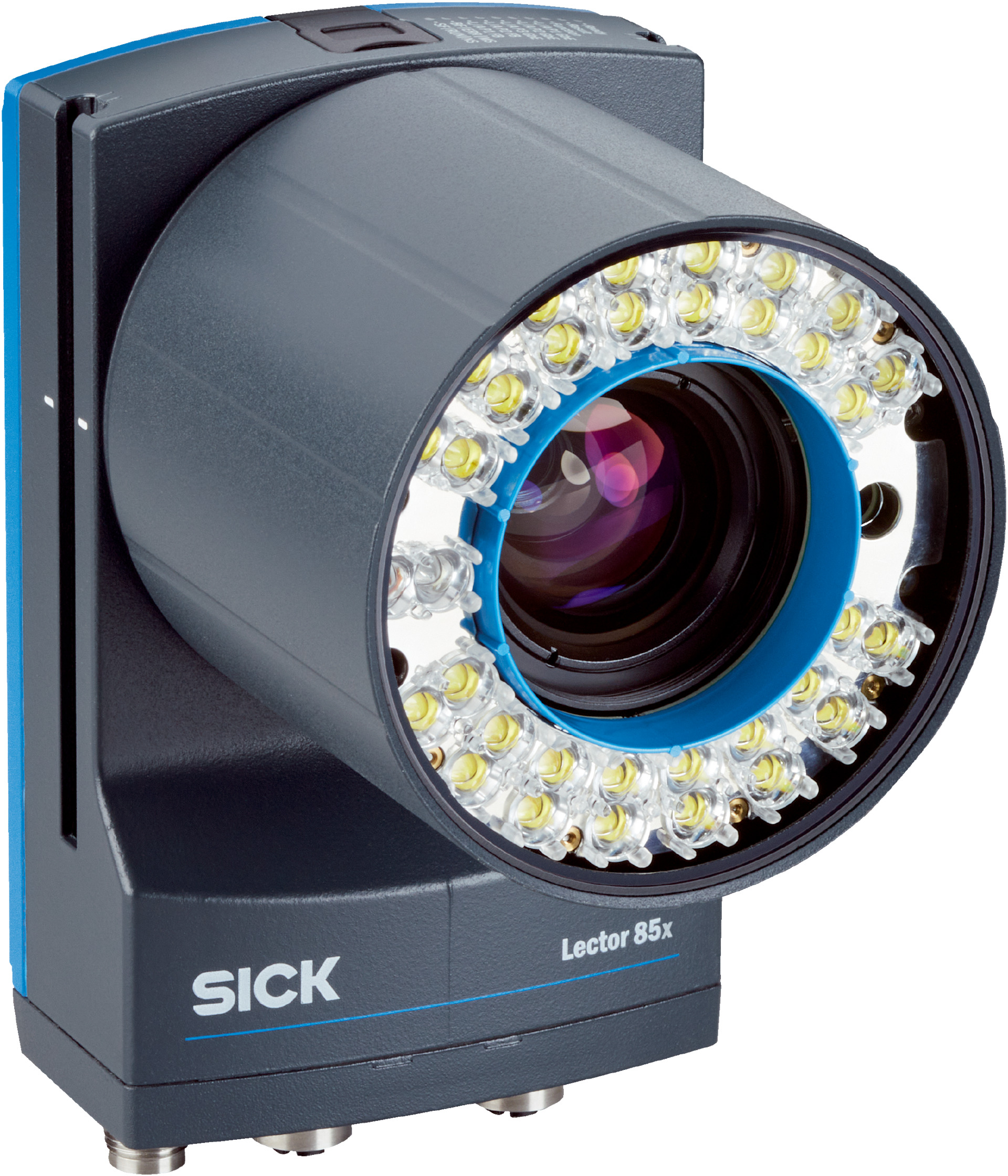

5 Megapixel CMOS Barcode Reader | Adjustable Optical Focus | Integrated LED Illumination | IP65 Rated | by SICK
The 5 Megapixel CMOS Barcode Reader is designed for high-resolution indoor applications, featuring adjustable optical focus and integrated white LED illumination. Ideal for industrial automation and quality control, this robust scanner supports various code types and offers multiple industrial interfaces for seamless integration into your systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor resolution: 2464 px x 2048 px (5 Megapixel)
- Optical focus: Adjustable manual
- Illumination: Integrated white LED, 32 LEDs, aperture angle 47°
- LED class: Risk group 1 (low risk) according to EC 62471-1 / EN 62471-1
- Laser class: Class 1, compliant with EN 60825-1:2014+A11:2021
- Lens: C-mount, optical format 1/1.8", focal length 8 mm, aperture 1.85 to 16
- Scanning frequency: 30 Hz at 5 Megapixel resolution
- Code resolution: ≥ 0.1 mm
- Working range: 500 mm to 3000 mm
- Connection types: Multiple M12 connectors for power, CAN, serial, Ethernet, external illumination
- Supply voltage: 24 V DC ± 20%
- Power consumption: Typical 24 W
- Current consumption: Max 2 A
- Housing material: Aluminum die cast, color anthracite gray (RAL 7016)
- Window material: 2 mm thick glass with scratch-proof coating
- Enclosure rating: IP65 (IEC 60529)
- Electrical safety: EN 61010:2010 / EN 61010-1:2010/A1:2019
- MTBF: 100,000 hours
- Interfaces: Ethernet TCP/IP, EtherNet/IP™, PROFINET, CAN, Serial RS-232/422, USB 2.0
- Ambient operating temperature: 0°C to +50°C
- Storage temperature: -20°C to +70°C
- Permissible relative humidity: ≤ 90%, non-condensing
- Vibration resistance: EN 60068-2-6:2007, EN 60068-2-64:2019
- Shock resistance: EN 60068-2-27:2008
- Altitude: < 5000 m
- Dimensions (H x L x W): 46mm x 143mm x 90mm
- Weight: 0.64 kg
Key Features
- Adjustable manual optical focus
- 5 Megapixel CMOS monochrome sensor with 2464 x 2048 px resolution
- Integrated white LED illumination with 32 LEDs
- Low risk LED class 1 and laser class 1 compliant with safety standards
- Supports reading of 1D, 2D, and stacked codes including Code 128, QR, Data Matrix ECC200, PDF417
- Multiple industrial interfaces including Ethernet, PROFINET, EtherNet/IP™, CAN, Serial RS-232/422, USB 2.0
- Robust aluminum die cast housing with IP65 rating and scratch-proof glass window
- Operating temperature range 0°C to +50°C with high vibration and shock resistance
- Web server operator interface and SOPASair configuration software support
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper integration with industrial networks and compliance with electrical safety standards.
Applications
- Indoor area applications requiring high-resolution barcode and code structure reading
- Industrial automation and quality control
- Logistics and packaging code verification
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED illumination reduces power consumption
- Durable housing and long MTBF of 100,000 hours reduce waste and replacement frequency
Warranty Information
Warranty details available upon request from manufacturer or authorized distributor.
Available Now
The SICK V2D8505R-1MCIBXAF2SXXXX sensor is available for immediate purchase, ideal for indoor industrial barcode reading and automation applications.
