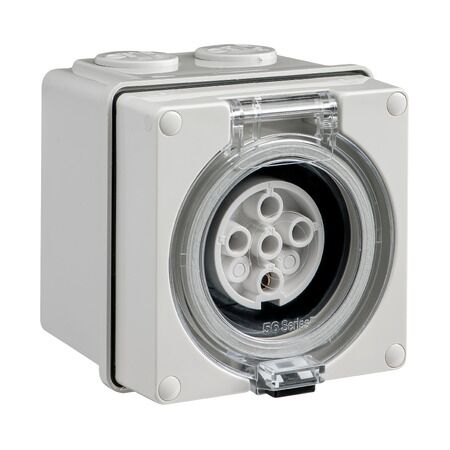

5 Pin Socket 10A 500V | Surface Mounted | IP66 Rated by Clipsal
5 pin socket with 10A current and 500V voltage—ideal for small commercial and industrial applications. Built for durability, with surface mounted design and IP66 rating for dust and water protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Easy56, Socket, 5 Pin, 10A, 500V
Brand: Clipsal
SKU: EY56SO510
Alternatively Known As: Easy56 Socket, 5 Pin Socket, Clipsal 5 Pin Socket
Technical Specifications
- Rated current: 10A
- Rated operational voltage: 500V
- Mounting mode: Surface mounted
- Connections: Screw terminals for 1.5-6 mm² rigid or stranded cable
- Wire stripping length: 16 mm
- IP Rating: IP66 conforming to AS 60529
- Ambient air temperature for operation: -25...75 °C
- Material: Polycarbonate cover, brass pins
- Network frequency: 50 Hz
- Poles description: 3P + N + E
- Dimensions (H x L x W): 101mm x 101mm x 101mm
- Weight: 0.471 kg
Key Features
- Surface mounted design for easy installation.
- IP66 rated for protection against dust and water.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Small commercial and utility applications
Standards & Compliance
- Complies with AS/NZS 3123 for safety and performance standards.
Environmental Benefits
- Compliant with RoHS directives, ensuring reduced environmental impact.
Warranty Information
Standard warranty applies.
Available Now
The Clipsal Easy56 Socket, 5 Pin, 10A, 500V is available now for immediate purchase. Ideal for small commercial and industrial applications.
