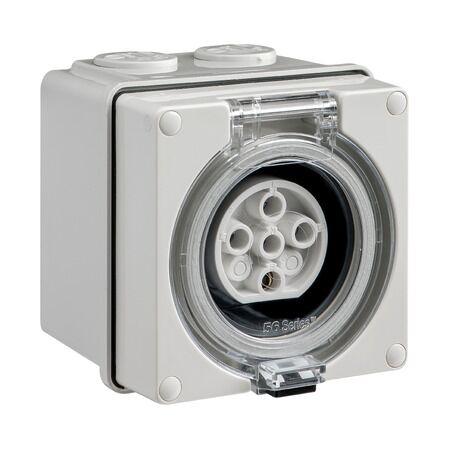

5 Pin Socket Outlet 20A 500V | Surface Mounted | IP66 Rated by Clipsal
5 pin socket outlet with 20A current and 500V voltage—ideal for industrial and small commercial applications. Built for durability, with surface mounted design and IP66 rating for robust performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Easy56, Socket, 5 Pin, 20A, 500V
Brand: Clipsal
SKU: EY56SO520
Alternatively Known As: Easy56 Socket, 5 Pin Socket, Clipsal 20A Socket
Technical Specifications
- Rated current: 20A
- Rated operational voltage: 500V
- Mounting mode: Surface mounted
- Connections: Screw terminals for 2.5-6 mm² rigid or stranded cable
- Wire stripping length: 16 mm
- IP Rating: IP66 conforming to AS 60529
- Ambient air temperature for operation: -25...75 °C
- Material: Polycarbonate cover, brass pins
- Network frequency: 50 Hz
- Poles description: 3P + N + E
- Dimensions (H x L x W): 101mm x 101mm x 101mm
- Weight: 0.5 kg
Key Features
- 5 pin socket outlet with a rated current of 20A and operational voltage of 500V.
- Surface mounted design with screw terminals for easy installation.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Small commercial and utility applications
Standards & Compliance
- Complies with AS/NZS 3123 for safety and performance standards.
Environmental Benefits
- Compliant with RoHS directives, ensuring reduced environmental impact.
Warranty Information
Standard warranty applies.
Available Now
The Clipsal Easy56 Socket, 5 Pin, 20A, 500V is available now for immediate purchase. Ideal for industrial applications.
