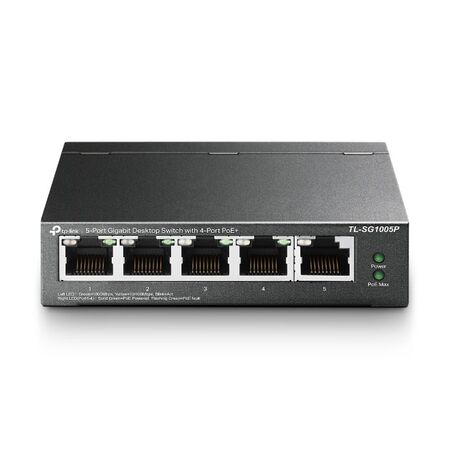

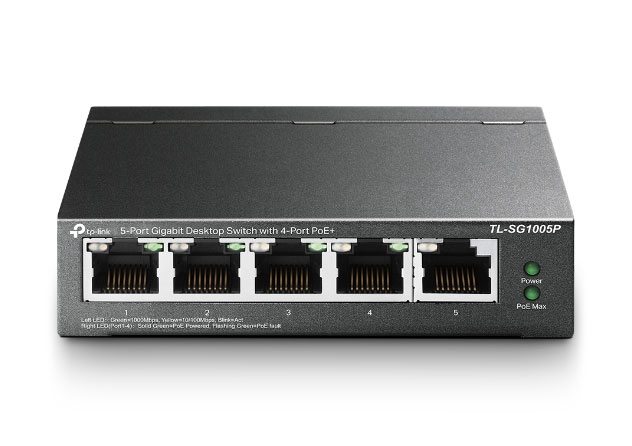

5-Port Gigabit Switch with 4 PoE Ports 65W TP-Link Ness

BRAND: Ness
SKU: 126-217
$125.50 List price: $167.30
+ −
30 Days Return Electricians Unlock Trade Access
Ness TP-Link 5-port gigabit switch features 4 PoE ports and 65W power. Ideal for CCTV and network installs.

Alternatively Known As: 5-Port Gigabit PoE Switch, 4-Port PoE+ Switch, Unmanaged Gigabit PoE Switch, CCTV PoE Switch

Technical Specifications
  • Model: TL-SG1005P
  • Switch Type: Unmanaged desktop switch
  • Network Ports: 5 × 10/100/1000 Mbps RJ45
  • PoE Ports: Ports 1–4
  • PoE Standard: IEEE 802.3af/at PoE+
  • PoE Power Budget: 65 W total
  • Maximum PoE Output: Up to 30 W per PoE port
  • Switching Capacity: 10 Gbps
  • Packet Forwarding Rate: 7.44 Mpps
  • MAC Address Table: 2K entries
  • Power Supply: External 48 VDC, 1.25 A power adapter
  • Transmission Distance: Up to 100 m standard; up to 250 m in Extend Mode
  • Cooling: Fanless
  • Management: Plug and play, no configuration required
  • Advanced Features: PoE Auto Recovery, IGMP Snooping, 802.1p/DSCP QoS
  • Casing: Metal
  • Dimensions (H x L x W): 25mm x 98mm x 99.8mm
  • Weight: 0.78 kg
Key Features
  • Four Gigabit PoE+ ports for powering IP cameras, wireless access points and IP phones
  • 65 W total PoE power budget with up to 30 W available per port
  • One additional Gigabit RJ45 uplink port without PoE output
  • PoE Auto Recovery automatically restarts unresponsive powered devices
  • Extend Mode supports transmission distances up to 250 m on compatible installations
  • Fanless design provides silent operation and reduces moving-part failure risk
  • Metal housing supports desktop or wall-mounted installation
  • Automatic negotiation and auto MDI/MDIX simplify network installation
Applications
  • CCTV and IP surveillance camera networks
  • Small office and commercial network installations
  • Wireless access point deployment
  • IP telephone systems
  • Networked security and access-control systems
  • Home and small-business Ethernet expansion
Standards & Compliance
  • AS/NZS 62368.1: Applicable safety standard for audio/video, information and communication technology equipment; verify the supplied unit's declaration of conformity
  • AS/NZS 4417.1: Relevant Australian RCM marking and conformity framework; verify RCM marking on the supplied product
Environmental Benefits
  • Fanless operation reduces energy use and avoids replacement of mechanical cooling components
  • PoE supplies data and power over a single Ethernet cable, reducing the need for separate power cabling and adapters at connected devices
  • Automatic power management helps limit unnecessary PoE consumption
  • Durable metal enclosure can support extended service life and reduce replacement waste
  • RoHS environmental compliance is specified by the manufacturer
Warranty Information

Ness Corporation warranty statement: 3 years from date of purchase for Ness manufactured or supplied products, subject to the applicable warranty terms and Australian Consumer Law. TP-Link Australia's published warranty periods may differ by product category and purchase channel.

Available Now

Available through Ness Corporation and authorised Australian networking and security distributors; confirm current stock and hardware revision before ordering.
