5 Wire Multiswitch 5 In 16 Out | Mains Powered | Wideband by Matchmaster
5 wire multiswitch with 5 inputs and 16 outputs—ideal for homes and commercial buildings. Built for extensive signal distribution, with energy-efficient mains power and robust design.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

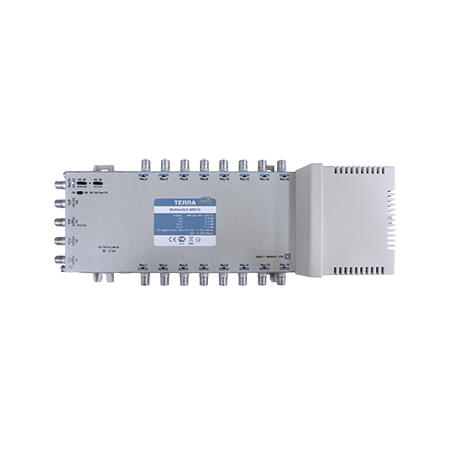

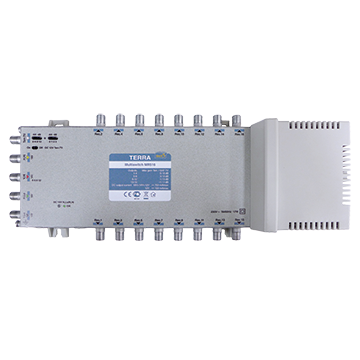

Product Name/Title: TERRA 5 Wire Multiswitch 5 In 16 Out Mains Powered
Brand: Matchmaster
SKU: 21MM-MR516
Alternatively Known As: 5 Wire Multiswitch, Pay TV Multiswitch, Satellite Multiswitch
Technical Specifications
- Frequency Range: SAT IF 950-2400MHz, Terr. TV 47-862MHz
- SAT IF Gain: Outputs 1-4: 0 ÷ 8dB, Outputs 5-8: -1 ÷ 6dB, Outputs 9-12: -2 ÷ 3dB, Outputs 13-16: -3 ÷ 1dB
- Terr. TV Gain: Outputs 1-4: -1 ÷ 5dB, Outputs 5-8: -2 ÷ 3dB, Outputs 9-12: -3 ÷ 1dB, Outputs 13-16: -4 ÷ -1dB
- Gain Adjustment: Terr. TV 15dB by 1dB Steps
- Output Level for SAT IF: 96dBµV, Terr. TV: Outputs 1-4: 88dBµV, Outputs 5-8: 86dBµV, Outputs 9-12: 84dBµV, Outputs 13-16: 82dBµV
- Supply Voltage: H, Lo and H, Hi - 18V; V, Lo and V, Hi - 14V; Terr. TV - 12V
- Current Consumption: <65mA
- Power Consumption: 230V-50/60Hz 2 W
- Control Signals: 14/18V, 0/22kHz
- Operating Temperature Range: -20° ÷ + 50° C
- Dimensions (H x L x W): 52mm x 135mm x 333mm
- Weight: 1.1 kg
Key Features
- Foxtel approved (F30819)
- Star distribution system for 4 satellite IF polarities and terrestrial TV signal up to 8 users
- 16 positions discrete gain regulator for terrestrial TV
- Built-in power supply for remote DC feeding
- Possibility to feed pre-amplifier through terrestrial TV input
- Used with 5 Wire products only
Professional Installation Requirements
- Professional installation is recommended for optimal performance and compliance with local regulations.
Applications
- Residential: Homes with multiple TV connections
- Commercial: Hotels, apartments, and office buildings
Environmental Benefits
- Energy-efficient design with low power consumption.
Warranty Information
Standard warranty applies, please check with the manufacturer for details.
Available Now
The TERRA 5 Wire Multiswitch 5 In 16 Out Mains Powered is available now for immediate purchase. Ideal for residential and commercial applications requiring multiple TV connections.
