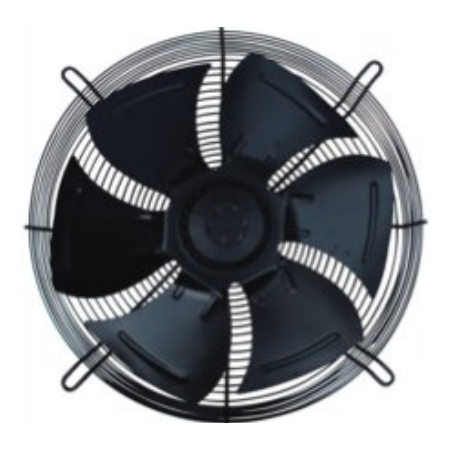

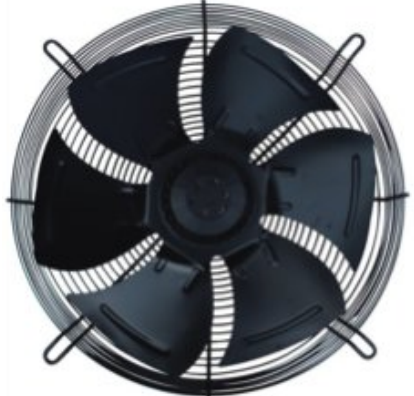

500mm Motor Fan Blade | High Efficiency | IP44 & IP55 Rated | by Aspen Pumps
The 500mm Motor Fan Blade is designed for high efficiency with external rotor motors, making it ideal for liquid control systems and industrial cooling applications. With a robust operating temperature range of -30°C to 60°C and compliance with CE, UL, and RoHS standards, this fan blade ensures reliable performance and energy efficiency. Perfect for both single and three-phase setups, it offers a rated lifetime of 30,000 hours.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 500mm Motor Fan Blade | High Efficiency | IP44 & IP55 Rated | by Aspen Pumps
Brand: Aspen Pumps
SKU: 500-4E-500-S-137/35G
Alternatively Known As: 500mm Motor Fan Blade, Shaded Pole Motor Fan Blade, External Rotor Motor Fan
Technical Specifications
- Fan Blade Diameter: 500mm
- Motor Compatibility: High efficiency external rotor motors
- Approvals: CE, UL, CCC
- Compliance: RoHS
- Operating Temperature: -30°C to 60°C
- Phase Rating: Single and three phase
- Rated Lifetime: 30,000 hours
- IP Rating: IP44, IP55
- Insulation Class: B or F
- Connection: Terminal box
- Air Direction: Standard over motor
- Dimensions (H x L x W): 50mm x 500mm x 500mm
- Weight: 1.2 kg
Key Features
- High efficiency external rotor motor compatibility
- ErP 2015 performance compliant
- CE, UL, CCC approved and RoHS compliant
- Operating temperature range from -30°C to 60°C
- Single phase and three phase rated at 30,000 hours
- IP44 and IP55 rated with insulation class B or F
- Terminal box connection
- Standard air direction over motor
Professional Installation Requirements
- Installation should be performed by a qualified technician to ensure proper fit and motor compatibility.
Applications
- Liquid control systems requiring efficient motor fan blades
- Replacement or upgrade for shaded pole motor accessories
- Industrial and commercial motor cooling applications
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient design reduces power consumption
- Complies with RoHS standards limiting hazardous substances
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Aspen Pumps 500-4E-500-S-137/35G fan blade is available for immediate purchase, ideal for liquid control and motor cooling applications.
