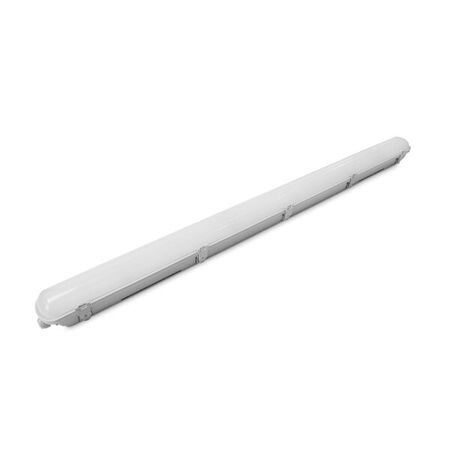

50W LED Batten Light | Tri-CCT | IP65 Rated | 134 lm/W Efficiency | by Ektor
The 50W LED Batten Light features a Tri-CCT configuration, allowing you to select between 4000K, 5000K, and 6500K color temperatures. With an impressive efficiency of 134 lm/W and an IP65 rating for dust and water protection, this batten is perfect for both commercial and emergency lighting applications. Built with a durable polycarbonate body, it ensures long-lasting performance and reliability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: LED Batten Light, Tri-CCT LED Batten, Surface Mount LED Batten, IP65 LED Batten, Emergency LED Batten Light
Technical Specifications
- Dimensions (H x L x W): 60mm x 1500mm x 70mm
- Weight: 2.5 kg
Key Features
- Tri-CCT configuration with 4000K, 5000K, and 6500K selectable colour temperatures
- High total system efficiency of 134 lm/W
- IP65 rated for dust and water ingress protection
- IK08 impact resistance rating
- Polycarbonate body and diffuser for durability
- Fixed output driver with power factor of 0.95
- Non-dimmable with inline switch
- Long LED lifetime greater than 72,000 hours (L80B10)
- Emergency mode with 90 minutes duration and 250 lm output
- Re-wireable flex & plug wiring type with 1700 mm lead length
- Short Term Light Modulation (PstLM) of 0.1 and Stroboscopic Visibility Measure (SVM) of 0.4 for visual comfort
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and optimal performance.
Applications
- Commercial and industrial lighting
- Surface mount installations in indoor and outdoor environments
- Emergency lighting applications
Standards & Compliance
- AS/NZS 60598.1
- AS/NZS 60598.2.1
- AS CISPR 15
- AS/NZS 61347.1
- AS/NZS 61347.2.13
Environmental Benefits
- Energy-efficient LED technology reduces power consumption
- Long LED lifetime minimizes waste and replacement frequency
- Ipart, REES, and VEU approvals support energy savings schemes
Warranty Information
VIP Warranty: 2 years onsite and 3 years return-to-base (total 5 years). Standard warranty is return-to-base. Onsite warranty available to registered users in defined regions. Warranty valid up to 15,000 operating hours.
Available Now
The Ektor UMBRA CORE 50W 1500mm LED Batten is available for immediate purchase, ideal for commercial, industrial, and emergency lighting applications.
