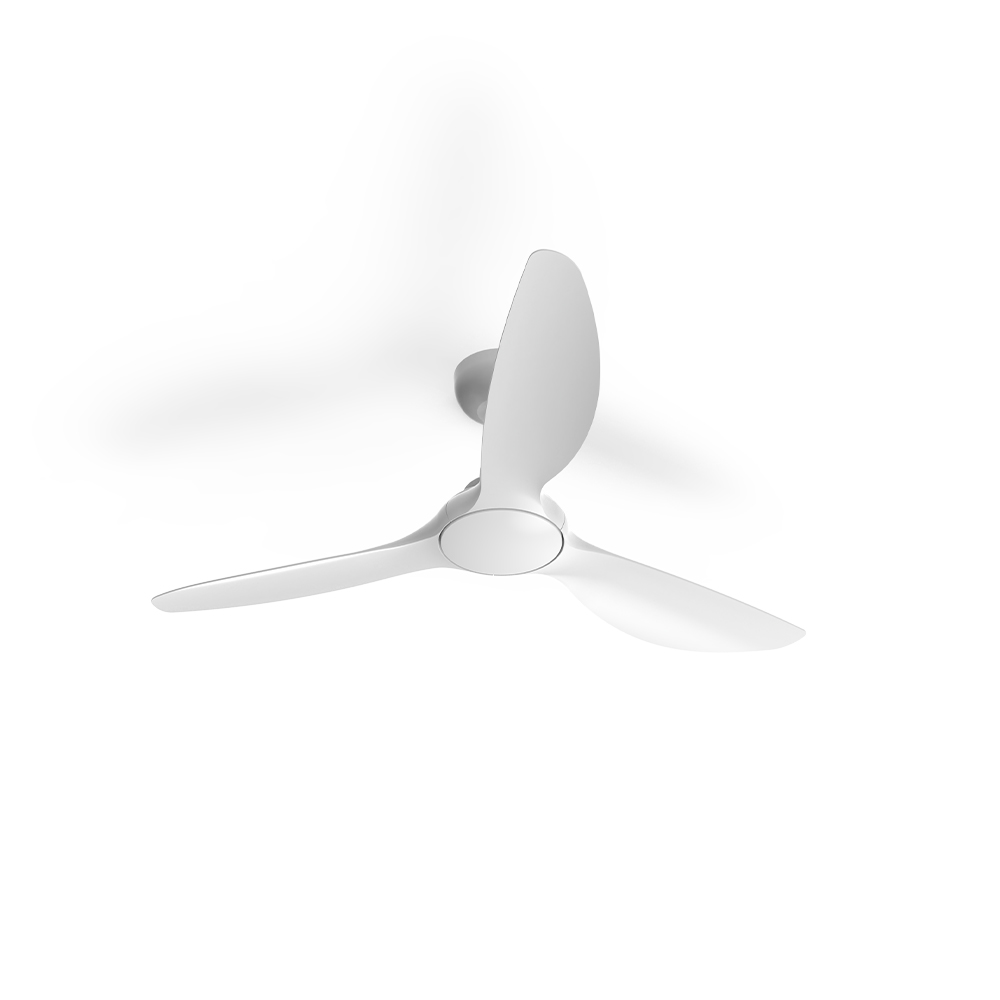

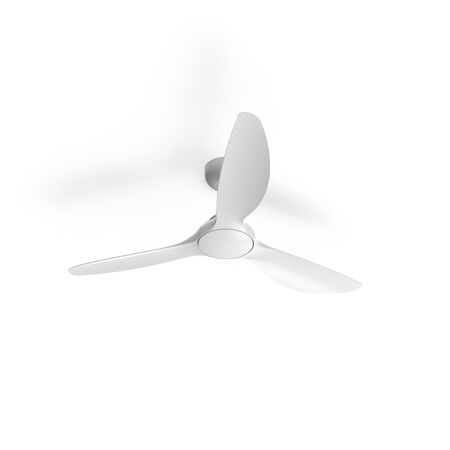

52 Inch 3 Blade 40W DC Ceiling Fan | Energy Efficient | Remote Control | White | by atom
The 52 Inch 3 Blade 40W DC Ceiling Fan is designed for optimal air circulation in residential and commercial spaces. Featuring an energy-efficient DC motor and 8-speed settings controlled via remote, this fan ensures comfort and convenience. With a sleek white finish and ABS blades, it’s perfect for living rooms, bedrooms, and offices, providing a stylish yet functional solution for indoor cooling.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 52 inch DC ceiling fan, 3 blade ceiling fan, energy efficient ceiling fan, remote control ceiling fan, white ceiling fan
Technical Specifications
- Motor Wattage: 40 W
- Motor Type: DC
- Number of Speeds: 8
- RPM Range: 85 to 205 rpm
- Airflow Range: 4000 to 12000 m³/hr
- Blade Material: ABS
- Blade Pitch: 13°
- Ceiling Rake: 15°
- Ceiling Drop: 325 mm
- Input Voltage: 230Vac (216-253Vac range)
- Input Frequency: 50 Hz
- IP Rating: IP20
- Working Temperature Range: -10 to 40 °C
- Lamp Colour Temperature: 3000K, 4000K, 5000K (Tri-CCT)
- Lamp Wattage: 19 W
- Dimensions (H x L x W): 325mm x 1320mm x 1320mm
- Weight: 6 kg
Key Features
- 40W DC motor for energy-efficient operation
- 8-speed settings controlled via remote control
- ABS blade material with 13° blade pitch for optimal airflow
- Ceiling rake angle of 15° and ceiling drop of 325 mm
- IP20 rated for indoor use
- Tri-CCT lamp configuration with warm white, cool white, and daylight options
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and optimal fan performance.
Applications
- Residential ceiling fan for living rooms, bedrooms, and dining areas
- Commercial spaces requiring efficient air circulation
- Indoor use in homes and offices
Standards & Compliance
- AS/NZS 60335.1
- AS/NZS 60335.2.80
- AS/NZS 60598.1
- AS/NZS 60598.2.2
- AS CISPR 15
- AS/NZS 4268
- AS/NZS CISPR 14
Environmental Benefits
- Energy-efficient DC motor reduces electricity consumption
- Multiple speed settings optimize airflow and power usage
- Long-lasting ABS blades reduce need for frequent replacements
Warranty Information
6 years total warranty: 4 years onsite and 2 years return to base for domestic use.
Available Now
The Atom 52 inch 3 Blade 40W DC Ceiling Fan in white is available now for immediate purchase. Ideal for residential and commercial indoor applications requiring efficient and quiet air circulation.
