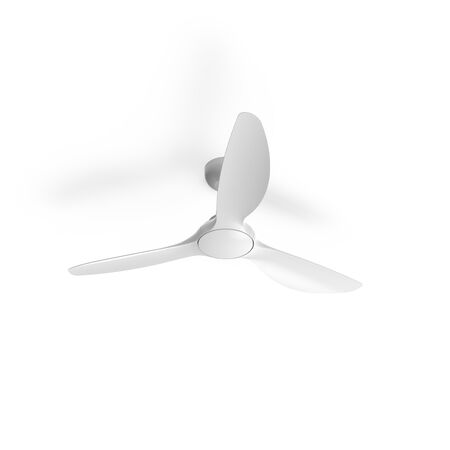

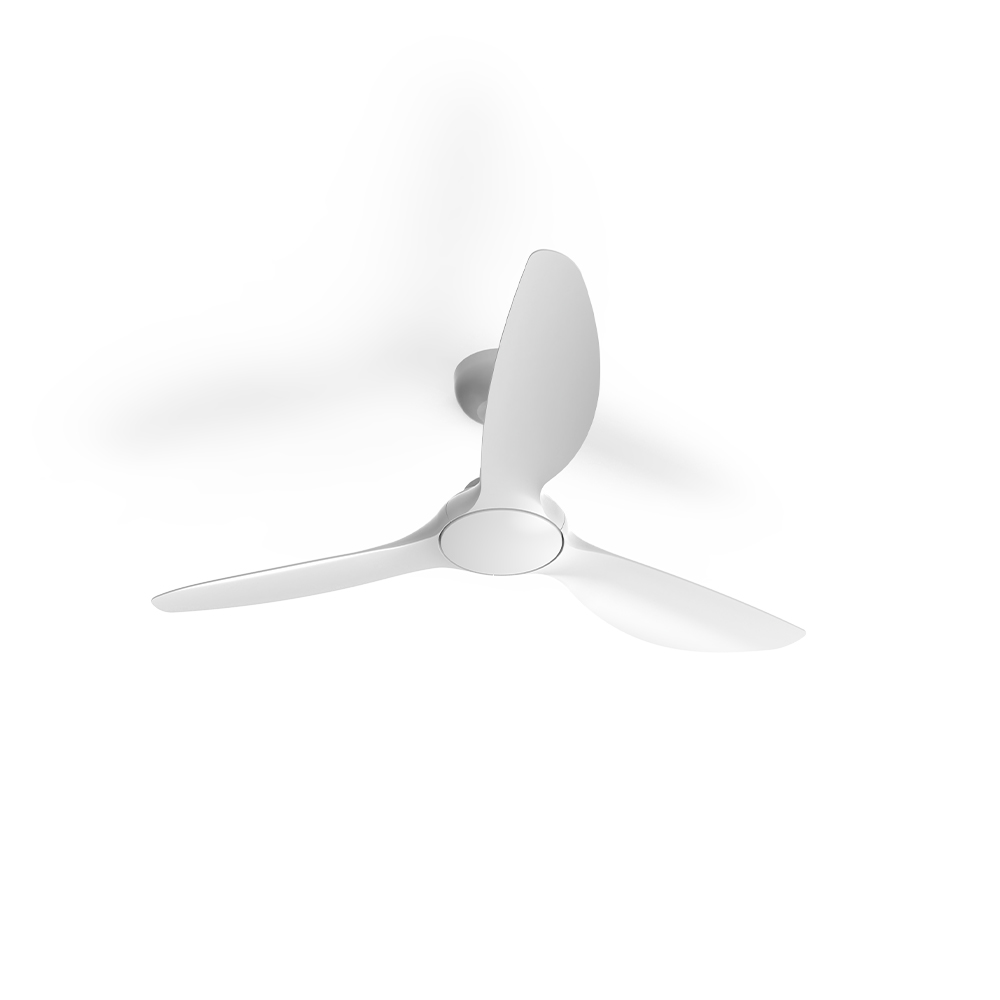

52 Inch 3 Blade 40W DC Ceiling Fan with LED Light | Remote Control | IP20 Rated | by atom
The 52 inch 3 Blade 40W DC Ceiling Fan with LED Light is perfect for both residential and commercial spaces, providing efficient cooling and versatile lighting options. With a powerful DC motor and 8 speed settings, it ensures optimal airflow up to 12,500 m³/hr. The tri-colour LED light offers warm, cool, and daylight options, making it an ideal choice for any indoor environment.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 52 inch DC ceiling fan with LED light, 3 blade ceiling fan, Atom white ceiling fan, energy efficient ceiling fan with remote
Technical Specifications
- Motor Wattage: 40 W DC
- Fan Speeds: 8 speeds (3W to 40W)
- RPM Range: 85 to 205 rpm
- Airflow: Up to 12,000 m³/hr
- Blade Material: ABS
- Input Voltage: 230Vac (216-253Vac range)
- Input Frequency: 50 Hz
- Colour Temperature: 3000K, 4000K, 5000K
- LED Lamp Wattage: 19 W
- IP Rating: IP20
- Ceiling Drop: 325 mm
- Ceiling Rake: 15°
- Blade Pitch: 13°
- Operating Temperature: -10 to 40 °C
- Dimensions (H x L x W): 325mm x 1320mm x 1320mm
- Weight: 6 kg
Key Features
- 52 inch (1320mm) fan size with 3 ABS blades
- 40W DC motor with 8 speed settings
- Remote control for easy operation
- Tri-CCT LED light with warm white (3000K), cool white (4000K), and daylight (5000K) options
- Air movement up to 12,500 m³/hr
- Ceiling rake angle of 15° and blade pitch of 13°
- IP20 rated for indoor use
- Operating temperature range from -10 to 40 °C
Professional Installation Requirements
- Professional installation by a licensed electrician is recommended to ensure compliance with electrical safety standards and optimal fan performance.
Applications
- Residential: Living rooms, bedrooms, patios
- Commercial: Offices, cafes, retail spaces
- General: Indoor cooling and lighting solutions
Standards & Compliance
- AS/NZS 60335.1
- AS/NZS 60335.2.80
- AS/NZS 60598.1
- AS/NZS 60598.2.2
- AS CISPR 15
- AS/NZS 4268
- AS/NZS CISPR 14
Environmental Benefits
- Energy-efficient DC motor reduces power consumption
- LED lighting with tri-colour temperature options for optimized energy use
- Long lifespan reduces waste and replacement frequency
Warranty Information
6 years total warranty: 4 years onsite and 2 years return to base for domestic use.
Available Now
The Atom 52 inch 3 Blade 40W DC Ceiling Fan with LED Light in white is available for immediate purchase, ideal for residential and commercial indoor cooling and lighting applications.
