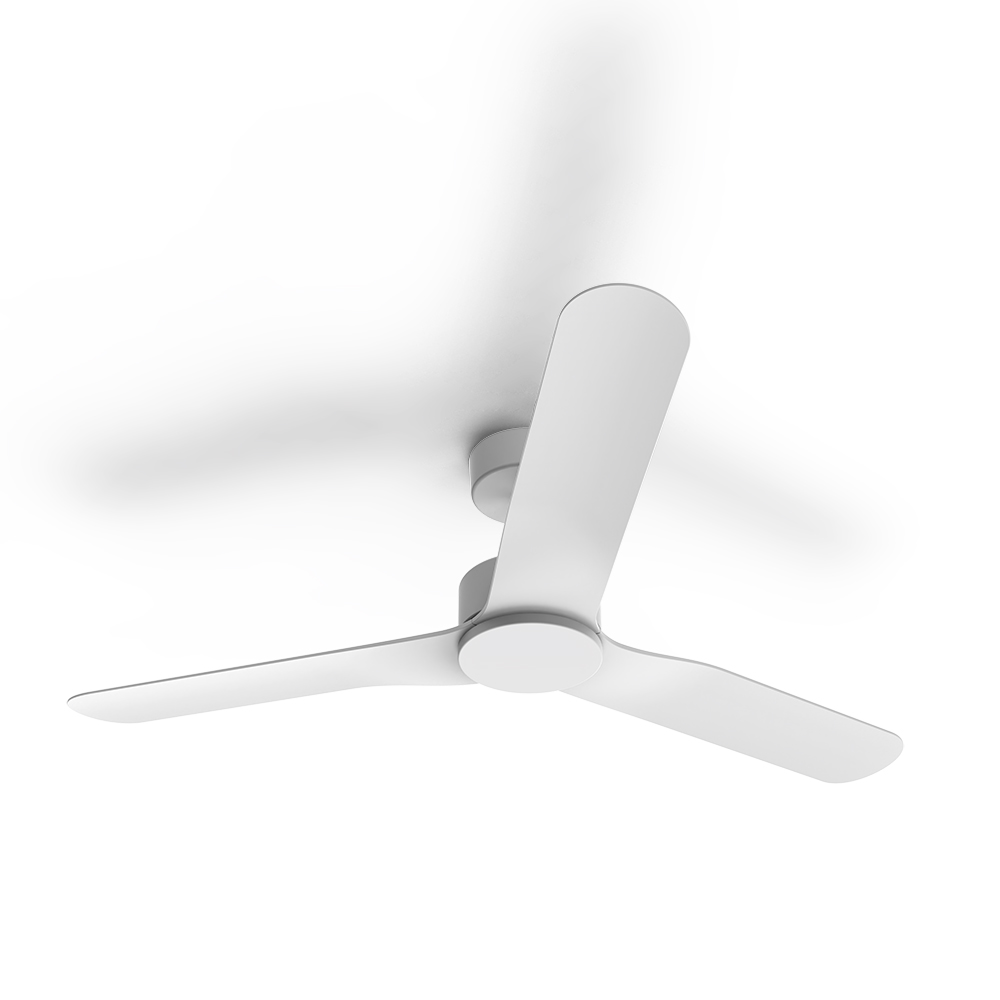

52 Inch 3 Blade 40W DC Ceiling Fan with LED Light | TRI-CCT Options | Satin White Finish | by atom
The 52 inch 3 blade 40W DC ceiling fan with LED light is perfect for enhancing air circulation and lighting in any indoor space. Featuring a powerful DC motor with 8 speed settings and integrated TRI-CCT LED light options, this fan is designed for both residential and commercial use. Its sleek satin white finish and durable metal body make it a stylish and efficient choice for living rooms, bedrooms, and offices.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 52 inch DC ceiling fan with LED light, 3 blade ceiling fan, 40W DC fan with remote control, tri-color temperature ceiling fan light
Technical Specifications
- IP Rating: IP20
- Body Material: Metal
- Diffuser Material: Acrylic
- Input Voltage: 230Vac (216-253Vac range)
- Input Frequency: 50 Hz
- Working Temperature Range: -10 to 40 °C
- Motor Wattage: 40 W
- Motor Type: DC
- Number of Speeds: 8
- Fan Speeds and Airflow:
- Speed 1: 7 W, 130 rpm, 7200 m³/h
- Speed 2: 10 W, 150 rpm, 8400 m³/h
- Speed 3: 15 W, 170 rpm, 9600 m³/h
- Speed 4: 20 W, 190 rpm, 12000 m³/h
- Speed 5: 25 W, 200 rpm, 13200 m³/h
- Speed 6: 30 W, 210 rpm, 14400 m³/h
- Speed 7: 35 W, 220 rpm, 15000 m³/h
- Speed 8: 40 W, 230 rpm, 15600 m³/h
- Blade Material: ABS
- Blade Pitch: 10°
- Ceiling Rake: 15°
- Ceiling Drop: 280 mm
- LED Lamp Specifications:
- Colour Rendering Index (CRI): >80
- Colour Temperature Options: 3000K (Warm White), 4000K (Cool White), 5000K (Daylight)
- Lumens Output: 1250 lm (3000K), 1400 lm (4000K), 1350 lm (5000K)
- Control: Remote control
- Dimensions (H x L x W): 280mm x 1320mm x 1320mm
- Weight: 6 kg
Key Features
- 52 inch (1320mm) fan size with 3 ABS blades
- 40W DC motor with 8 speed settings controlled by remote
- Integrated TRI-CCT LED light with warm white, cool white, and daylight options
- Blade pitch of 10° for optimal air circulation
- Ceiling rake of 15° and ceiling drop of 280mm
- IP20 rated suitable for indoor use
- Metal body with satin white finish and acrylic diffuser
Professional Installation Requirements
- Professional installation by a licensed electrician is recommended to ensure compliance with electrical safety standards and optimal fan performance.
Applications
- Residential: Living rooms, bedrooms, kitchens
- Commercial: Offices, retail spaces, hospitality venues
- General: Indoor ceiling fan applications requiring efficient air movement and lighting
Standards & Compliance
- AS/NZS 60335.1 – Safety of household and similar electrical appliances
- AS/NZS 60335.2.80 – Particular requirements for fans
- AS/NZS 60598.1 – Luminaires general requirements and tests
- AS/NZS 60598.2.2 – Particular requirements for recessed luminaires
- AS CISPR 15 – Limits and methods of measurement of radio disturbance characteristics of electrical lighting and similar equipment
- AS CISPR 14 – Electromagnetic compatibility - Requirements for household appliances, electric tools and similar apparatus
- AS/NZS 4268 – Electromagnetic compatibility (EMC) - Radiated emission requirements for electrical equipment
Environmental Benefits
- Energy-efficient DC motor reduces power consumption compared to traditional AC fans
- LED lighting with adjustable color temperature reduces energy use and extends lamp life
Warranty Information
6 years total warranty: 4 years onsite and 2 years return to base for domestic use.
Available Now
The Atom 52 inch 3 blade 40W DC ceiling fan with LED light in matt white is available for immediate purchase, ideal for enhancing air circulation and lighting in residential and commercial indoor environments.
