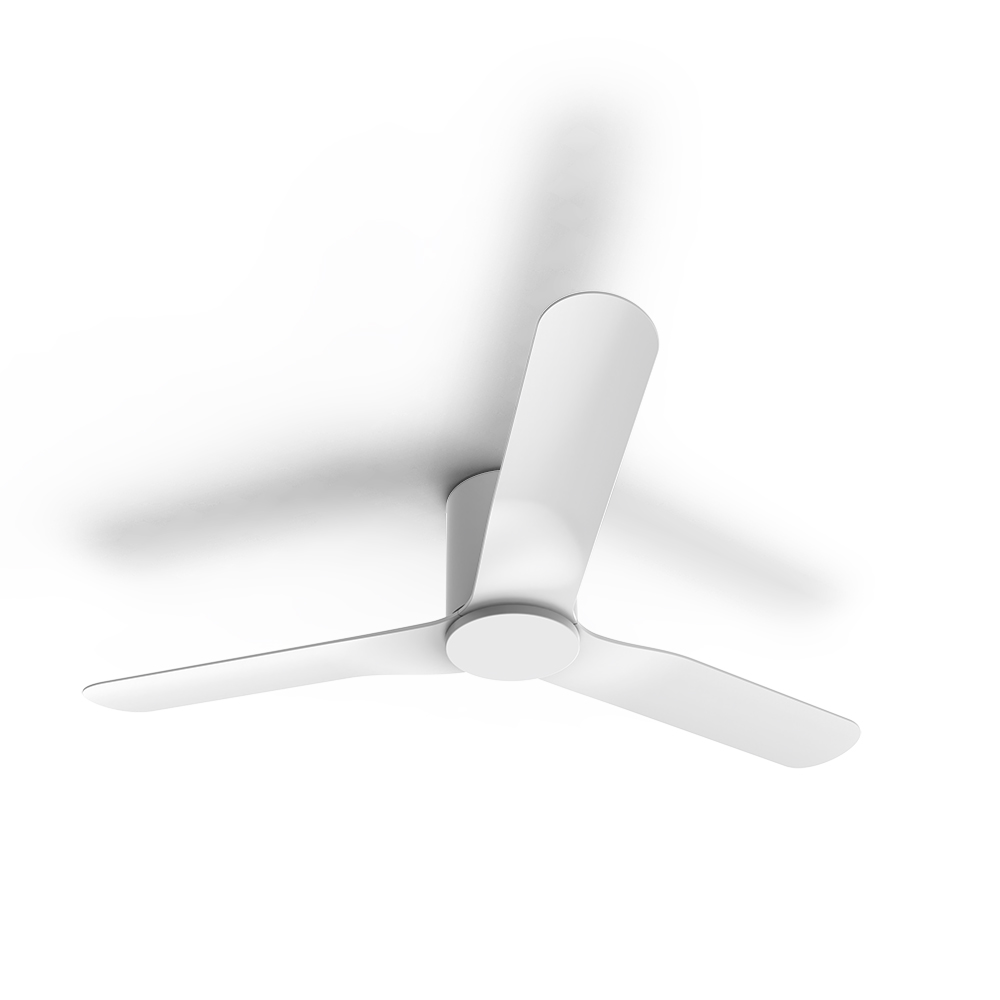

52 Inch 3 Blade 40W DC Hugger Fan with LED Light | Remote Control | IP20 Rated | by atom
The 52 Inch 3 Blade 40W DC Hugger Fan with LED Light is perfect for enhancing indoor comfort in both residential and commercial spaces. Featuring a powerful DC motor with 8 speed settings and a remote control for convenience, this fan also includes an integrated TRI-CCT LED light with warm, cool, and daylight options. Its sleek satin white finish and IP20 rating make it an ideal choice for stylish and efficient cooling solutions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 52 inch ceiling fan with LED light, 3 blade ceiling fan, DC motor ceiling fan, hugger ceiling fan, remote control ceiling fan
Technical Specifications
- IP Rating: IP20
- Body Material: ABS
- Diffuser Material: Polycarbonate
- Working Temperature Range: -10 to 40 °C
- Input Frequency: 50 Hz
- Input Voltage: 230Vac (216Vac - 253Vac range)
- Motor Wattage: 40 W
- Motor Type: DC
- Number of Speeds: 8
- Control: Remote control
- Ceiling Drop: 210 mm
- Blade Pitch: 10°
- Blade Material: ABS
- Fan Size: 1320 mm (52 inch)
- Lamp Colour Rendering Index (CRI): >80
- Lamp Colour Temperature Options: Warm White (3000K), Cool White (4000K), Daylight (5000K)
- Lamp Lumen Output: 1250 lm (Warm White), 1400 lm (Cool White), 1350 lm (Daylight)
- Fan Speeds and Air Movement: Speed 1 - 7W, 130 rpm, 7200 m³/h; Speed 8 - 40W, 230 rpm, 15600 m³/h
- Dimensions (H x L x W): 210mm x 1320mm x 1320mm
- Weight: 7 kg
Key Features
- 52 inch (1320mm) fan size with 3 blades
- 40W DC motor with 8 speed settings
- Remote control operation for convenience
- Integrated TRI-CCT LED light with warm white, cool white, and daylight options
- ABS body and blade material with polycarbonate diffuser
- Ceiling drop of 210 mm and blade pitch of 10°
- IP20 rated for indoor use
Professional Installation Requirements
- Professional installation by a licensed electrician is recommended to ensure compliance with electrical safety standards and optimal fan performance.
Applications
- Residential: Living rooms, bedrooms, kitchens
- Commercial: Offices, retail spaces, hospitality venues
- General: Indoor cooling and lighting solutions
Standards & Compliance
- Complies with AS/NZS 60335.1
- Complies with AS/NZS 60335.2.80
- Complies with AS/NZS 60598.1
- Complies with AS/NZS 60598.2.2
- Complies with AS CISPR 15
- Complies with AS/NZS CISPR 14.1
Environmental Benefits
- Energy-efficient DC motor reduces power consumption compared to traditional AC motors
- Long-lasting LED lighting reduces energy use and maintenance
- Multiple speed settings optimize energy use based on cooling needs
Warranty Information
6 years total warranty: 4 years onsite and 2 years return to base (RTB) for domestic use.
Available Now
The Atom 52 inch 3 Blade 40W DC Hugger Fan with LED Light in white is available now for immediate purchase. Ideal for residential and commercial indoor cooling and lighting applications.
