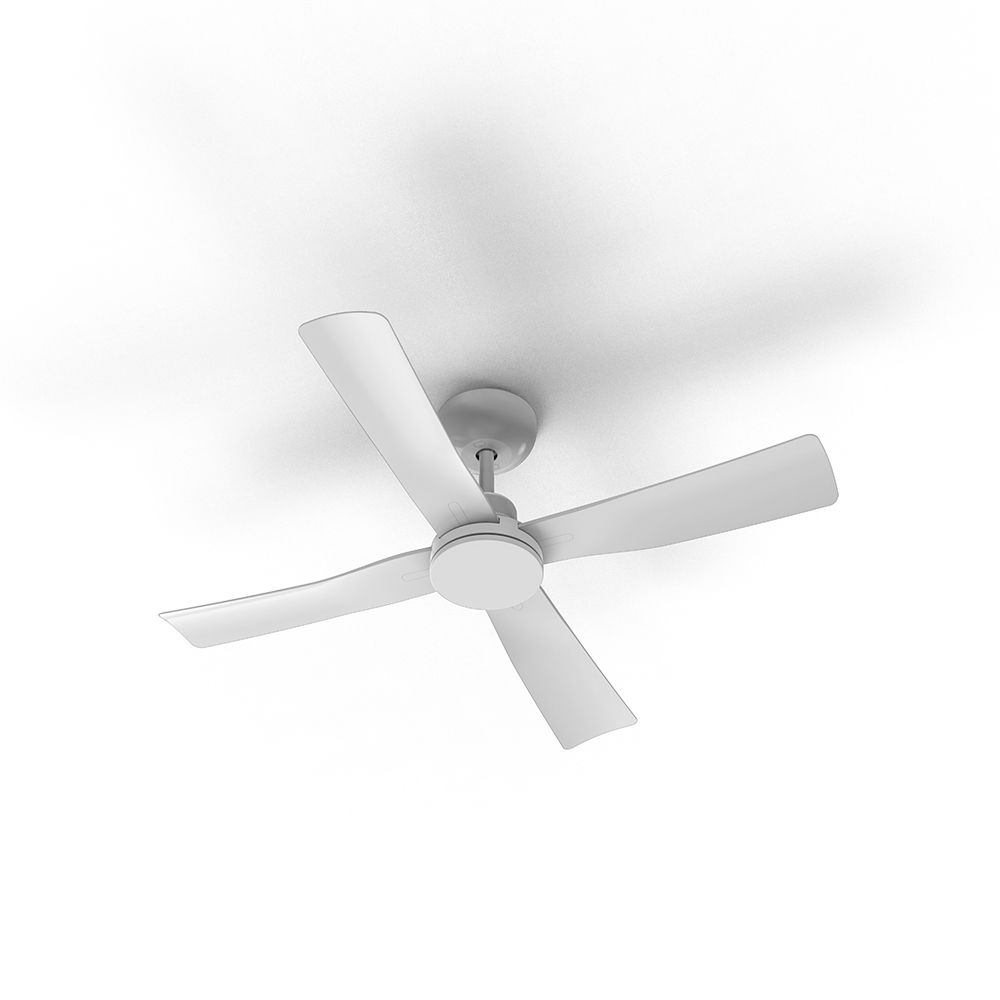

52 Inch 4 Blade 40W DC Ceiling Fan | Satin White | IP20 Rated | by Atom
The 52 inch 4 Blade 40W DC Ceiling Fan in Satin White is designed for efficient indoor cooling, featuring a powerful 40W DC motor with three speed settings. Ideal for residential and commercial spaces, this fan offers a sleek design and durable ABS blades, ensuring long-lasting performance and energy efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 52 inch DC ceiling fan, 4 blade ceiling fan, 40W ceiling fan, Atom ceiling fan white
Technical Specifications
- Motor Wattage: 40W
- Motor Type: DC
- Fan Speeds: 3 (186/145/90 RPM for 52 inch model)
- Airflow: Up to 11100 m³/hr
- Input Voltage: 230Vac (-6%/+10%)
- Input Frequency: 50 Hz
- Working Temperature Range: -10 to 40 °C
- IP Rating: IP20
- Blade Material: ABS
- Ceiling Rake: 15°
- Ceiling Drop: 330 mm
- Control: Wall control
- Dimensions (H x L x W): 330mm x 1320mm x 1320mm
- Weight: 5 kg
Key Features
- 40W DC motor with 3 speed settings
- Wall control for easy operation
- ABS blade material for durability
- Ceiling rake angle of 15°
- Ceiling drop of 330 mm
- IP20 rated for indoor use
- Tri-CCT lighting options available (3000K, 4000K, 5000K)
Professional Installation Requirements
- Professional installation by a licensed electrician is recommended to ensure compliance with electrical safety standards and optimal fan performance.
Applications
- Residential ceiling cooling
- Office and commercial spaces
- Indoor air circulation
Standards & Compliance
- AS/NZS 60335.1
- AS/NZS 60335.2.80
- AS/NZS 60598.1
- AS/NZS 60598.2.2
- AS CISPR 15
- AS/NZS CISPR 14
Environmental Benefits
- Energy-efficient DC motor reduces power consumption
- Long-lasting LED lighting options minimize energy use
- Durable ABS materials extend product lifespan reducing waste
Warranty Information
6 years total warranty: 4 years onsite and 2 years return to base for domestic use.
Available Now
The Atom 52 inch 4 Blade 40W DC Ceiling Fan in Satin White is available for immediate purchase, ideal for residential and commercial indoor cooling applications.
