52 Inch 4 Blade 75W AC Ceiling Fan with LED Light | TRI-CCT Options | IP20 Rated | by atom

BRAND: Atom
SKU: COOLUM/52/LT/BK
$284.70 List price: $344.60
Free pick up (over 25 kg or over 1 meter)
Contact us for delivery cost

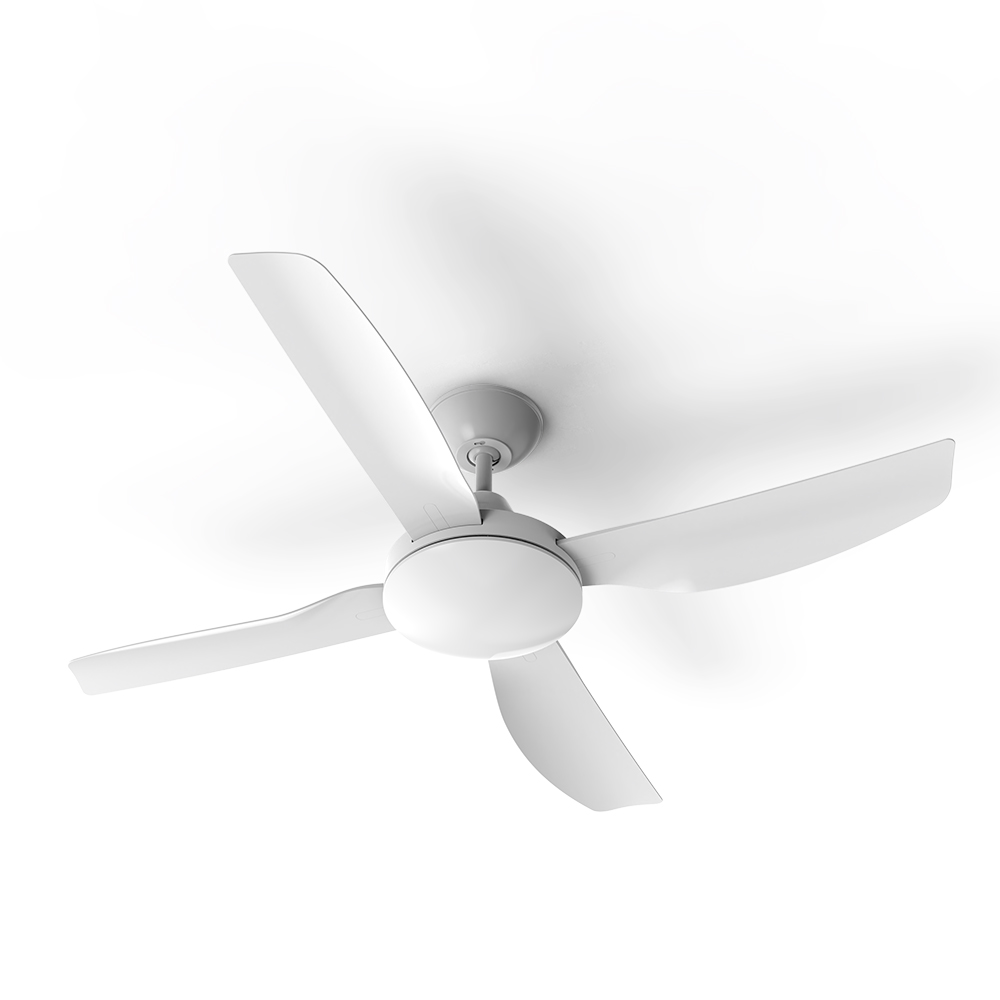

The 52 inch 4 Blade 75W AC Ceiling Fan with LED Light is designed for optimal indoor air circulation and lighting. Featuring a powerful 75W AC motor with three speed settings and integrated TRI-CCT LED light options (warm white, cool white, daylight), this fan is perfect for residential and commercial spaces. With an IP20 rating and a sleek black finish, it combines functionality and style effortlessly.

Alternatively Known As: 52 inch ceiling fan with LED light, 4 blade ceiling fan, AC ceiling fan with light, black ceiling fan 52 inch

Technical Specifications
  • Motor Wattage: 75 W
  • Motor Type: AC
  • Fan Speeds: 3
  • RPM: 257; 170; 120
  • Airflow: 16200; 12000; 8300 m³/hr
  • Input Voltage: 230Vac (216Vac - 253Vac range)
  • Input Frequency: 50Hz
  • Colour Rendering Index (CRI): >80
  • Colour Temperature Options: 3000K, 4000K, 5000K
  • Lamp Output: 1500-1600 lumens
  • Blade Material: ABS
  • IP Rating: IP20
  • Ceiling Rake: 15°
  • Ceiling Drop: 300 mm
  • Blade Pitch: 13°
  • Control Type: Wall control
  • Dimensions (H x L x W): 350mm x 1320mm x 1320mm
  • Weight: 7 kg
Key Features
  • 4 blade design with 52 inch (1320mm) span
  • 75W AC motor with 3 speed settings
  • Integrated TRI-CCT LED light with warm white, cool white, and daylight options
  • Wall control for easy speed and light adjustment
  • ABS blade material with white finish
  • Ceiling rake angle of 15° and blade pitch of 13°
  • IP20 rated for indoor use
  • Operating temperature range from -10 to 40 °C
Professional Installation Requirements
  • Professional installation by a licensed electrician is recommended to ensure compliance with electrical safety standards and optimal performance.
Applications
  • Residential: Living rooms, bedrooms, kitchens
  • Commercial: Offices, retail spaces, hospitality venues
  • General: Indoor cooling and lighting in homes and workplaces
Standards & Compliance
  • AS/NZS 60335.1
  • AS/NZS 60335.2.80
  • AS/NZS 60598.1
  • AS/NZS 60598.2.2
  • AS/NZS CISPR 14
Environmental Benefits
  • Energy-efficient AC motor reduces power consumption.
  • Integrated LED lighting with TRI-CCT reduces need for additional light fixtures.
  • Long-lasting LED lamps minimize waste and replacement frequency.
Warranty Information

6 years total warranty: 4 years onsite and 2 years return to base for domestic use.

Available Now

The Atom 52 inch 4 Blade 75W AC Ceiling Fan with LED Light in black is available for immediate purchase, ideal for enhancing indoor air circulation and lighting in residential and commercial settings.
