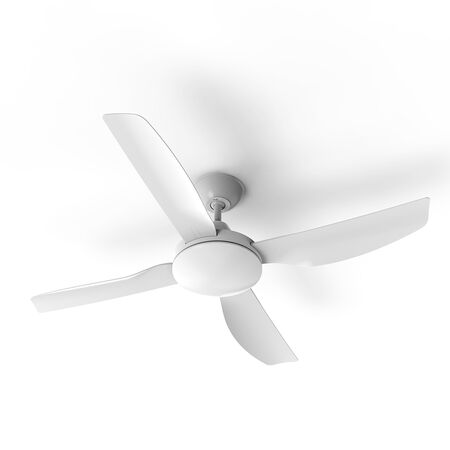

52 Inch 4 Blade 75W AC Ceiling Fan with LED Light | TRI-CCT Options | Wall Control | by atom
The 52 inch 4 Blade 75W AC Ceiling Fan with LED Light is perfect for enhancing indoor air circulation and lighting. Featuring a powerful AC motor with three speed settings and integrated TRI-CCT LED light options (warm white, cool white, daylight), this fan is ideal for both residential and commercial spaces. Its stylish white finish and wall control make it a practical choice for any room.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 52 inch ceiling fan with LED light, 4 blade ceiling fan, AC motor ceiling fan, white ceiling fan with light
Technical Specifications
- Motor Wattage: 75 W
- Motor Type: AC
- Fan Speeds: 3
- RPM: 257; 170; 120
- Airflow: 16200; 12000; 8300 m³/hr
- Input Voltage: 230Vac (216Vac - 253Vac range)
- Input Frequency: 50Hz
- Colour Rendering Index (CRI): >80
- LED Colour Temperatures: 3000K, 4000K, 5000K
- LED Lumens Output: 1500-1600 lm
- Blade Material: ABS
- Diffuser Material: Polycarbonate
- IP Rating: IP20
- Ceiling Drop: 300 mm
- Ceiling Rake: 15°
- Blade Pitch: 13°
- Operating Temperature Range: -10 to 40 °C
- Dimensions (H x L x W): 350mm x 1320mm x 1320mm
- Weight: 7 kg
Key Features
- 4 blade design with 52 inch (1320mm) span
- 75W AC motor with 3 speed settings
- Integrated TRI-CCT LED light with warm white, cool white, and daylight options
- Wall control for easy speed and light adjustment
- ABS blade material and polycarbonate diffuser
- Ceiling rake angle of 15° and blade pitch of 13°
- IP20 rated for indoor use
- Operating temperature range from -10 to 40 °C
Professional Installation Requirements
- Professional installation by a licensed electrician is recommended to ensure compliance with electrical safety standards and optimal fan performance.
Applications
- Residential: Living rooms, bedrooms, kitchens
- Commercial: Offices, retail spaces, hospitality venues
- General: Indoor cooling and air circulation
Standards & Compliance
- AS/NZS 60335.1
- AS/NZS 60335.2.80
- AS/NZS 60598.1
- AS/NZS 60598.2.2
- AS/NZS CISPR 14
Environmental Benefits
- Energy-efficient AC motor reduces power consumption.
- Long-lasting LED lighting minimizes replacement waste.
- Improves indoor air circulation reducing reliance on air conditioning.
Warranty Information
6 years total warranty: 4 years onsite and 2 years return to base for domestic use.
Available Now
The Atom 52 inch 4 Blade 75W AC Ceiling Fan with LED Light in white is available now for immediate purchase. Ideal for residential and commercial indoor cooling and lighting applications.
