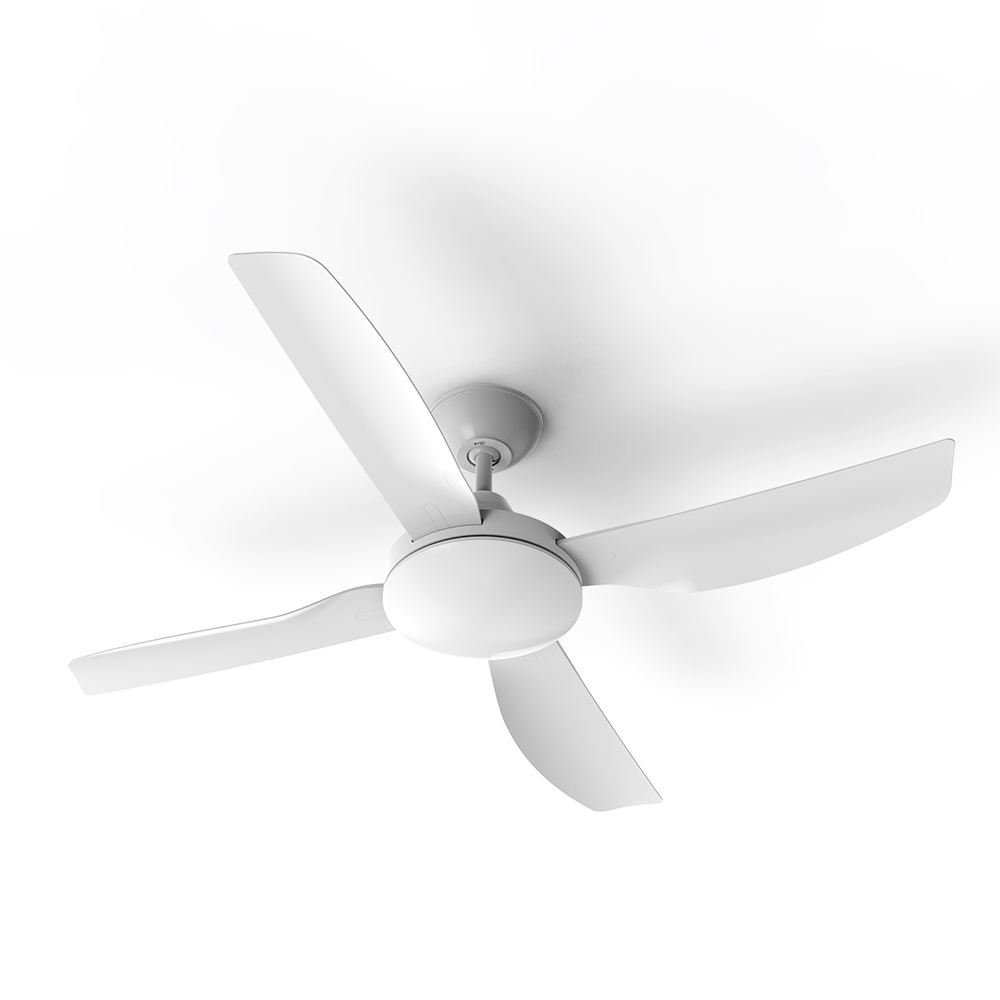

52 Inch 4 Blade 75W AC Ceiling Fan | White Finish | Wall Control | by atom
The 52 inch 4 Blade 75W AC Ceiling Fan is designed for efficient indoor cooling, featuring a sleek white finish and a powerful AC motor with three speed settings. Ideal for residential and commercial spaces, this fan ensures optimal airflow with a blade pitch of 13° and a ceiling rake of 15°. Built with durable ABS materials, it operates quietly and efficiently, making it perfect for living rooms, bedrooms, and offices.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 52 inch ceiling fan, 4 blade ceiling fan, 75W AC ceiling fan, white ceiling fan, indoor ceiling fan
Technical Specifications
- Motor Wattage: 75 W
- Motor Type: AC
- Number of Speeds: 3
- Fan Speeds and Airflow: Speed 1 - 83W, 220 rpm, 16300 m³/h; Speed 2 - 34W, 133 rpm, 9654 m³/h; Speed 3 - 18W, 93 rpm, 6185 m³/h
- Input Voltage: 230Vac (216Vac - 253Vac range)
- Input Frequency: 50Hz
- Blade Material: ABS
- Blade Colour: White
- Ceiling Rake: 15°
- Ceiling Drop: 300 mm
- IP Rating: IP20
- Operating Temperature Range: -10 to 40 °C
- Dimensions (H x L x W): 350mm x 1320mm x 1320mm
- Weight: 7 kg
Key Features
- 4 blade design with 52 inch (1320mm) span
- 75W AC motor with 3 speed settings
- Wall control for easy operation
- Blade pitch of 13° for efficient airflow
- Ceiling rake of 15° and ceiling drop of 300mm
- Durable ABS blade and body material
- Operating temperature range from -10 to 40 °C
- IP20 rated for indoor use
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and optimal fan performance.
Applications
- Residential: Living rooms, bedrooms, patios
- Commercial: Offices, cafes, retail spaces
- General: Indoor cooling and air circulation
Standards & Compliance
- AS/NZS 60335.1
- AS/NZS 60335.2.80
- AS/NZS 60598.1
- AS/NZS 60598.2.2
- AS/NZS CISPR 14
Environmental Benefits
- Energy-efficient AC motor reduces power consumption
- Durable materials extend product lifespan, reducing waste
Warranty Information
6 years total warranty: 4 years onsite and 2 years return to base for domestic use.
Available Now
The Atom 52 inch 4 Blade 75W AC Ceiling Fan White is available for immediate purchase, ideal for residential and commercial indoor cooling applications.
