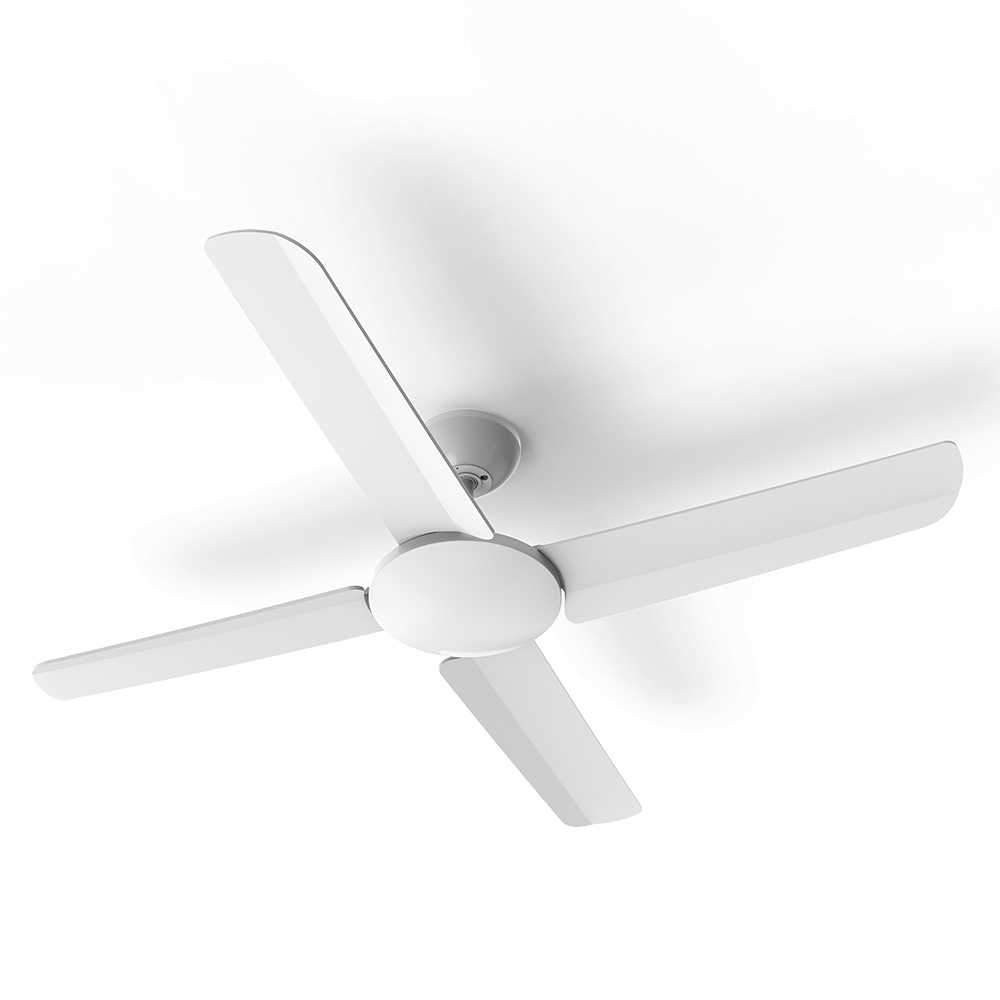

52 Inch 4 Blade IP66 40W DC Ceiling Fan | Remote Control | ABS Blades | Satin White | by atom

BRAND: Atom
SKU: SPLASH/52/WH
$462.60 List price: $559.80
Free pick up (over 25 kg or over 1 meter)
Contact us for delivery cost
The 52 inch 4 Blade IP66 40W DC Ceiling Fan is designed for efficient air circulation in residential, commercial, and outdoor settings. With a powerful 40W DC motor and 8 speed settings, it ensures optimal airflow while being energy-efficient. The fan features a sleek satin white finish and is IP66 rated for protection against dust and water, making it perfect for covered outdoor areas.

Alternatively Known As: 52 inch outdoor ceiling fan, IP66 rated ceiling fan, 40W DC ceiling fan, remote control ceiling fan

Technical Specifications
  • IP Rating: IP66
  • Motor Wattage: 40W
  • Motor Type: DC
  • Number of Speeds: 8
  • Control Type: Remote control
  • Blade Material: ABS
  • Blade Pitch: 12°
  • Ceiling Rake: 15°
  • Ceiling Drop: 310 mm
  • Fan Size: 1320 mm (52 inch)
  • Input Voltage: 230Vac (-6%/+10%)
  • Input Frequency: 50 Hz
  • Operating Temperature Range: -10 to 40 °C
  • Airflow at Speed 8: 12600 m³/h at 240 rpm
  • Dimensions (H x L x W): 310mm x 1320mm x 1320mm
  • Weight: 7 kg
Key Features
  • IP66 rated for protection against dust and powerful water jets
  • 40W DC motor with 8 speed settings for efficient air movement
  • Remote control for convenient operation
  • ABS blade material with 12° blade pitch for optimal airflow
  • Ceiling rake of 15° and ceiling drop of 310mm
Professional Installation Requirements
  • Professional installation by a licensed electrician is recommended to ensure compliance with electrical safety standards and optimal fan performance.
Applications
  • Residential: Living rooms, bedrooms, patios
  • Commercial: Offices, cafes, restaurants
  • Outdoor: Covered outdoor areas requiring IP66 protection
Standards & Compliance
  • Complies with AS/NZS 60335.1
  • Complies with AS/NZS 60335.2.80
  • Complies with AS/NZS CISPR 14
  • Complies with AS/NZS 4268
Environmental Benefits
  • Energy-efficient DC motor reduces power consumption compared to traditional AC fans
  • Durable ABS materials extend product lifespan, reducing waste
  • IP66 rating ensures longevity in harsh environments, minimizing replacement frequency
Warranty Information

6 years total warranty: 4 years onsite and 2 years return to base for domestic use.

Available Now

The Atom 52 inch 4 Blade IP66 40W DC Ceiling Fan in white is available now for immediate purchase. Ideal for residential, commercial, and outdoor covered applications requiring durable and efficient air circulation.
