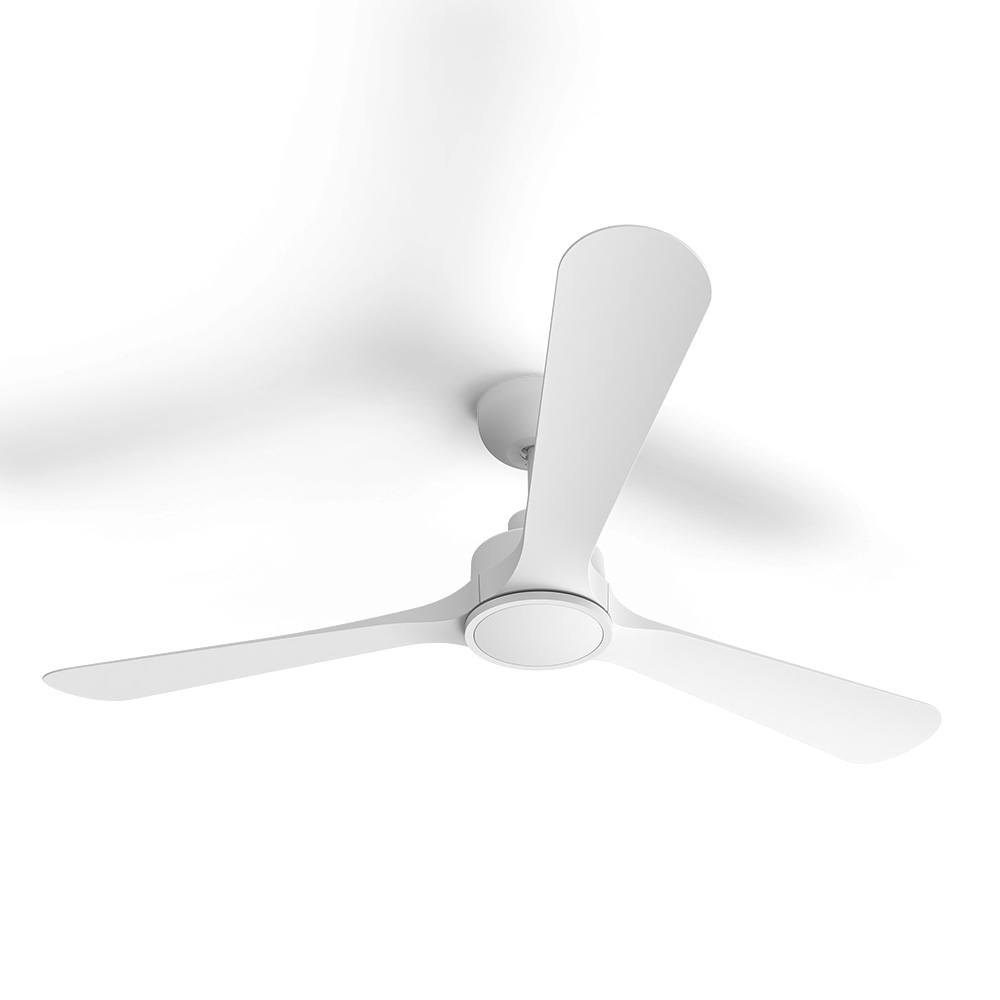

54 Inch 3 Blade 32W DC Ceiling Fan with LED Light | Remote Control | IP20 Rated | by atom
The 54 inch 3 Blade 32W DC Ceiling Fan with LED Light is perfect for enhancing indoor spaces with efficient cooling and stylish lighting. Featuring a powerful 32W DC motor with 8 speed settings and a remote control, this fan ensures optimal airflow and comfort. Ideal for residential and commercial use, it operates quietly and efficiently, making it a great addition to any living room, bedroom, or office.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 54 inch DC ceiling fan with LED light, 3 blade ceiling fan white, Atom 1370mm ceiling fan, remote control ceiling fan
Technical Specifications
- Motor Wattage: 32 W
- Motor Type: DC
- Number of Speeds: 8
- Fan Speeds and Airflow:
- Speed 1: 4 W, 85 rpm, 5400 m³/h
- Speed 2: 6 W, 107 rpm, 6400 m³/h
- Speed 3: 10 W, 135 rpm, 7800 m³/h
- Speed 4: 14 W, 155 rpm, 9000 m³/h
- Speed 5: 17 W, 175 rpm, 9800 m³/h
- Speed 6: 21 W, 185 rpm, 10700 m³/h
- Speed 7: 25 W, 200 rpm, 11400 m³/h
- Speed 8: 32 W, 220 rpm, 12500 m³/h
- Input Voltage: 230Vac (216Vac - 253Vac range)
- Input Frequency: 50 Hz
- Colour Rendering Index (CRI): >80
- CCT Configuration: TRI-CCT
- Beam Angle: 120°
- Body Material: ABS
- Blade Material: ABS
- Diffuser Material: Polycarbonate
- IP Rating: IP20
- Control: Remote control
- Ceiling Rake: 15°
- Ceiling Drop: 347 mm
- Blade Pitch: 10°
- Working Temperature Range: -10 to 40 °C
- Dimensions (H x L x W): 347mm x 1370mm x 1370mm
- Weight: 7 kg
Key Features
- 54 inch (1370mm) fan size with 3 ABS blades
- 32W DC motor with 8 speed settings controlled via remote
- Integrated TRI-CCT LED light with >80 CRI and 120° beam angle
- Ceiling rake of 15° and blade pitch of 10° for optimal airflow
- IP20 rated suitable for indoor use
- Operating temperature range from -10 to 40 °C
Professional Installation Requirements
- Professional installation by a licensed electrician is recommended to ensure compliance with electrical safety standards and optimal fan performance.
Applications
- Residential: Living rooms, bedrooms, patios
- Commercial: Offices, cafes, retail spaces
- General: Indoor cooling and lighting solutions
Standards & Compliance
- AS/NZS 60335.1
- AS/NZS 60335.2.80
- AS/NZS CISPR 14
- AS/NZS 4268
Environmental Benefits
- Energy-efficient DC motor reduces power consumption compared to traditional AC fans
- Integrated LED lighting with TRI-CCT reduces need for additional light fixtures
- Long lifespan reduces waste and replacement frequency
Warranty Information
6 years total warranty: 4 years onsite and 2 years return to base for domestic use.
Available Now
The Atom 54 inch 3 Blade 32W DC Ceiling Fan with LED Light in white is available for immediate purchase, ideal for residential and commercial indoor cooling and lighting applications.
