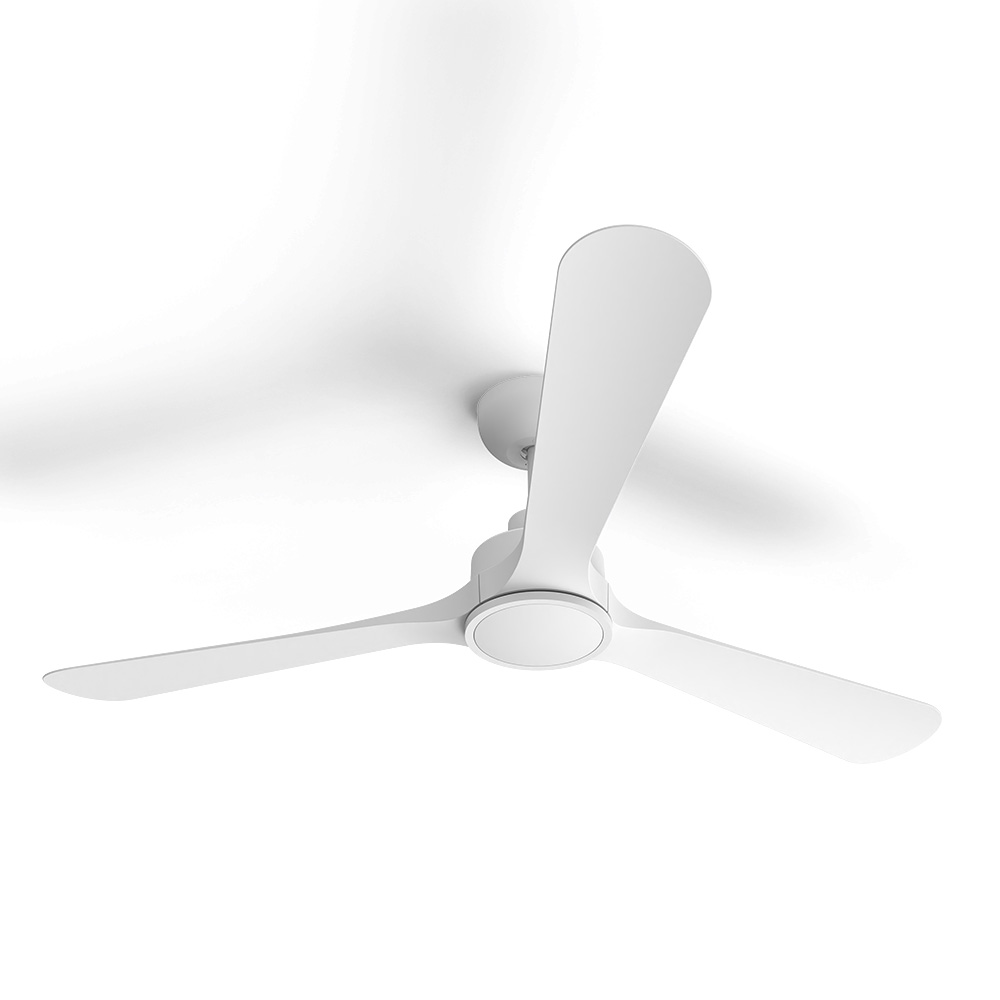

54 Inch 3 Blade 32W DC Ceiling Fan | Remote Control | IP20 Rated | Satin White | by atom
The 54 inch 3 Blade 32W DC Ceiling Fan is designed for efficient air movement with its powerful DC motor and 8 speed settings. Ideal for both residential and commercial spaces, this fan features a sleek satin white finish and remote control operation for convenience. With an IP20 rating, it's perfect for indoor use, ensuring a quiet and comfortable environment.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 54 inch DC ceiling fan, 3 blade ceiling fan, 32W ceiling fan, white ceiling fan, remote control ceiling fan
Technical Specifications
- Motor Wattage: 32 W
- Motor Type: DC
- Number of Speeds: 8
- Fan Size: 1370 mm (54 inch)
- Blade Material: ABS
- Blade Pitch: 10°
- Ceiling Rake Compatibility: 15°
- Ceiling Drop: 347 mm
- Input Voltage: 230Vac (216-253Vac range)
- Input Frequency: 50 Hz
- Working Temperature Range: -10 to 40 °C
- IP Rating: IP20
- Colour Rendering Index (CRI): >80
- Beam Angle: 120°
- Control: Remote control
- Fan Speeds and Airflow:
- Speed 1: 4 W, 85 rpm, 5400 m³/h
- Speed 2: 6 W, 107 rpm, 6400 m³/h
- Speed 3: 10 W, 135 rpm, 7800 m³/h
- Speed 4: 14 W, 155 rpm, 9000 m³/h
- Speed 5: 17 W, 175 rpm, 9800 m³/h
- Speed 6: 21 W, 185 rpm, 10700 m³/h
- Speed 7: 25 W, 200 rpm, 11400 m³/h
- Speed 8: 32 W, 220 rpm, 12500 m³/h
- Dimensions (H x L x W): 347mm x 1370mm x 1370mm
- Weight: 6 kg
Key Features
- 32W DC motor with 8 speed settings for efficient air movement
- Remote control for convenient operation
- ABS blade material with 10° blade pitch for optimal airflow
- Suitable for ceiling rakes up to 15°
- Tri-CCT lighting configuration with CRI >80
- IP20 rated for indoor use
- Quiet operation with speeds ranging from 85 to 220 rpm
Professional Installation Requirements
- Professional installation by a licensed electrician is recommended to ensure compliance with electrical safety standards and optimal fan performance.
Applications
- Residential: Living rooms, bedrooms, patios
- Commercial: Offices, cafes, retail spaces
- General: Indoor cooling and air circulation
Standards & Compliance
- AS/NZS 60335.1 – Safety of household and similar electrical appliances
- AS/NZS 60335.2.80 – Particular requirements for fans
- AS/NZS CISPR 14 – Electromagnetic compatibility
- AS/NZS 4268 – Electromagnetic compatibility (EMC) limits for household appliances
Environmental Benefits
- Energy-efficient DC motor reduces power consumption compared to traditional AC fans
- Low wattage operation minimizes environmental impact
- Long-lasting ABS blades reduce need for frequent replacements
Warranty Information
6 years total warranty: 4 years onsite and 2 years return to base for domestic use.
Available Now
The Atom 54 inch 3 Blade 32W DC Ceiling Fan White is available for immediate purchase, ideal for residential and commercial indoor cooling applications.
