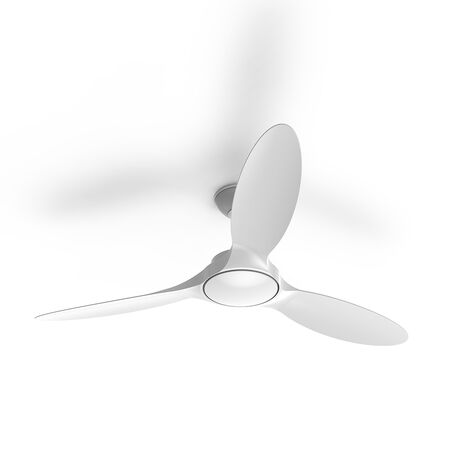

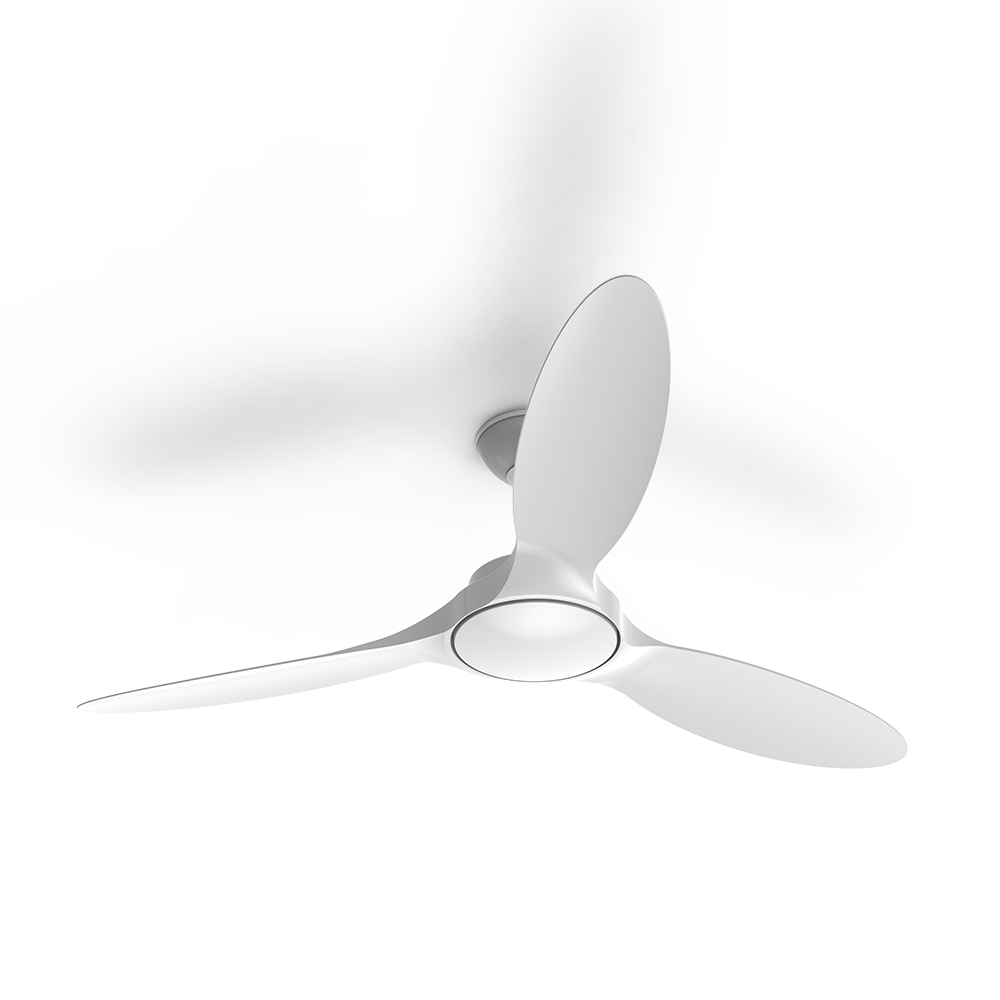

54 Inch 3 Blade 40W DC Ceiling Fan with LED Light | Remote Control | IP20 Rated | by atom
The 54 inch 3 Blade 40W DC Ceiling Fan with LED Light is perfect for enhancing indoor comfort in both residential and commercial spaces. Featuring a powerful DC motor with 8 speed settings and a remote control for easy operation, this fan ensures efficient air movement and quality illumination with its Tri-CCT LED light. Designed for optimal airflow with a 15° blade pitch, it operates quietly and efficiently, making it an ideal choice for living rooms, offices, and cafes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 54 inch DC ceiling fan with LED light, 3 blade ceiling fan, Atom white ceiling fan, energy efficient ceiling fan
Technical Specifications
- Motor Wattage: 40 W
- Motor Type: DC
- Number of Speeds: 8
- Fan Size: 1370 mm (54 inch)
- Blade Material: ABS
- Blade Pitch: 15°
- Ceiling Rake: 15°
- Ceiling Drop: 300 mm
- Input Voltage: 230Vac (216Vac - 253Vac range)
- Input Frequency: 50 Hz
- Working Temperature Range: -10 to 40 °C
- Colour Rendering Index (CRI): >80
- CCT Configuration: Tri-CCT
- Air Movement at Max Speed: 16200 m³/h
- Control: Remote control
- IP Rating: IP20
- Dimensions (H x L x W): 350mm x 1370mm x 1370mm
- Weight: 7 kg
Key Features
- 40W DC motor with 8 speed settings for efficient air movement
- Remote control for convenient operation
- Tri-CCT LED light with CRI >80 for quality illumination
- ABS blade material with 15° blade pitch for optimal airflow
- Ceiling rake of 15° and ceiling drop of 300mm
- IP20 rated suitable for indoor use
- Operating temperature range from -10 to 40 °C
Professional Installation Requirements
- Professional installation by a licensed electrician is recommended to ensure compliance with electrical safety standards and optimal fan performance.
Applications
- Residential: Living rooms, bedrooms, kitchens
- Commercial: Offices, cafes, retail spaces
- General: Indoor cooling and lighting solutions
Standards & Compliance
- AS/NZS 60335.1
- AS/NZS 60335.2.80
- AS CISPR 14
- AS/NZS 4268
- AS/NZS 60598.1
- AS/NZS 60598.2.2
- AS CISPR 15
Environmental Benefits
- Energy-efficient DC motor reduces power consumption
- LED lighting provides low energy usage and long lifespan
- Multiple speed settings optimize energy use based on cooling needs
Warranty Information
6 years total warranty: 4 years onsite and 2 years return to base (RTB) for domestic use.
Available Now
The Atom 54 inch 3 Blade 40W DC Ceiling Fan with LED Light in white is available for immediate purchase, ideal for residential and commercial indoor cooling and lighting applications.
