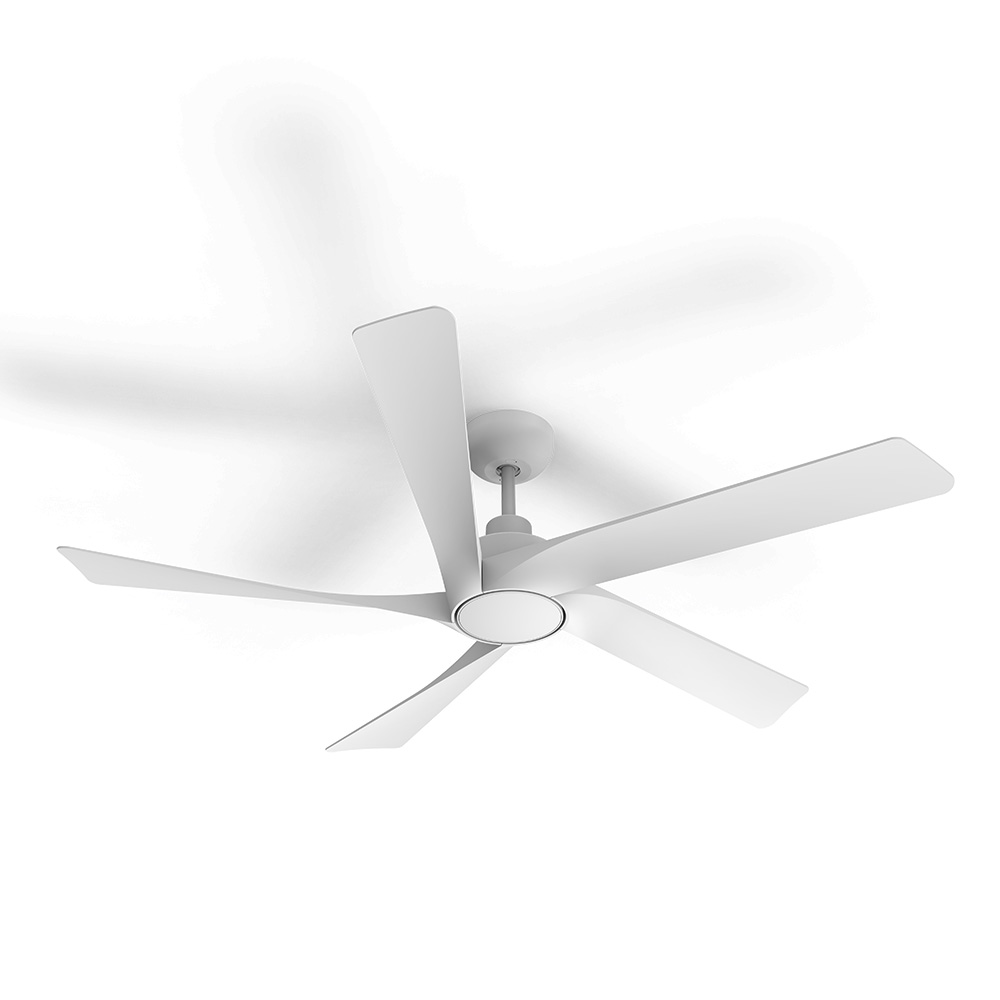

54 Inch 5 Blade 34W DC Ceiling Fan with LED Light | Remote Control | IP20 Rated | by atom
The 54 inch 5 Blade 34W DC Ceiling Fan with LED Light is perfect for both residential and commercial spaces, providing efficient cooling and stylish illumination. With a powerful DC motor offering 8 speed settings and a remote control for convenience, this fan ensures optimal airflow up to 13,200 m³/h. Its sleek black finish and energy-efficient LED light make it a modern addition to any room.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 54 inch DC ceiling fan with LED light, 5 blade ceiling fan, Atom Maroubra 54 fan, remote control ceiling fan
Technical Specifications
- IP Rating: IP20
- Input Voltage: 230Vac (216Vac - 253Vac range)
- Input Frequency: 50 Hz
- Motor Wattage: 34 W
- Motor Type: DC
- Number of Speeds: 8
- Fan Speeds and Airflow: Speed 1 - 4W, 81 rpm, 5700 m³/h; Speed 8 - 34W, 195 rpm, 13200 m³/h
- Blade Material: ABS
- Body Material: ABS
- Diffuser Material: Polycarbonate
- Colour Rendering Index (CRI): >80
- CCT Configuration: Tri-CCT
- Beam Angle: 120°
- Ceiling Rake: 15°
- Blade Pitch: 30°
- Ceiling Drop: 345 mm
- Working Temperature Range: -10 to 40 °C
- Control: Remote control
- Dimensions (H x L x W): 345mm x 1370mm x 1370mm
- Weight: 7 kg
Key Features
- 5 blades with 54 inch (1370mm) fan size
- 34W DC motor with 8 speed settings controlled by remote
- Tri-CCT LED light with >80 CRI and 120° beam angle
- ABS blade and body material with polycarbonate diffuser
- Ceiling rake of 15° and blade pitch of 30°
- Operating temperature range from -10 to 40 °C
- Air movement up to 13,200 m³/h at highest speed
Professional Installation Requirements
- Professional installation by a licensed electrician is recommended to ensure compliance with electrical safety standards and optimal fan performance.
Applications
- Residential: Living rooms, bedrooms, patios
- Commercial: Offices, cafes, retail spaces
- General: Indoor cooling and lighting solutions
Standards & Compliance
- Complies with AS/NZS 60335.1
- Complies with AS/NZS 60335.2.80
- Complies with AS/NZS CISPR 14
- Complies with AS/NZS 4268
Environmental Benefits
- Energy-efficient DC motor reduces power consumption.
- LED lighting provides low energy usage and long lifespan.
Warranty Information
6 years total warranty: 4 years onsite and 2 years return to base for domestic use.
Available Now
The Atom 54 inch 5 Blade 34W DC Ceiling Fan with LED Light in black is available for immediate purchase, ideal for residential and commercial indoor cooling and lighting applications.
