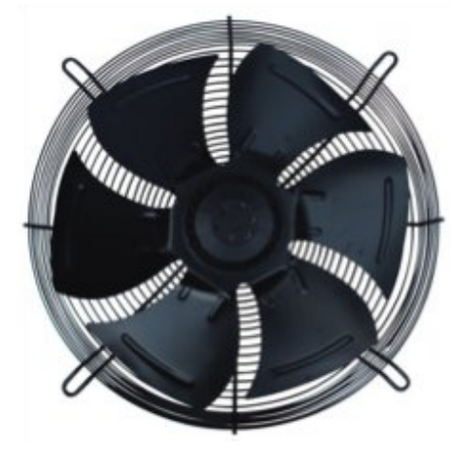

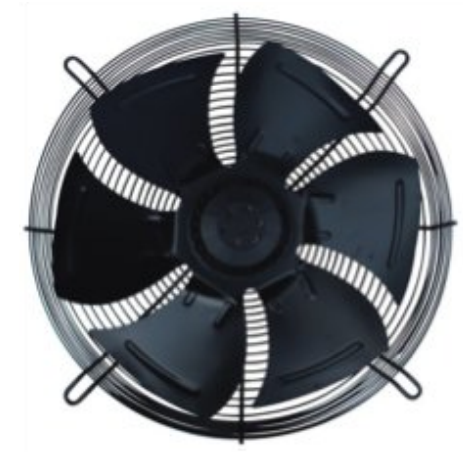

550mm Fan Blade | High Efficiency | IP44 & IP55 Rated | 30,000 Hour Lifetime | by Aspen Pumps
The 550mm fan blade is designed for high efficiency and compatibility with single and three-phase shaded pole motors. With an impressive operating temperature range of -30°C to 60°C and a rated lifetime of 30,000 hours, this fan blade is perfect for cooling and ventilation in HVAC systems. CE, UL, CCC approved, and RoHS compliant, it ensures reliable performance in industrial and commercial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 550mm Fan Blade | High Efficiency | IP44 & IP55 Rated | 30,000 Hour Lifetime | by Aspen Pumps
Brand: Aspen Pumps
SKU: 500-4E-550-S-137/50G
Alternatively Known As: 550mm motor fan blade, 550mm cooling fan blade, shaded pole motor fan blade
Technical Specifications
- Fan Blade Diameter: 550mm
- Operating Temperature Range: -30°C to 60°C
- Motor Compatibility: Single phase and three phase shaded pole motors
- Rated Lifetime: 30,000 hours
- IP Rating: IP44, IP55
- Insulation Class: B or F
- Approvals: CE, UL, CCC, RoHS
- Connection: Terminal box
- Air Direction: Standard over motor
- Dimensions (H x L x W): 50mm x 550mm x 550mm
- Weight: 2.5 kg
Key Features
- High efficiency external rotor motor compatibility
- CE, UL, CCC approved and RoHS compliant
- Operating temperature range from -30°C to 60°C
- Single phase and three phase motor compatibility
- Rated for 30,000 hours of operation
- IP44 and IP55 rated with insulation class B or F
- Terminal box connection for easy installation
- Standard air direction over motor
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper fit and motor compatibility.
Applications
- Cooling and ventilation in HVAC systems
- Replacement fan blade for shaded pole motors
- Industrial and commercial motor accessories
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- High efficiency design reduces energy consumption
- RoHS compliant materials minimize environmental impact
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Aspen Pumps 550mm fan blade is available for immediate purchase, ideal for use as a replacement or upgrade in shaded pole motor applications.
