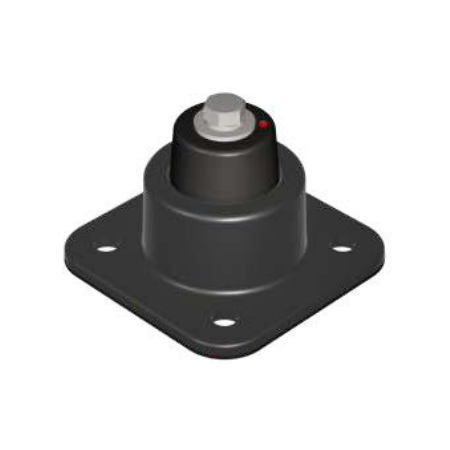

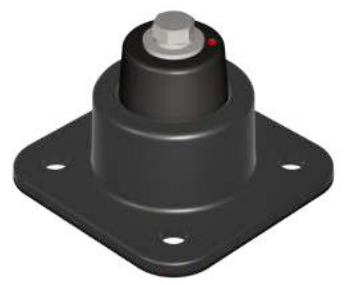

55A Duro Seismic Vibration Mount | 2000 N Compression | 900 N Tension | 450 N Shear | Yellow 50mm | by Aspen Pumps
The 55A Duro Seismic Vibration Mount is designed for effective seismic isolation, featuring a robust 2000 N compression capacity and a durable 55A durometer yellow elastomer. Ideal for industrial machinery and HVAC systems, this mount minimizes noise and vibration, ensuring compliance with building codes and extending equipment lifespan during seismic events.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 55A Duro Seismic Vibration Mount | 2000 N Compression | 900 N Tension | 450 N Shear | Yellow 50mm | by Aspen Pumps
Brand: Aspen Pumps
SKU: ASRM5055
Alternatively Known As: Seismic Vibration Mount, High Seismic Isolator, 55A Duro Vibration Mount, Yellow Seismic Mount 50mm
Technical Specifications
- Rated Capacity Compression: 2000 N
- Rated Capacity Tension: 900 N
- Rated Capacity Shear: 450 N
- Material: 55A durometer elastomer
- Height: 50mm
- Dimensions (H x L x W): 50mm x 50mm x 50mm
- Weight: 0.2 kg
Key Features
- Rated capacity compression: 2000 N
- Rated capacity tension: 900 N
- Rated capacity shear: 450 N
- Durable 55A durometer yellow elastomer
- 50mm height for effective seismic isolation
Professional Installation Requirements
- Installation by a qualified professional is recommended to ensure proper seismic isolation and compliance with building codes.
Applications
- Seismic vibration isolation for mechanical and electrical equipment
- Industrial machinery mounting
- HVAC systems requiring vibration damping
- General purpose seismic mounts for buildings and infrastructure
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Reduces structural damage during seismic events, extending equipment lifespan
- Minimizes noise and vibration pollution in buildings
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Aspen Pumps 55A Duro Yellow 50mm High Seismic Mount is available for immediate purchase, ideal for seismic vibration isolation in industrial and commercial applications.
