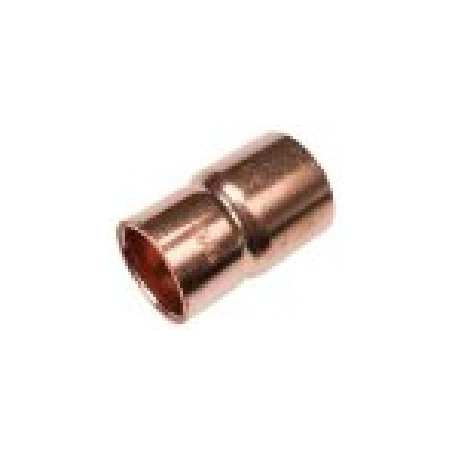

5/8 Coupling XHP w/Stop | CuFe2p Copper Iron Alloy | 130 Bar Pressure Rating | TüV Certified | by Aspen Pumps
The 5/8 Coupling XHP with Stop is designed for high pressure refrigeration systems, made from durable CuFe2p copper iron alloy for exceptional corrosion resistance. Certified to TüV standards, it supports R744 refrigerant at a pressure rating of 130 bar and temperature up to 150°C, making it ideal for industrial and commercial HVAC applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 5/8 Coupling XHP w/Stop | CuFe2p Copper Iron Alloy | 130 Bar Pressure Rating | TüV Certified | by Aspen Pumps
Brand: Aspen Pumps
SKU: 121-129270-58
Alternatively Known As: 5/8 High Pressure Copper Coupling with Stop, XHP Coupler for R744, Copper Iron Alloy Coupling
Technical Specifications
- Material: CuFe2p Copper Iron Alloy
- Pressure Rating: 130 bar
- Temperature Rating: Up to 150°C
- Compliance: ASTM B 280, AS5149.2
- Certification: TüV Certified
- Joining Method: Traditional Brazed Joining with Magnetic Identification
- Dimensions (H x L x W): 30mm x 50mm x 30mm
- Weight: 0.1 kg
Key Features
- Made from CuFe2p copper iron alloy for high corrosion resistance
- Certified to TüV for quality assurance
- Suitable for R744 refrigerant at 130 bar and 150°C
- Traditional brazed joining method with magnetic identification
- Compliant with ASTM B 280 and AS5149.2 standards
Professional Installation Requirements
- Installation should be performed by a qualified HVAC technician experienced with high pressure refrigeration systems and brazed copper fittings.
Applications
- High pressure refrigeration systems using R744 (CO2)
- Industrial and commercial HVAC systems
- Systems requiring high corrosion resistance and reliable brazed joints
Standards & Compliance
- Complies with AS/NZS 5149.2 Refrigeration systems and heat pumps - Safety and environmental requirements
Environmental Benefits
- Supports use in environmentally friendly R744 (CO2) refrigerant systems
- Durable materials reduce need for frequent replacements, minimizing waste
Warranty Information
Warranty details available upon request from Aspen Pumps, typically covering manufacturing defects.
Available Now
The Aspen Pumps 5/8 Coupling XHP with Stop is available for immediate purchase, ideal for high pressure refrigeration and HVAC applications.
