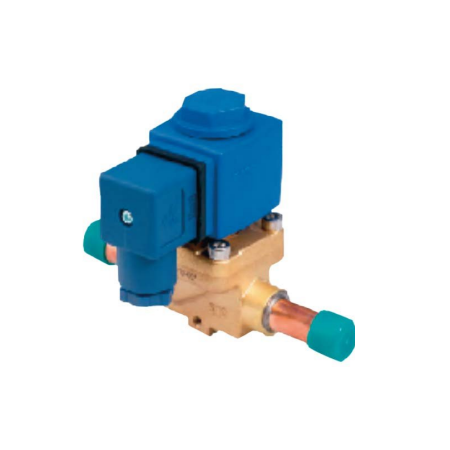

5/8" MF Solenoid Valve | High Flow | Wide Operating Temperature | Certified Safety | by Aspen Pumps
The 5/8" MF Solenoid Valve is designed for HVAC and refrigeration systems, offering high flow capabilities and a wide operating temperature range from -40°C to 105°C. With a maximum operating pressure of 31 bar and compatibility with HCFC, HFC, and A2L refrigerants, this valve ensures precise flow control and reliable performance in industrial and commercial cooling applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 5/8" MF Solenoid Valve | High Flow | Wide Operating Temperature | Certified Safety | by Aspen Pumps
Brand: Aspen Pumps
SKU: 706-10
Alternatively Known As: 5/8 inch Male Flare Solenoid Valve, High Flow Solenoid Valve, Refrigeration Solenoid Valve
Technical Specifications
- Length: 104 mm
- Height: 104 mm
- CV (Flow Coefficient): 3
- Liquid Kw for R-134A: 48.3
- Liquid Kw for R-407c: 52.3
- Liquid Kw for R-404a: 36.5
- Operating Temperature Range: -40°C to 105°C
- Maximum Operating Pressure: 31 bar
- Safe Working Pressure (SWP): 43 bar
- Electrical Connection: Din plug
- Dimensions (H x L x W): 104mm x 104mm x 50mm
- Weight: 0.5 kg
Key Features
- Suitable for HCFC, HFC, and A2L refrigerants
- Wide operating temperature range from -40°C to 105°C
- High maximum operating pressure up to 31 bar
- Din plug electrical connection
- Certified UL, VDE, and CQC for safety and quality
- SWP (Safe Working Pressure) of 43 bar
Professional Installation Requirements
- Installation should be performed by a qualified HVAC technician or licensed plumber to ensure compliance with safety standards and optimal system performance.
Applications
- HVAC systems using HCFC, HFC, and A2L refrigerants
- Refrigeration systems requiring precise flow control
- Industrial and commercial cooling applications
Standards & Compliance
- Complies with AS/NZS 60035 – Electrical Equipment in Explosive Atmospheres
Environmental Benefits
- Compatible with low global warming potential refrigerants (A2L)
- Supports efficient refrigeration system operation reducing energy consumption
Warranty Information
Standard manufacturer warranty applies; please refer to Aspen Pumps for specific warranty details.
Available Now
The Aspen Pumps 5/8" MF Solenoid Valve is available for immediate purchase, ideal for HVAC and refrigeration system applications requiring reliable solenoid valve performance.
