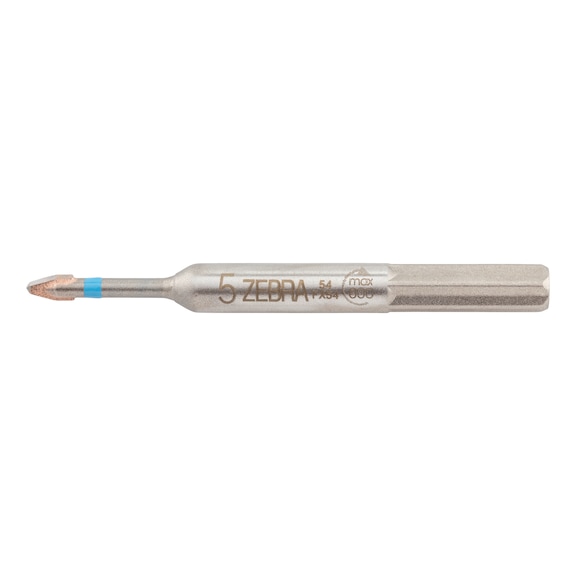

5mm Carbide Tile Drill Bit | Chip-Free Drilling | Polygon Shank Design | by Wurth
The 5mm Carbide Tile Drill Bit is engineered for precise, chip-free drilling in hard materials like stoneware, glass, and porcelain. With a unique polygon shank to prevent slippage and a drill depth indicator for monitoring wear, this bit is perfect for professional tiling and construction projects. Designed for rotary drilling only, it ensures optimal performance without the need for cooling.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 5mm Carbide Tile Drill Bit | Chip-Free Drilling | Polygon Shank Design | by Wurth
Brand: Wurth
SKU: 641415011
Alternatively Known As: Tile drill bit, carbide drill bit for tiles, porcelain drill bit, glass drill bit, stoneware drill bit
Technical Specifications
- Diameter: 5 mm
- Length: 103 mm
- Shank diameter: 10 mm
- Tool holding device: Polygon shank
- Versatility rating: 1 of 4 points
- Service life rating: 3 of 4 points
- Drilling speed rating: 2 of 4 points
- Bore hole quality rating: 4 of 4 points
- Max speed: 800 rpm for 5 mm diameter
- Optimum contact pressure: 35-45 kg
- Not suitable for impact drilling; rotary drilling only
- Dimensions (H x L x W): 103mm x 103mm x 5mm
- Weight: 0.1 kg
Key Features
- Specially designed carbide plate geometry for precise, chip-free drilling
- New polygon shank prevents slippage and ensures optimal torque transmission
- Drill depth indicator for monitoring drill bit wear
- No cooling required during drilling
- Not suitable for impact drilling; rotary drilling only
Professional Installation Requirements
- Recommended to be used by professionals or experienced users familiar with rotary drilling techniques to avoid breakage and ensure optimal performance.
Applications
- Drilling extremely hard stoneware tiles up to Mohs hardness 9
- Drilling glass and porcelain materials
- Suitable for rotary drilling in construction and tiling projects
Standards & Compliance
- Complies with AS/NZS 3123 – Industrial Plugs and Socket-Outlets
Environmental Benefits
- Durable carbide construction extends tool life, reducing waste
- No cooling required reduces water usage and environmental impact
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
The Wurth 5mm Carbide Tile Drill Bit is available for immediate purchase. Ideal for professional tiling and construction applications requiring precise drilling in hard materials.
