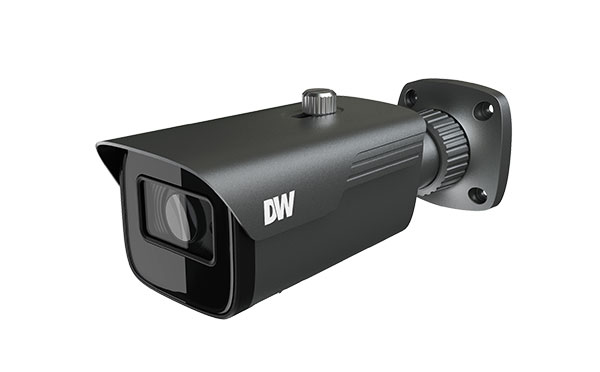

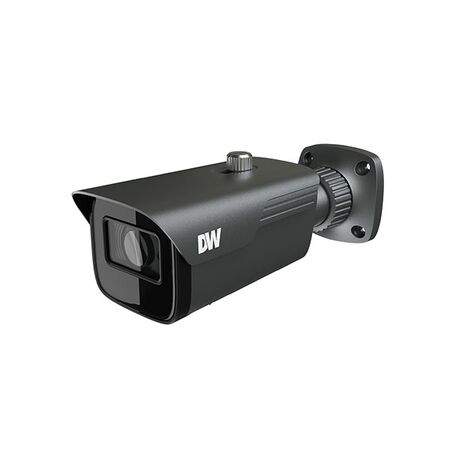

5MP Bullet Camera 2.8mm Lens IP67 Smart IR 50m Ness
Ness 5MP bullet camera features a 2.8mm lens, IP67 waterproofing and Smart IR 50m. Ideal for CCTV installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Ness 5MP Bullet Camera, Digital Watchdog DWC-MB95Wi28T, 5MP Outdoor IP Bullet Camera
Technical Specifications
- Image Sensor: 5MP 1/2.7-inch CMOS
- Resolution: 2592 x 1944 pixels
- Lens: 2.8mm fixed lens, F1.6
- Field of View: 98.5°
- Infrared Range: 50m Smart IR
- Frame Rate: Up to 30fps
- Video Compression: H.265, H.264 and MJPEG
- Wide Dynamic Range: True WDR, 120dB
- Storage: MicroSD/SDHC/SDXC up to 256GB
- Network: 10/100 Ethernet, IPv4 and IPv6
- Power: 12V DC or IEEE 802.3af PoE Class 3
- Power Consumption: 9W
- Protection: IP67-rated and IK10 impact-resistant
- Operating Temperature: -30°C to 60°C
- Operating Humidity: Up to 95% RH, non-condensing
- ONVIF: Profile S conformant
- Housing: Metal bullet housing
- Certifications: CE, FCC and RoHS
- Dimensions (H x L x W): 70.6mm x 220.8mm x 80.5mm
- Weight: 0.69 kg
Key Features
- 5MP image resolution for detailed surveillance footage
- 2.8mm fixed lens with 98.5° field of view
- Smart IR illumination up to 50m for night vision
- IP67-rated housing for outdoor dust and water protection
- IK10 impact-resistant construction
- True WDR and 3D digital noise reduction
- Line crossing, perimeter intrusion and object classification analytics
- H.265, H.264 and MJPEG codec support
- MicroSD recording up to 256GB
- 12V DC and PoE Class 3 power options
- ONVIF compatibility for integration with supported video management systems
Professional Installation Requirements
- Installation should be performed by a suitably qualified CCTV or security technician. Provide a compatible 12V DC supply or IEEE 802.3af PoE connection, correctly seal outdoor cable entries and configure the camera in accordance with the surveillance system design and applicable electrical requirements.
Applications
- Outdoor commercial CCTV installations
- Residential security surveillance
- Industrial and warehouse monitoring
- Perimeter and entry-point monitoring
- Retail, office and car park surveillance
- IP-based video surveillance systems
Standards & Compliance
- AS/NZS 60529: Applicable enclosure classification standard for the stated IP67 ingress-protection rating; product-specific certification is not stated.
- AS/NZS 62676.1.1:2020: Applicable video surveillance system requirements for CCTV installations; product-specific conformity is not stated.
Environmental Benefits
- RoHS compliance supports restriction of hazardous substances in the electrical product
- Metal housing materials can be recovered through appropriate electronics and metal recycling streams
- IP67 and IK10 construction can help extend service life and reduce premature replacement waste
- Low 9W operating consumption helps limit energy use compared with higher-powered surveillance hardware
Warranty Information
3-year warranty. Ness Corporation’s general warranty policy states that Ness-manufactured or supplied products are covered for 3 years from the date of purchase.
Available Now
Available through Ness Corporation and authorised Australian security equipment distributors.
