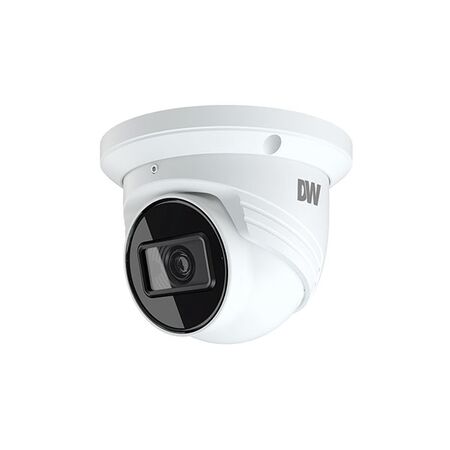

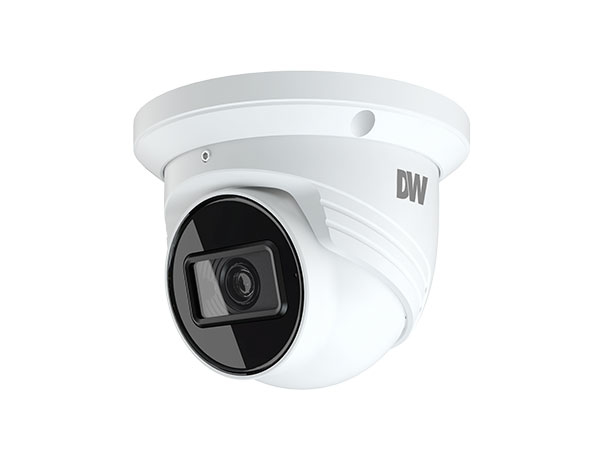

5MP IP Turret Camera 2.8-12mm Varifocal Smart IR 50m IK10 Ness
Ness 5MP IP turret camera features a 2.8-12mm varifocal lens, Smart IR 50m and IK10. Ideal for CCTV installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Ness 123-003, Digital Watchdog DWC-MT95WiATW, 5MP IP Turret CCTV Camera
Technical Specifications
- Image Sensor: 5MP 1/2.7-inch sensor
- Resolution: 5MP with up to 30fps
- Lens: 2.8–12mm motorised varifocal lens with autofocus
- Infrared Range: Smart IR up to 50m
- Video Compression: H.265, H.264 and MJPEG
- Wide Dynamic Range: True WDR, up to 120dB
- Video Analytics: Line crossing, perimeter intrusion, object classification and video tampering detection
- Storage: Micro SD, SDHC or SDXC up to 256GB; card not included
- Audio: Built-in microphone and audio input
- Network: 10/100 Ethernet, IPv4 and IPv6
- Protocols: RTSP, RTP, RTCP, DHCP, NTP, HTTP, HTTPS, ONVIF and 802.1x
- Power Supply: PoE IEEE 802.3af Class 3 or 12V DC; power adaptor not included
- Power Consumption: 9W
- Operating Temperature: -30°C to 60°C
- Operating Humidity: Up to 95% RH, non-condensing
- Housing: Metal turret housing
- Ingress Protection: IP67
- Impact Protection: IK10
- Certifications and Compatibility: FCC, CE, RoHS, PoE, ONVIF and NDAA compliant
- Dimensions (H x L x W): 105mm x 131.1mm x 131.1mm
- Weight: 0.66 kg
Key Features
- 5MP image quality with real-time video capture
- Motorised 2.8–12mm varifocal lens for flexible viewing angles
- Smart IR illumination with a range of up to 50m
- True WDR for improved detail in high-contrast scenes
- IP67-rated housing for dust and water protection
- IK10 impact-resistant turret housing
- 360-degree camera gimbal for view adjustment
- Built-in video analytics for intrusion and object detection
- ONVIF Profile S support for integration with compatible platforms
- PoE operation simplifies network installation
Professional Installation Requirements
- Installation and commissioning should be carried out by a qualified security or CCTV technician. Network configuration, PoE supply, camera positioning and recording-system setup should comply with applicable site requirements and Australian electrical and customer-cabling rules.
Applications
- Residential CCTV surveillance
- Commercial and industrial security systems
- Perimeter monitoring and intrusion detection
- Retail, warehouse and office surveillance
- Outdoor entrances, car parks and building perimeters
Standards & Compliance
- AS/NZS 62676.1.1:2020 – Video surveillance systems for security applications, general system requirements
- AS/NZS 62676.1.2:2020 – Video transmission performance requirements for IP security applications
- AS/NZS 62676.5:2020 – Data specifications and image-quality performance for camera devices
Environmental Benefits
- RoHS compliance supports restriction of hazardous substances in the product
- PoE operation can reduce cabling and power-conversion requirements compared with separate power infrastructure
- IP67 and IK10 protection can extend service life and reduce replacement-related waste
- Metal housing and durable construction support long-term use in demanding installations
Warranty Information
Ness manufactured or supplied products are covered by a 3-year warranty from the date of purchase, subject to Ness warranty conditions. ([ness.com.au](https://ness.com.au/product-warranty?utm_source=openai))
Available Now
Available through Ness and authorised Australian distributors, subject to distributor stock availability.
