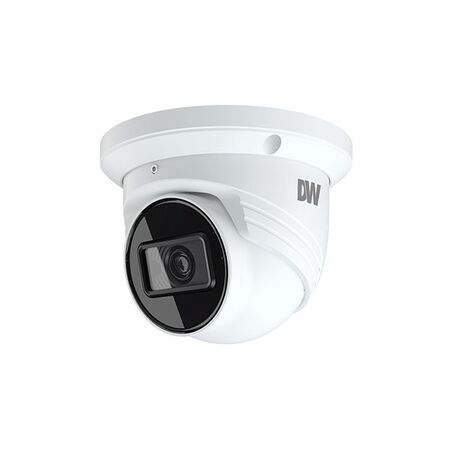

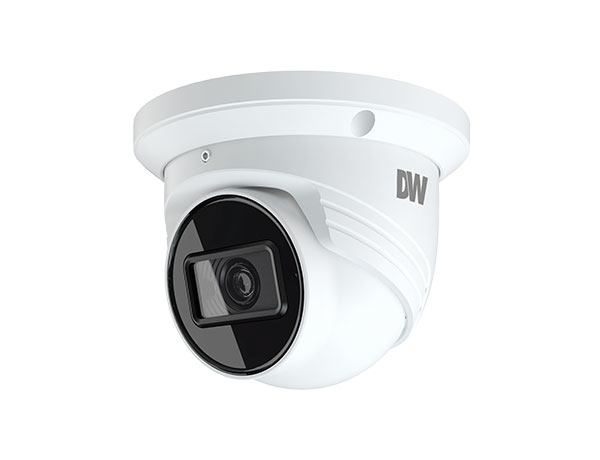

5MP Turret Camera 2.8mm Lens IP67 Smart IR Ness
Ness 5MP turret camera features a 2.8mm lens, IP67 waterproofing and Smart IR. Ideal for CCTV installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Ness 5MP IP Turret Camera, Digital Watchdog MEGApix Turret Camera, 5MP Outdoor CCTV Camera
Technical Specifications
- Image Sensor: 5MP 1/2.7-inch CMOS
- Resolution: 2592 x 1944 pixels
- Lens: 2.8mm fixed lens
- Frame Rate: Up to 30fps; up to 25fps in 50Hz mode
- Night Vision: Smart IR up to 30m
- Video Compression: H.265, H.264 and MJPEG
- Dynamic Range: True WDR
- Power Supply: DC 12V or IEEE 802.3af PoE Class 3
- Power Consumption: Approximately 7W
- Storage: Micro SD, SDHC or SDXC card support
- Audio: Built-in microphone and audio input
- Network Compatibility: ONVIF conformant, Profile S
- Impact Resistance: IK10-rated
- Housing Material: Metal turret housing
- Operating Temperature: -30°C to 60°C
- Ingress Protection: IP67 dust-tight and waterproof
- Certifications: CE, FCC and RoHS
- Security Compliance: NDAA compliant
- Dimensions (H x L x W): 91mm x 118.6mm x 118.6mm
- Weight: 0.46 kg
Key Features
- 5MP image resolution for detailed surveillance footage
- 2.8mm fixed lens suited to wide-area viewing
- Smart IR night vision with an operating range of up to 30m
- IP67-rated housing for outdoor dust and water protection
- IK10 impact-resistant metal turret housing
- True WDR, backlight compensation, 3D digital noise reduction and defogging
- Line-crossing, perimeter-intrusion, tampering and object-classification analytics
- Supports simultaneous dual-stream video transmission
- 360-degree gimbal for flexible camera positioning
- PoE connectivity simplifies installation and cabling
- ONVIF compatibility supports integration with compatible video management systems
Professional Installation Requirements
- Installation should be performed by a qualified CCTV or security technician. Any fixed 230V mains power work must be completed by a licensed electrician. Configure PoE, network access, recording and camera positioning in accordance with the system manufacturer’s instructions.
Applications
- Residential CCTV surveillance
- Retail, office and commercial security monitoring
- Outdoor entry, driveway and perimeter surveillance
- Small business and light industrial security systems
- Integration with ONVIF-compatible NVRs and video management systems
Standards & Compliance
- AS/NZS 62368.1:2026 is the applicable Australian/New Zealand safety standard for audio, video, information and communication technology equipment; specific product compliance to this standard is not stated in the available manufacturer documentation.
Environmental Benefits
- RoHS compliance supports restriction of hazardous substances in the product
- PoE operation can reduce installation material use by combining power and data over one Ethernet cable
- Durable metal housing and IP67 protection can extend service life and reduce replacement waste
- MicroSD recording support can reduce reliance on continuous network bandwidth and additional recording hardware in suitable installations
Warranty Information
3-year warranty from date of purchase for Ness manufactured or supplied products, subject to Ness Corporation warranty terms and exclusions.
Available Now
Available through Ness Corporation and authorised Australian security and electrical distributors.
