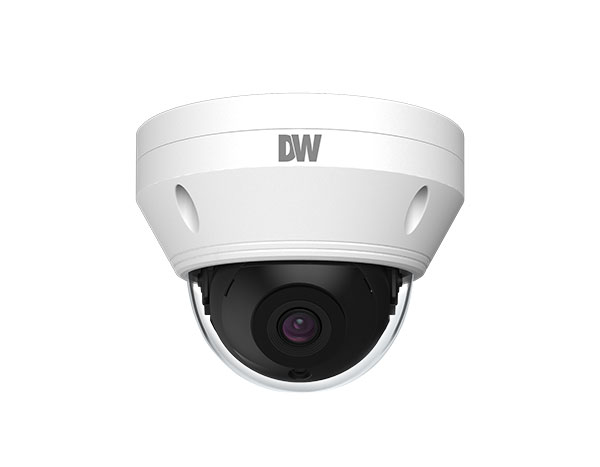

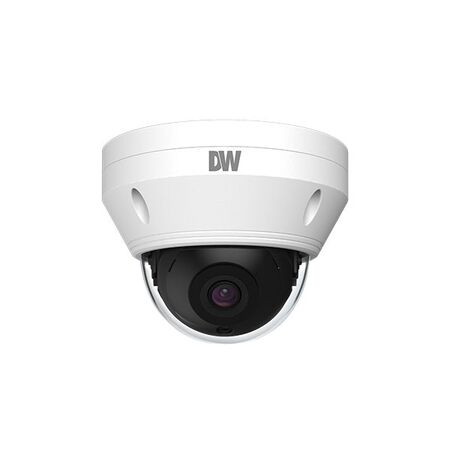

5MP Vandal Dome Camera 2.8mm Lens IP67 Smart IR Ness
Ness 5MP vandal dome camera features a 2.8mm lens, IP67 waterproofing and Smart IR. Ideal for CCTV installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: DWC-MV95Wi28TW, 5MP IP Vandal Dome Camera, MEGApix 5MP Network Dome Camera
Technical Specifications
- Image Sensor: 5MP 1/2.7-inch CMOS
- Resolution: 2592 x 1944 pixels
- Lens: 2.8mm fixed lens, F1.6
- Field of View: 98.5°
- Night Vision: 100ft Smart IR range
- Video Compression: H.265, H.264 and MJPEG
- Frame Rate: Up to 30fps
- Wide Dynamic Range: True WDR, up to 120dB
- Storage: MicroSD, SDHC or SDXC up to 256GB; card not included
- Network: 10/100 Ethernet, IPv4 and IPv6
- Compatibility: ONVIF Profile S
- Power Supply: 12V DC or IEEE 802.3af Class 3 PoE
- Power Consumption: 6W
- Housing: Metal vandal-resistant housing with polycarbonate dome
- Environmental Rating: IP67
- Impact Rating: IK10
- Operating Temperature: -30°C to 60°C
- Certifications: CE, FCC, RoHS, PoE and ONVIF
- Dimensions (H x L x W): 90mm x 116.6mm x 116.6mm
- Weight: 0.65 kg
Key Features
- 5MP imaging with real-time video up to 30fps
- 2.8mm fixed lens providing a 98.5° field of view
- 100ft Smart IR for low-light and night-time monitoring
- True WDR, 3D digital noise reduction, backlight compensation and defogging
- Line-crossing, perimeter-intrusion and object-classification analytics
- Built-in microphone, alarm input and relay output
- MicroSD recording support up to 256GB
- IP67 dust-tight and water-resistant housing
- IK10 impact-resistant vandal dome construction
- PoE and 12V DC power options
- NDAA-compliant and ONVIF-conformant
Professional Installation Requirements
- Installation should be performed by a suitably qualified security or networking installer. Configure the camera, PoE supply, network connection and recording system in accordance with the system design and applicable CCTV requirements.
Applications
- Indoor and outdoor CCTV surveillance
- Residential security monitoring
- Commercial premises and offices
- Retail, warehouse and industrial surveillance
- Entryways, car parks and perimeter monitoring
- Integration with ONVIF-compatible NVRs and video management systems
Standards & Compliance
- Applicable CCTV system requirements: AS/NZS 62676.1.1:2020
Environmental Benefits
- RoHS-listed construction supports restriction of hazardous substances
- PoE operation can simplify cabling and reduce the need for separate camera power infrastructure
- Durable IP67 and IK10 housing can extend service life and reduce replacement waste
- Low 6W power consumption supports efficient continuous surveillance operation
Warranty Information
3-year warranty from date of purchase for Digital Watchdog cameras, recorders and servers supplied by Ness Corporation.
Available Now
Available through Ness Corporation and authorised Australian security-equipment distributors.
