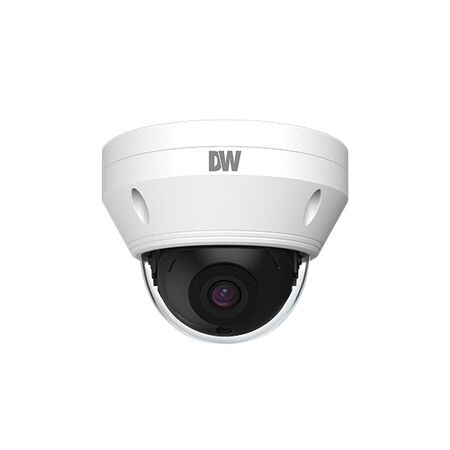

5MP Vandal Dome Camera 360 Degree Gimbal IP67 Smart IR Ness
Ness 5MP vandal dome camera features a 360 degree gimbal, IP67 waterproofing and Smart IR. Ideal for CCTV installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Digital Watchdog DWC-MV95Wi28TW, 5MP IP Vandal Dome Camera, MEGApix 5MP Dome Camera
Technical Specifications
- Model: DWC-MV95Wi28TW
- Image Sensor: 5MP 1/2.7-inch CMOS
- Resolution: 2592 x 1944 pixels
- Lens: 2.8mm fixed lens, F1.6
- Field of View: 98.5°
- Frame Rate: Up to 30fps
- Infrared Range: Up to 30m
- Video Compression: H.265, H.264 and MJPEG
- Wide Dynamic Range: True WDR, up to 120dB
- Network: 10/100 Ethernet, IPv4 and IPv6
- Storage: Micro SD, SDHC or SDXC card slot; card not included
- Audio: Built-in microphone, audio input and output
- Alarm I/O: 1 alarm input and 1 relay output
- Power Supply: 12V DC or IEEE 802.3af Class 3 PoE
- Power Consumption: 6W
- Ingress Protection: IP67
- Impact Protection: IK10
- Operating Temperature: -30°C to 60°C
- Certifications: CE, FCC and RoHS
- Interoperability: ONVIF Profile S
- Housing: Metal vandal-resistant housing with polycarbonate dome
- Dimensions (H x L x W): 90mm x 116.6mm x 116.6mm
- Weight: 0.65 kg
Key Features
- 5MP image resolution with real-time video up to 30fps
- 360° camera gimbal for flexible view adjustment during installation
- Smart IR illumination with up to 30m range
- IP67 dust-tight and water-resistant construction
- IK10 impact-resistant vandal-resistant housing
- True WDR and 3D digital noise reduction for challenging lighting conditions
- Line-crossing, perimeter-intrusion and object-classification analytics
- Video tampering detection for scene change, blur and abnormal colour
- Dual-stream video using H.265, H.264 or MJPEG codecs
- Supports PoE or 12V DC operation
- ONVIF Profile S compatible for integration with supported VMS and NVR systems
- Built-in microphone, alarm input, relay output and microSD recording
Professional Installation Requirements
- Installation should be performed by a qualified security or CCTV technician. Fixed customer cabling, network infrastructure and any mains-powered equipment used with the camera must be installed in accordance with applicable Australian requirements, including AS/NZS 3000 where relevant.
Applications
- Indoor and outdoor CCTV surveillance
- Residential security systems
- Commercial premises and retail security
- Warehouses, workshops and industrial sites
- Entry points, corridors, car parks and perimeter monitoring
- Network video recorder and video management system installations
Standards & Compliance
- Relevant CCTV system framework: AS/NZS 62676.1.1:2020
- Relevant camera image-quality framework: AS/NZS 62676.5:2020
Environmental Benefits
- RoHS compliance supports restriction of hazardous substances in the product
- IP67 and IK10 construction can help extend service life in exposed or high-risk installations, reducing premature replacement waste
- PoE operation allows power and data to be delivered over a single network cable, reducing installation cabling and associated material use
Warranty Information
3-year warranty. Ness Corporation's general warranty policy states that Ness manufactured or supplied products are covered for 3 years from the date of purchase, unless otherwise specified.
Available Now
Available through Ness Corporation and authorised Australian security-equipment distributors, subject to current stock.
